Back Door Glass: Components

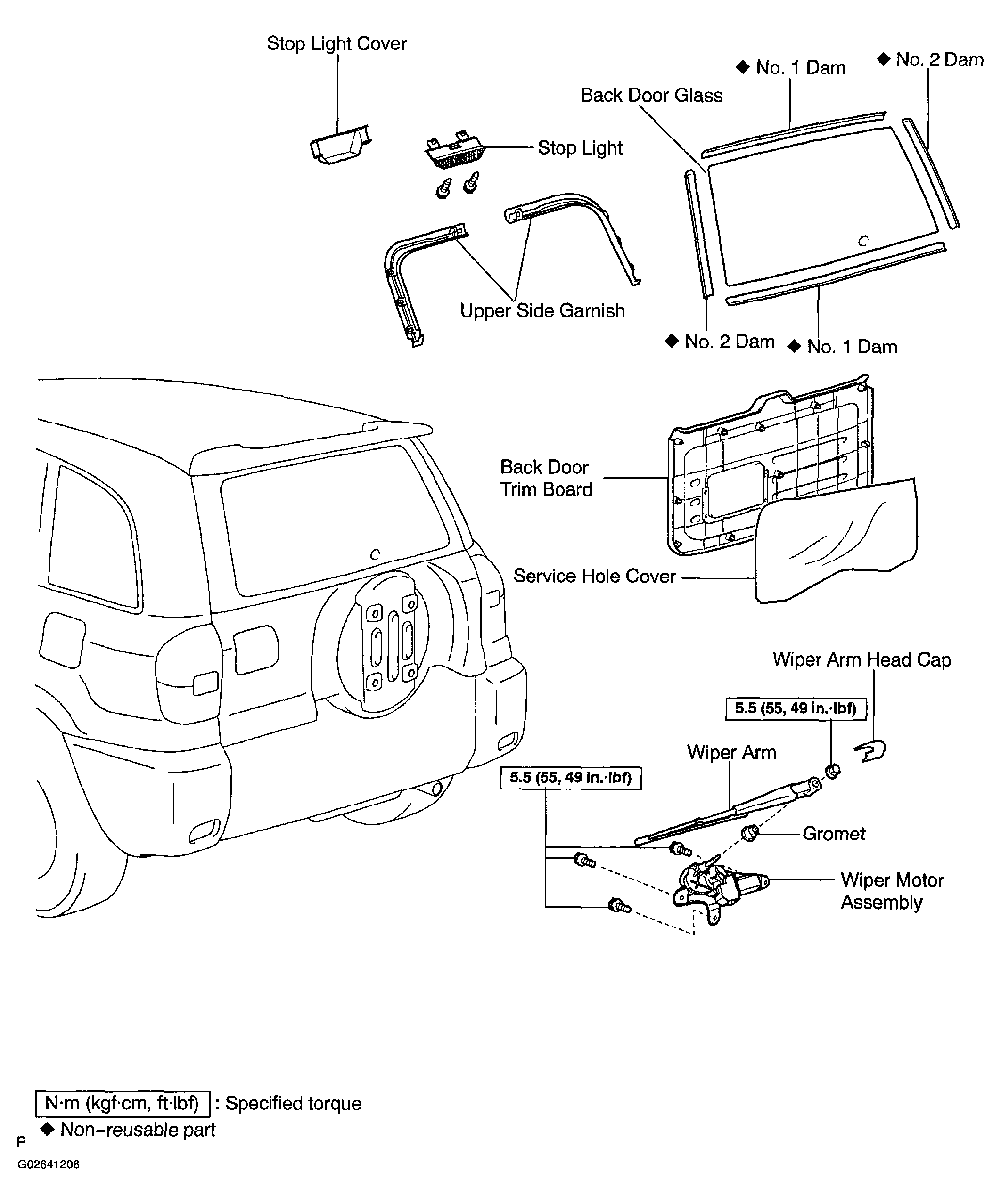

Fig 1: Back Door Glass Replacement Components With Torque Specifications
G02641208Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
