Manual Transaxle Assembly: Components

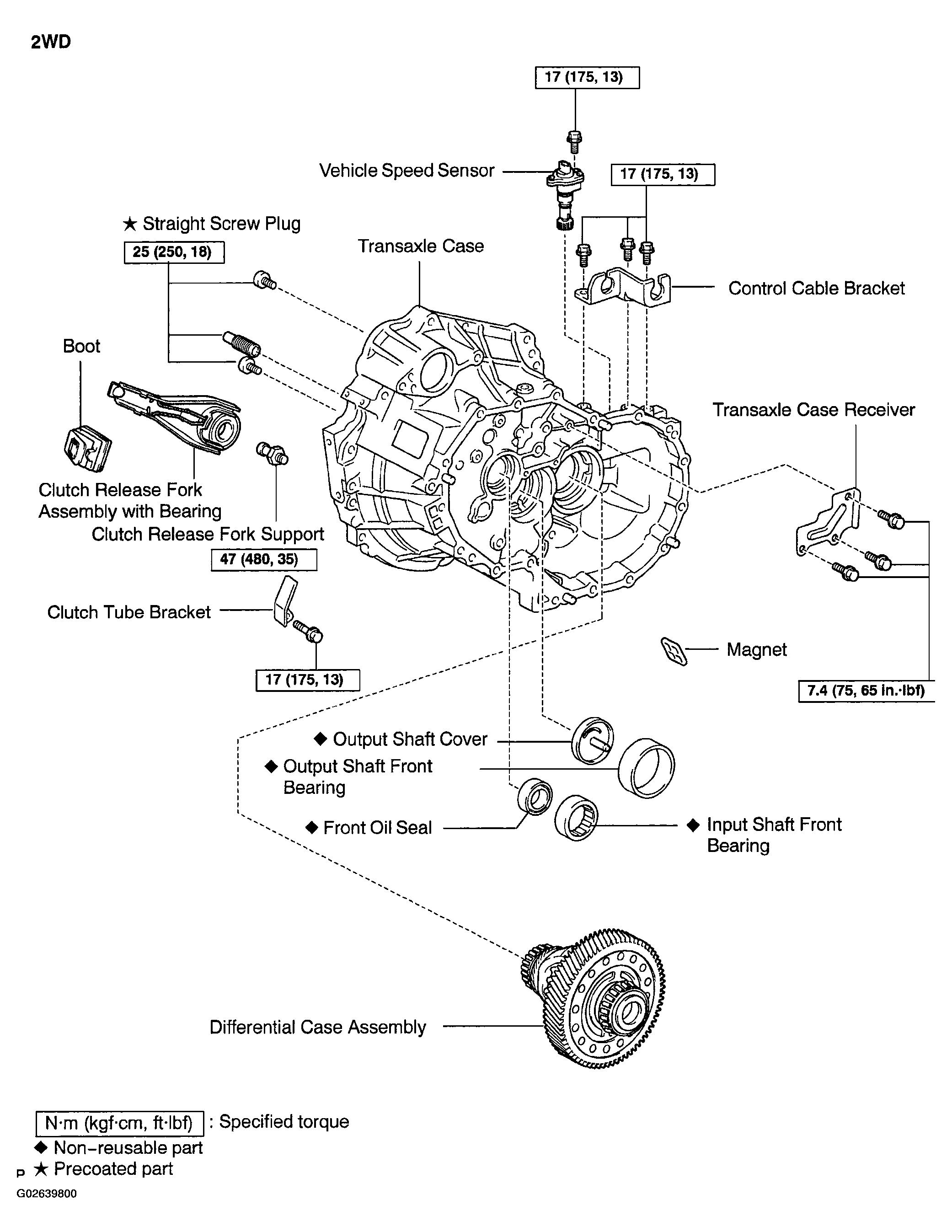

Fig 1: Exploded View Of Manual Transaxle Assembly & Torque Specifications (1 Of 5)
G02639800Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

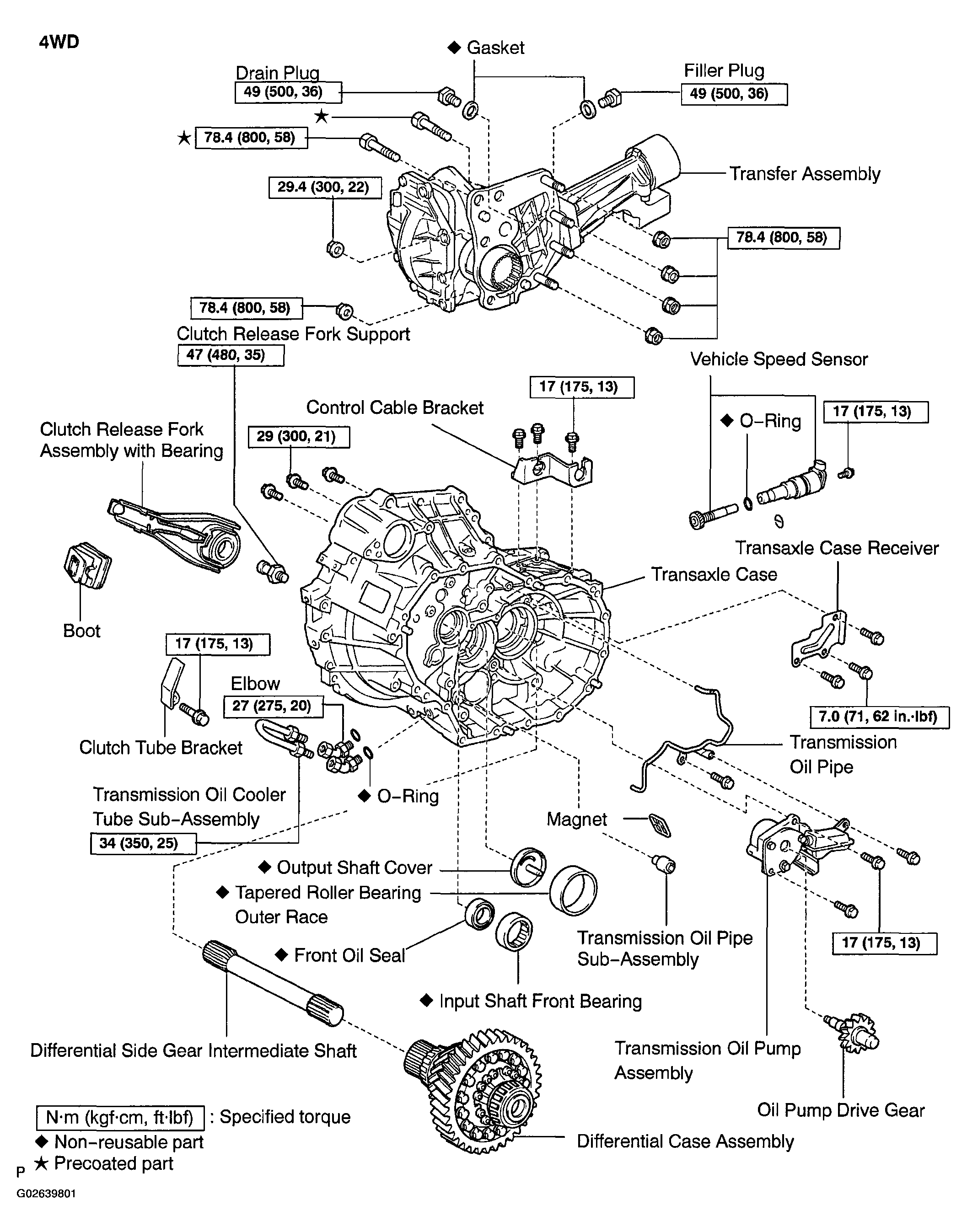

Fig 2: Exploded View Of Manual Transaxle Assembly & Torque Specifications (2 Of 5)
G02639801Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

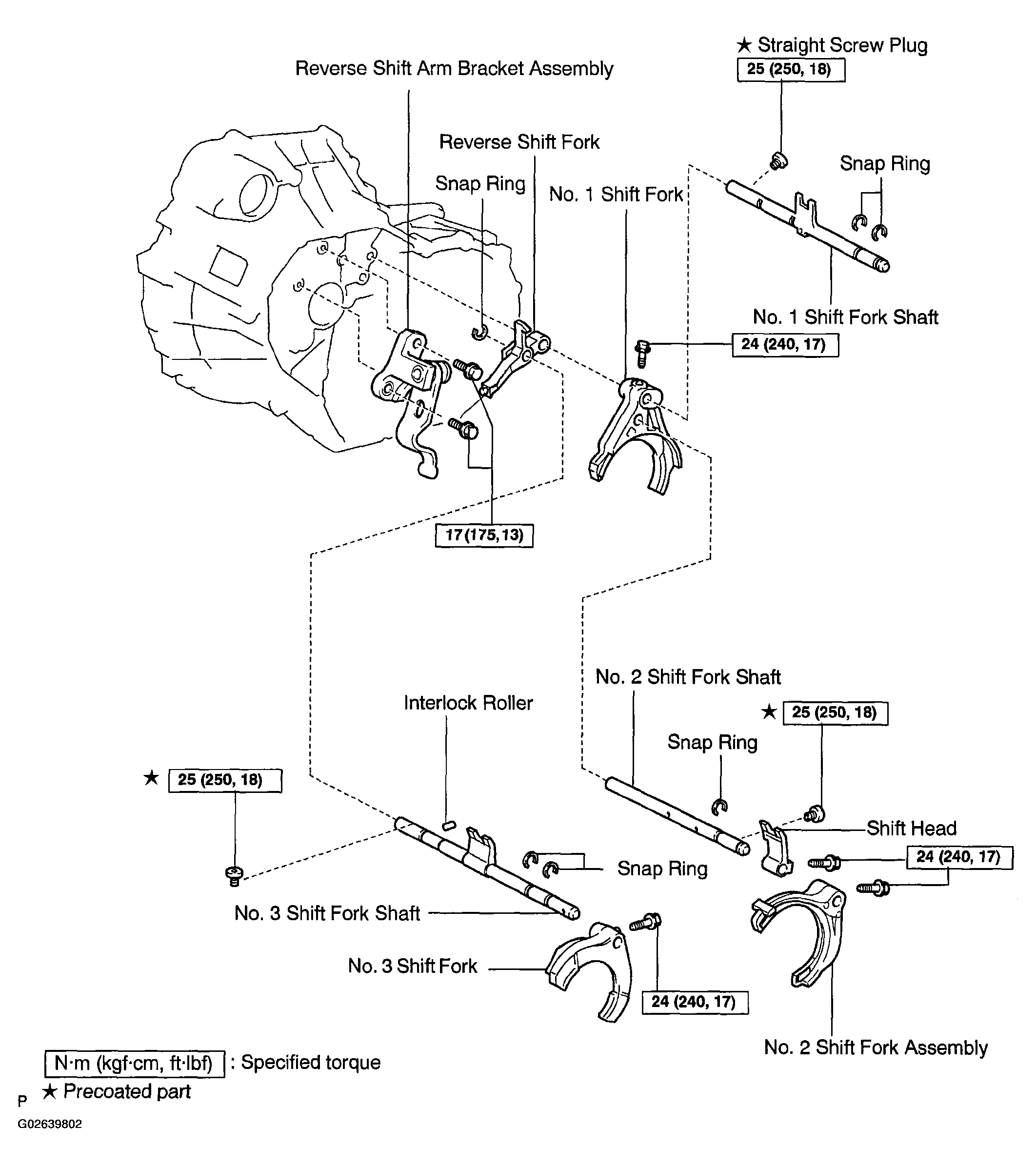

Fig 3: Exploded View Of Manual Transaxle Assembly & Torque Specifications (3 Of 5)
G02639802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

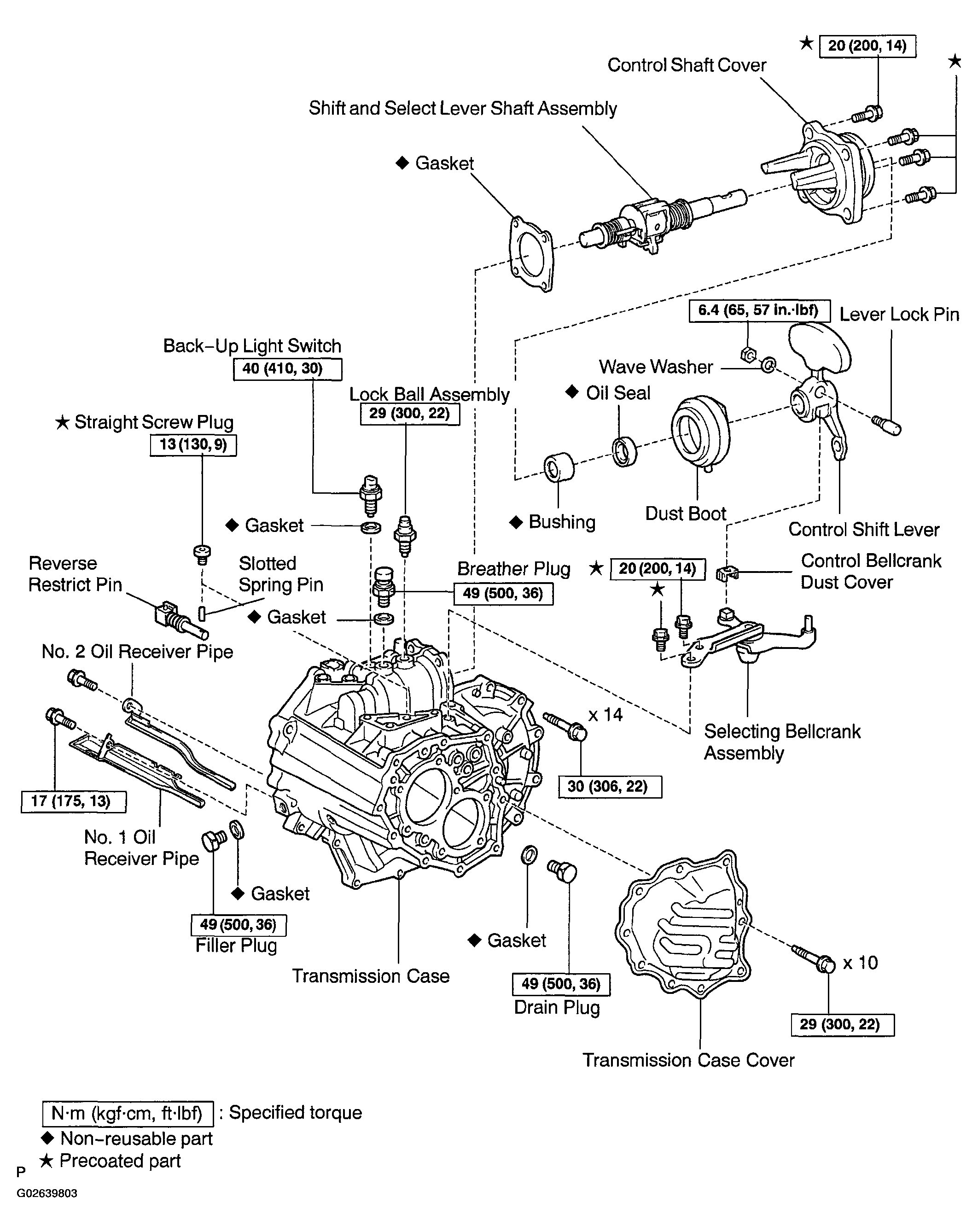

Fig 4: Exploded View Of Manual Transaxle Assembly & Torque Specifications (4 Of 5)
G02639803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

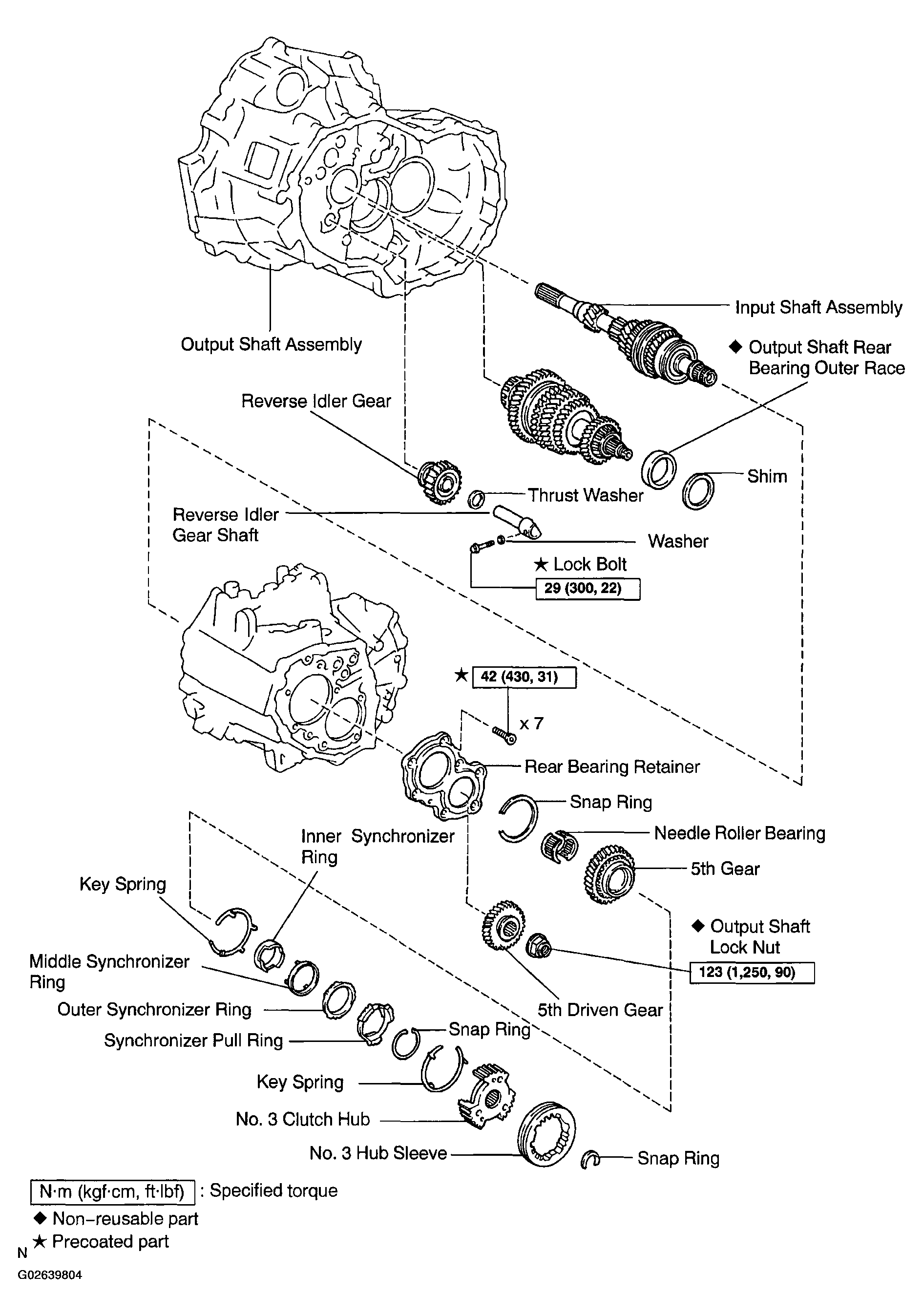

Fig 5: Exploded View Of Manual Transaxle Assembly & Torque Specifications (5 Of 5)
G02639804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
