Starting System: Starter: Components

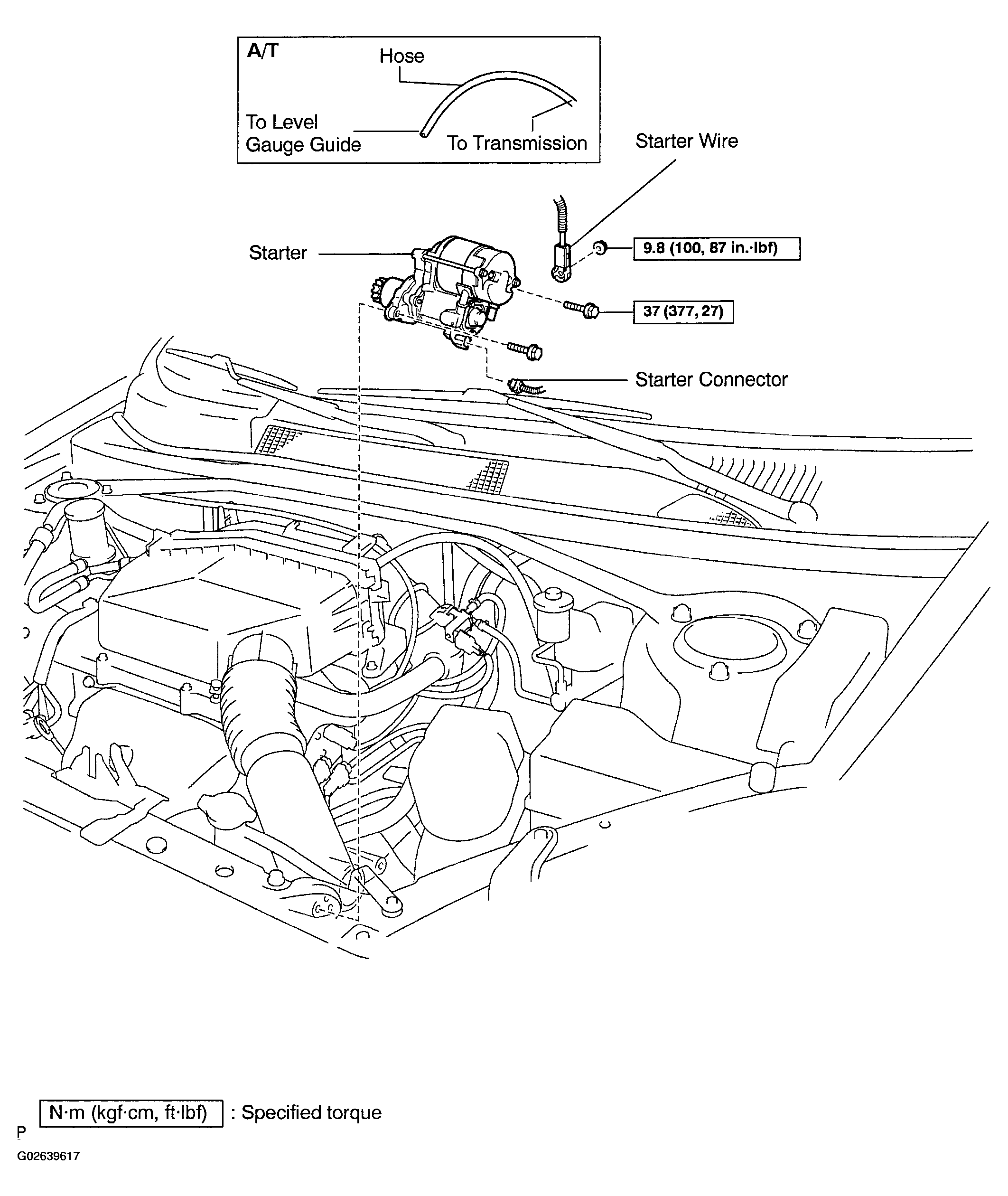

Fig 1: Starter Replacement Components With Torque Specifications (1 Of 2)
G02639617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

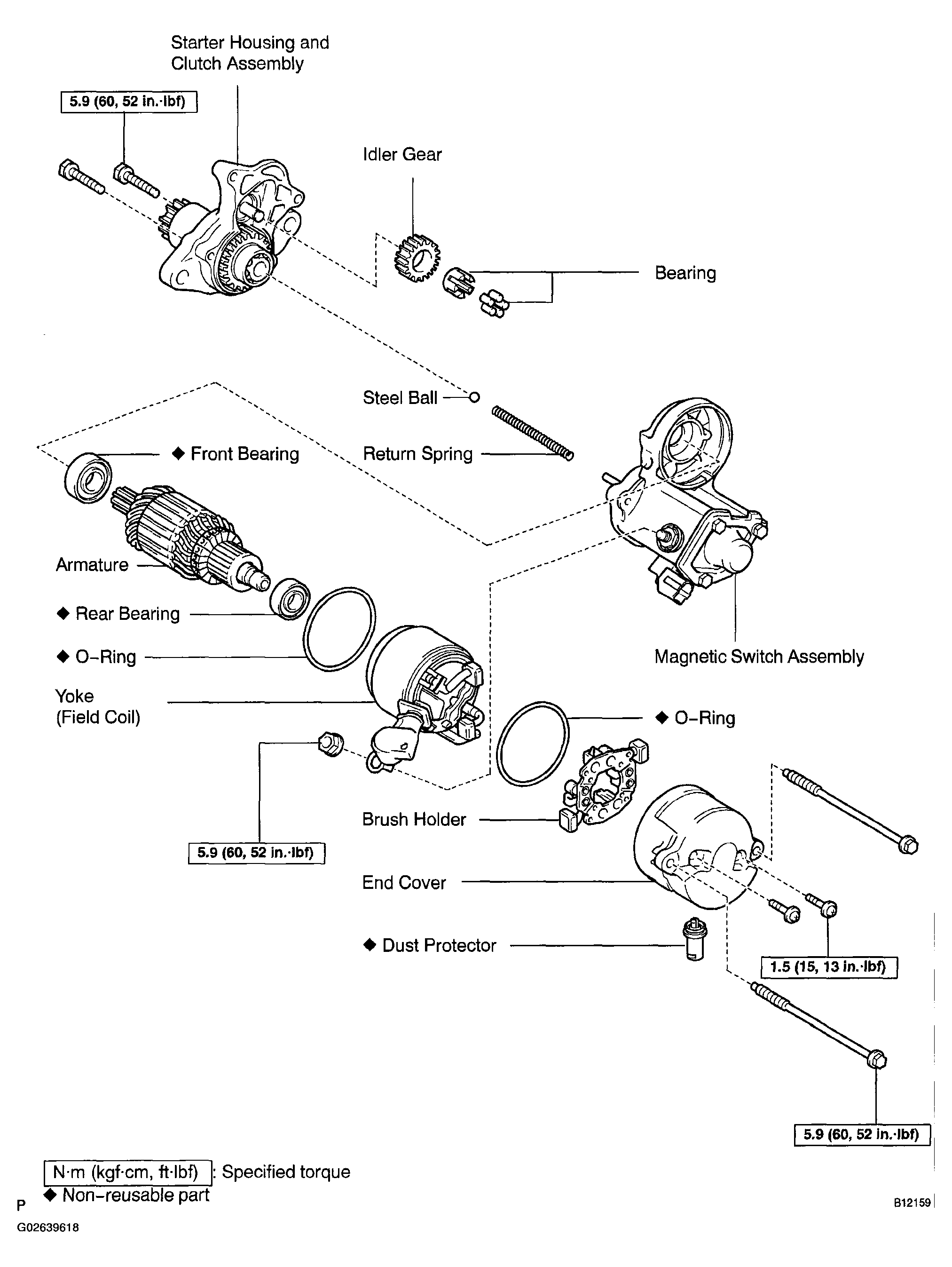

Fig 2: Starter Replacement Components With Torque Specifications (2 Of 2)
G02639618Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

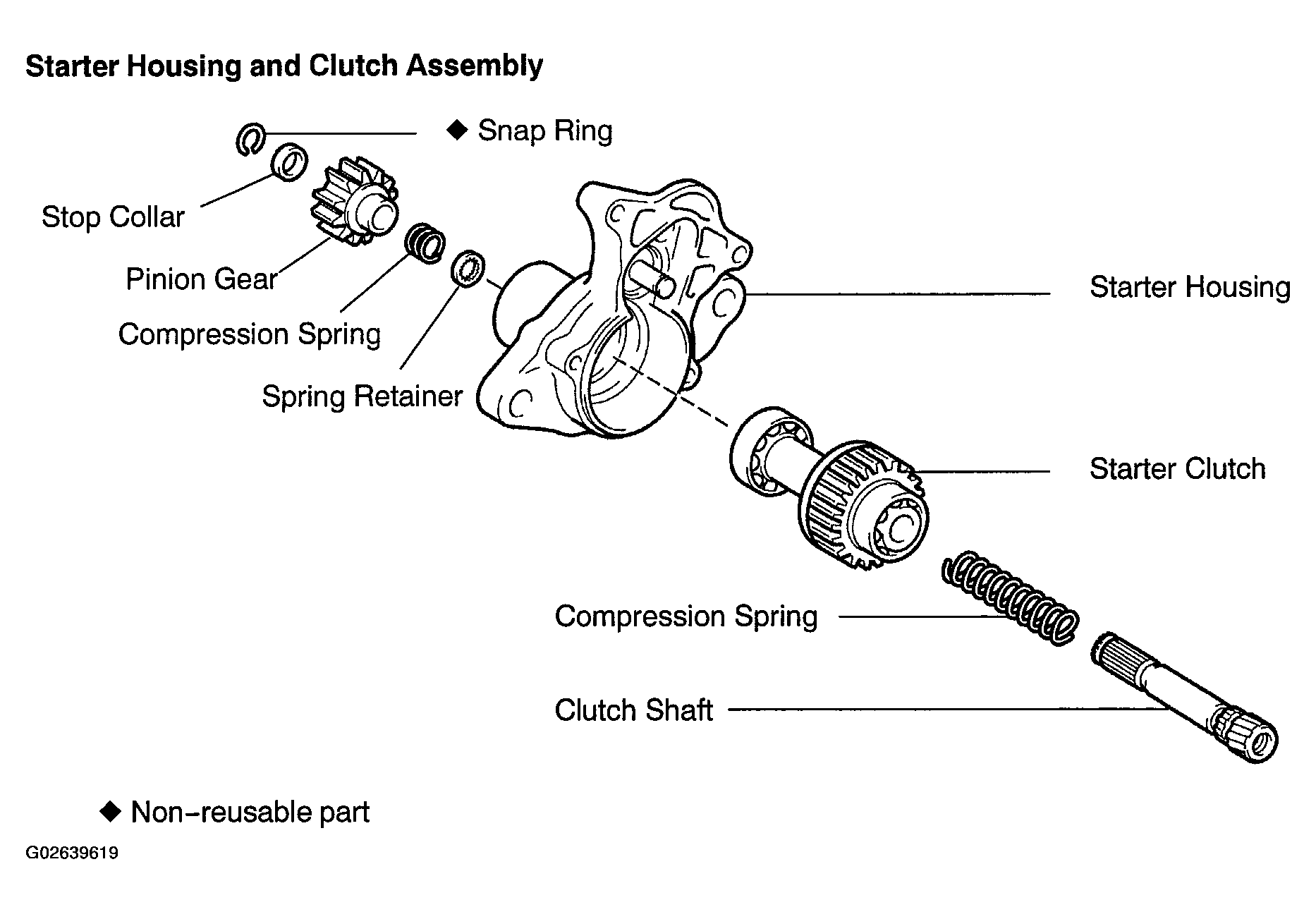

Fig 3: Identifying Starter Housing And Clutch Assembly
G02639619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

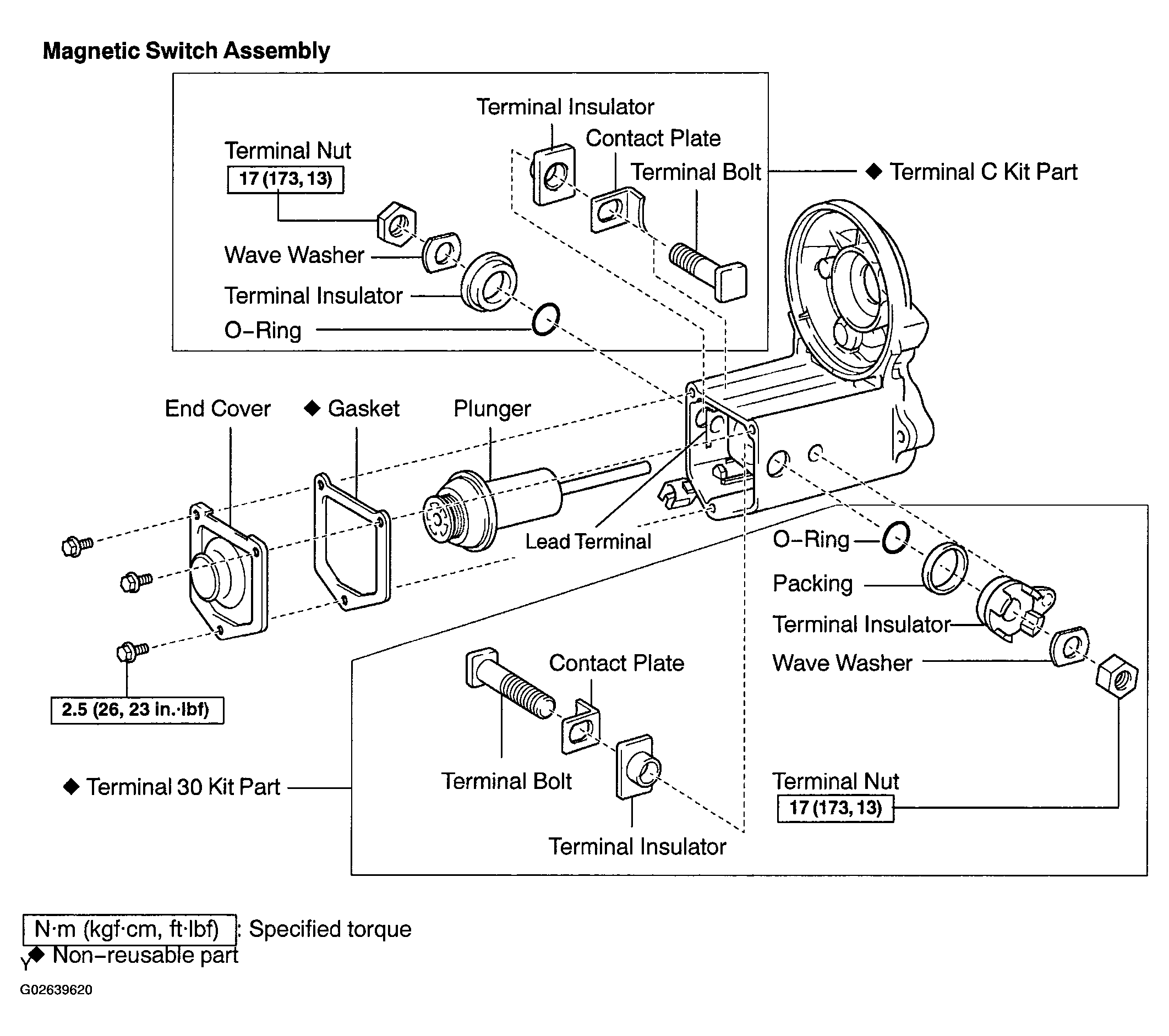

Fig 4: Magnetic Switch Assembly With Torque Specifications
G02639620Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
