Fuel Pump: Reassembly

1. Install the 2 springs and suction plate No.2 to the suction plate No.1.
2. Using a needle-nose pliers, install the 2 new E-rings to the suction plate No.2.
   Fig 1: Installing E-Rings To Suction Plate No.2

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

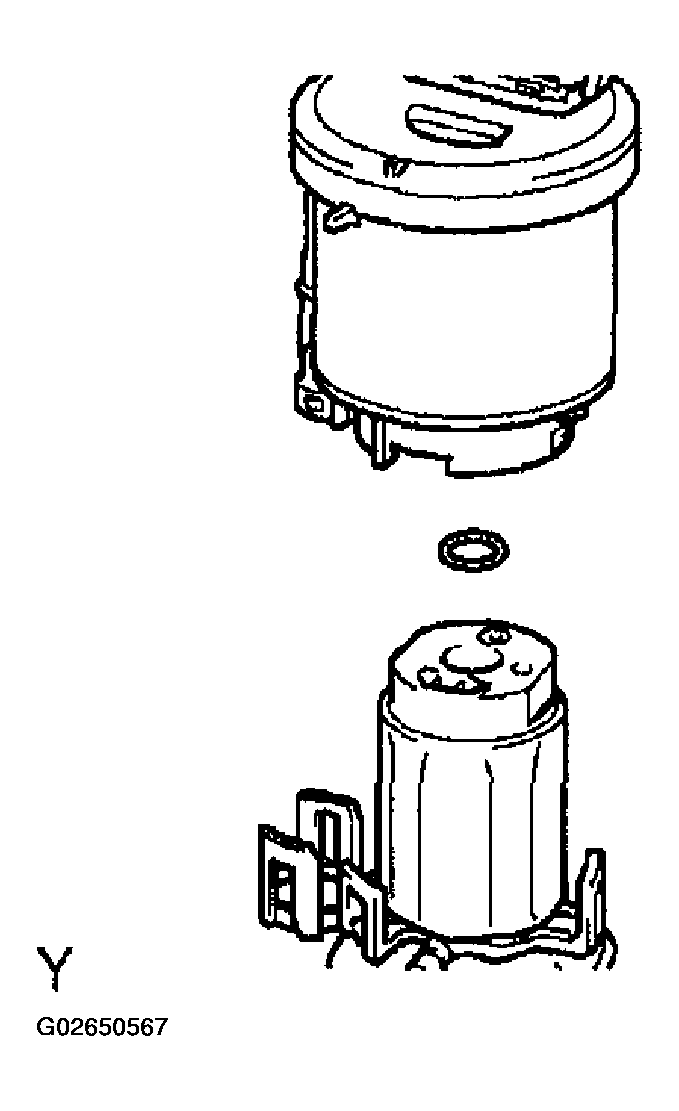

1. Apply a light coat of gasoline or spindle oil to a new O-ring, and install it to the fuel pump.
   Fig 2: Installing O-Ring To Fuel Pump

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

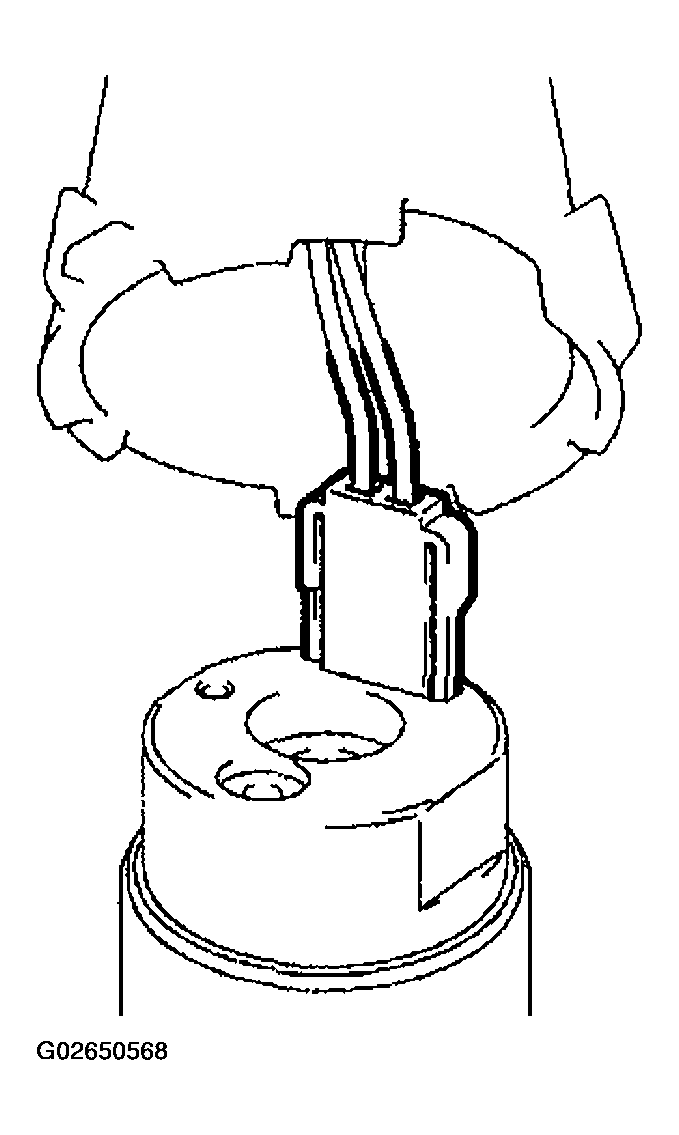

2. Connect the fuel pump harness connector to the fuel pump.
   Fig 3: Connecting Fuel Pump Harness Connector To Fuel Pump

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the fuel pump with the suction filter to the fuel filter.
   Fig 4: Installing Fuel Pump With Suction Filter To Fuel Filter

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install the fuel filter to the fuel sub-tank.

Fig 5: Installing Fuel Filter To Fuel Sub-Tank

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

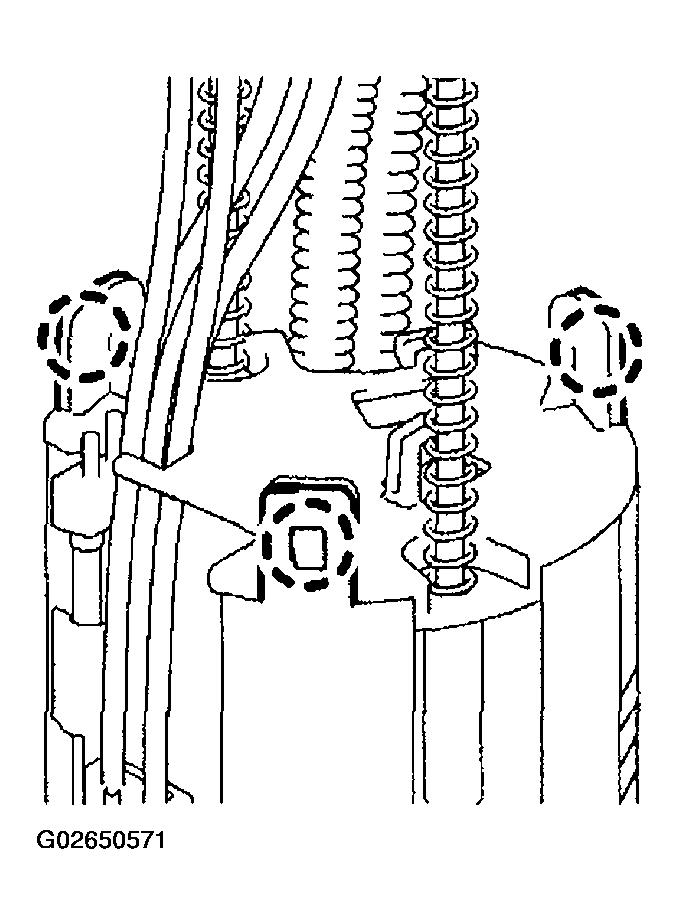

1. Connect the fuel suction plate No.2 to the fuel sub-tank with the 3 snap-claws engaged.
   Fig 6: Installing Snap-Claws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

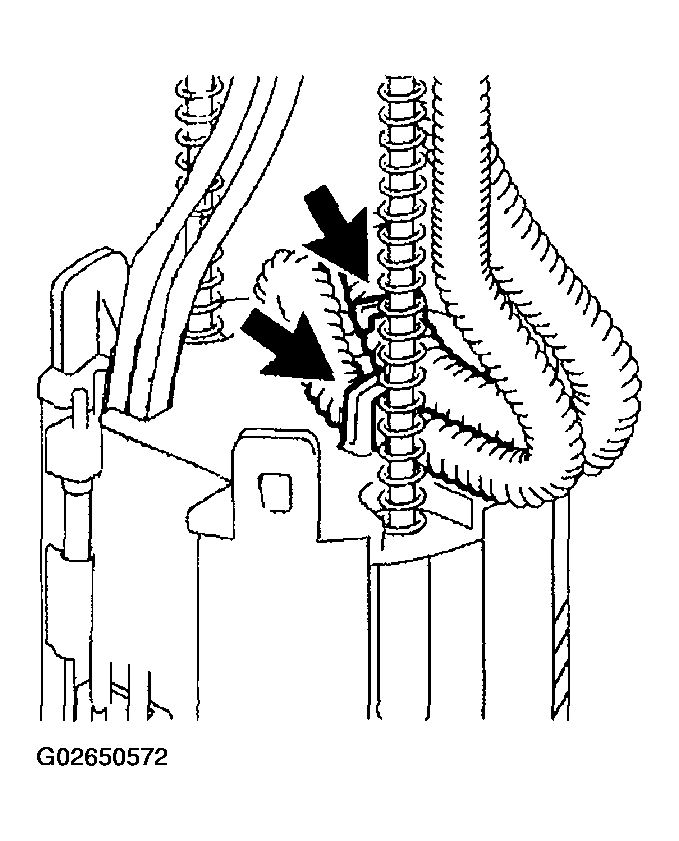

2. Connect the 2 tubes to the tube clamps.
   Fig 7: Connecting Tubes To Tube Clamps

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the suction filter hose to the fuel sub-tank.
   Fig 8: Connecting Suction Filter Hose To Fuel Sub-Tank

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

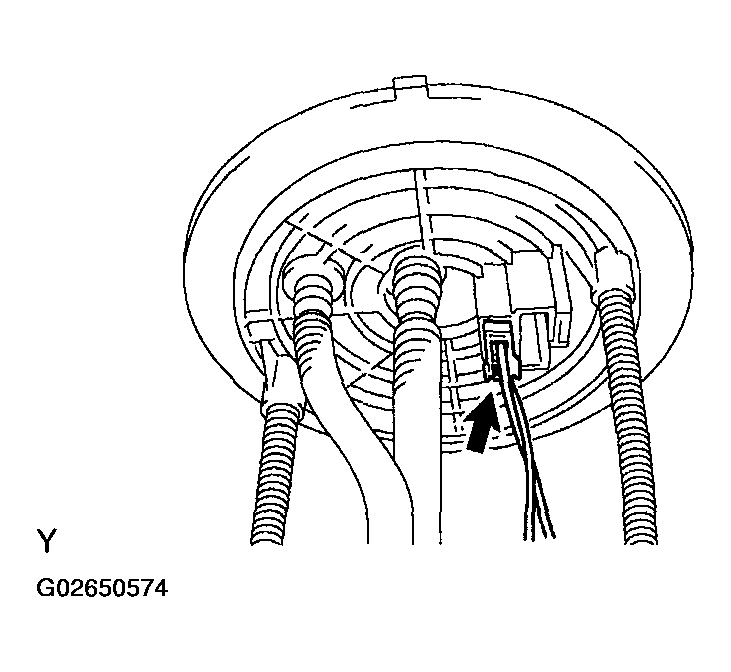

4. Connect the fuel pump harness connector to the fuel suction plate No.1.
   Fig 9: Connecting Fuel Pump Harness Connector To Fuel Suction Plate No.1

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

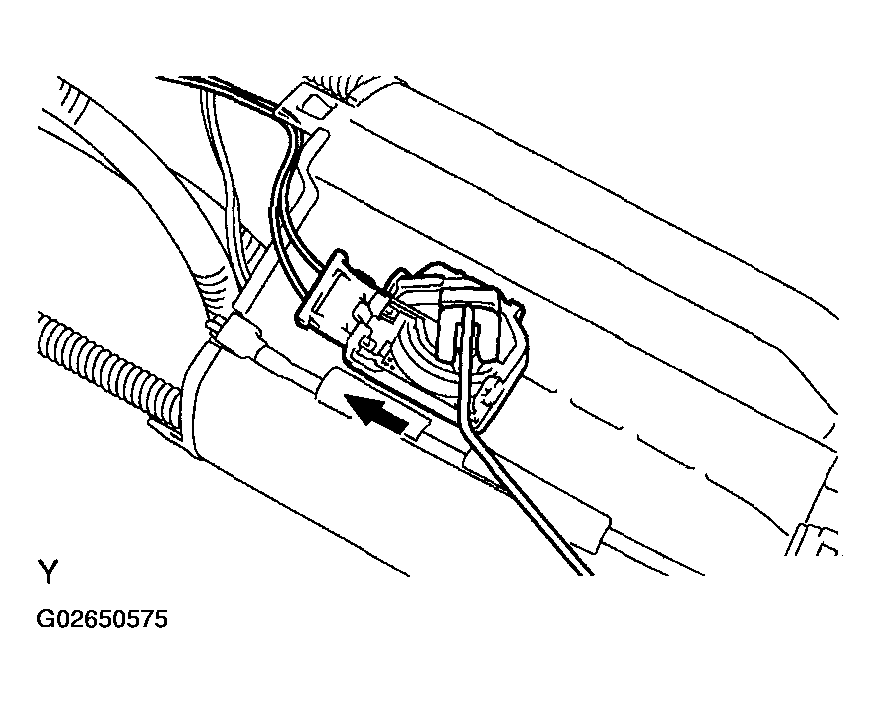

1. Install the fuel sender gauge to the fuel suction support.
   Fig 10: Installing Fuel Sender Gauge To Fuel Suction Support

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

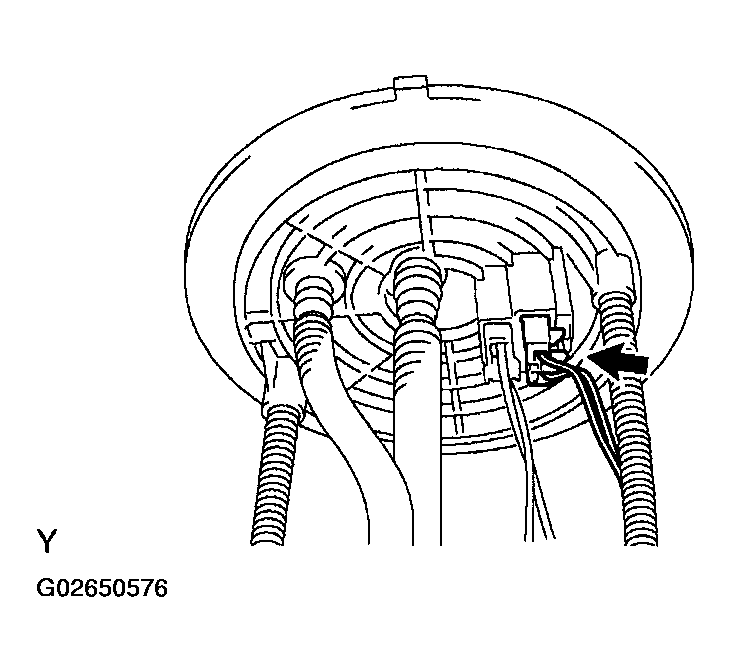

2. Connect the sender gauge connector to the fuel suction plate No.1.
   Fig 11: Connecting Sender Gauge Connector To Fuel Suction Plate No.1

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
