Throttle Body: Installation

  1. INSTALL THROTTLE BODY
    1. Install the throttle body with the nut and 3 bolts.

      Torque: 14 N.m (143 kgf.cm, 10 ft.lbf)

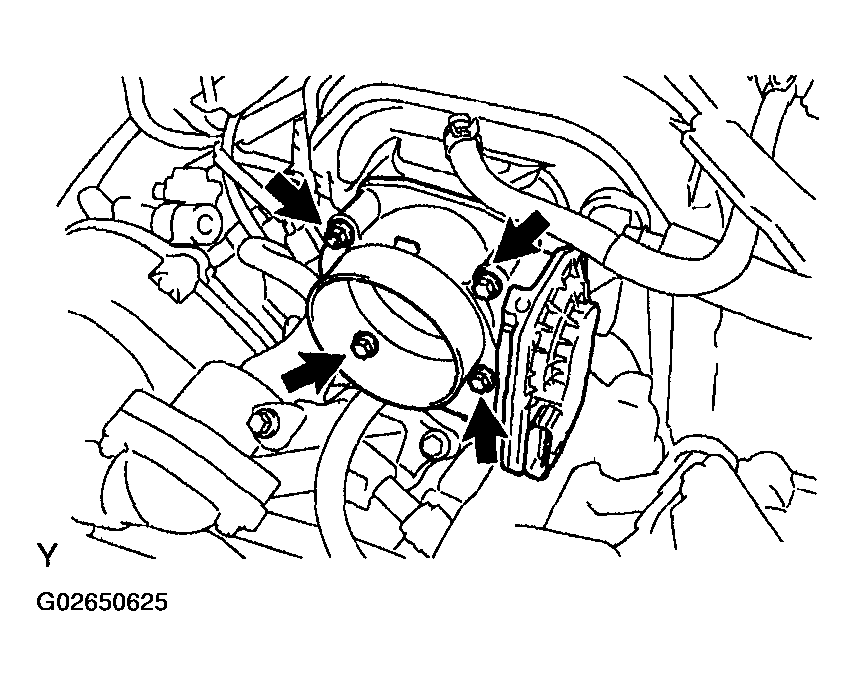

      Fig 1: Installing Throttle Body
      G02650625Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the 2 water bypass hoses to the throttle body.

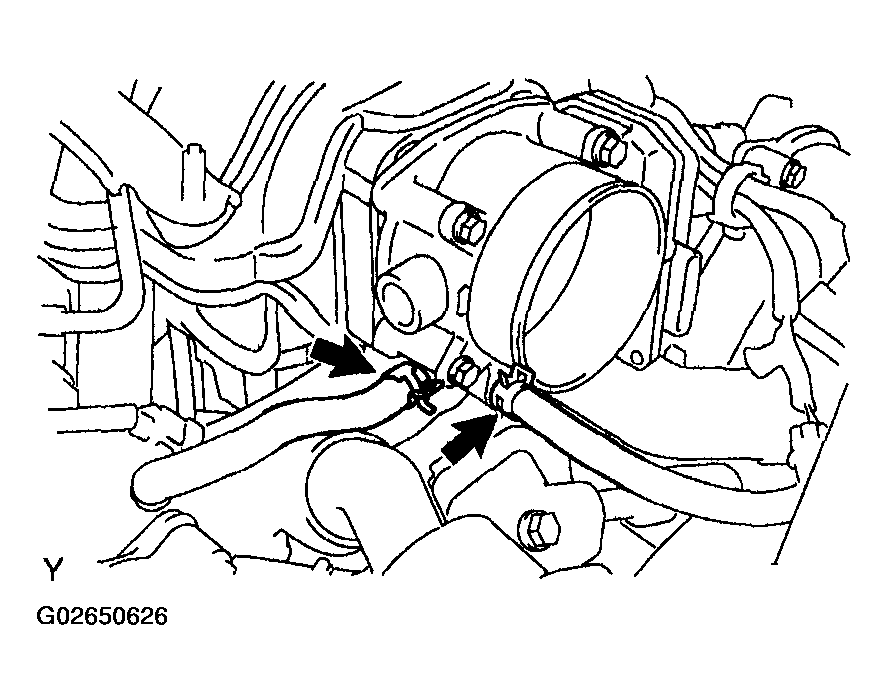

      3. Fig 2: Connecting Water Bypass Hoses To Throttle Body
      G02650626Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the throttle control connector.
  2. INSTALL INTAKE AIR CONNECTOR
  3. FILL WITH ENGINE COOLANT (See  REPLACEMENT  )
  4. START ENGINE AND CHECK FOR ENGINE COOLANT LEAKS
  5. INSTALL THROTTLE BODY COVER
