Ignition Coil: Removal

Remove the bolt, and pull out the ignition coil (with igniter). Remove the 8 ignition coils (with igniter).

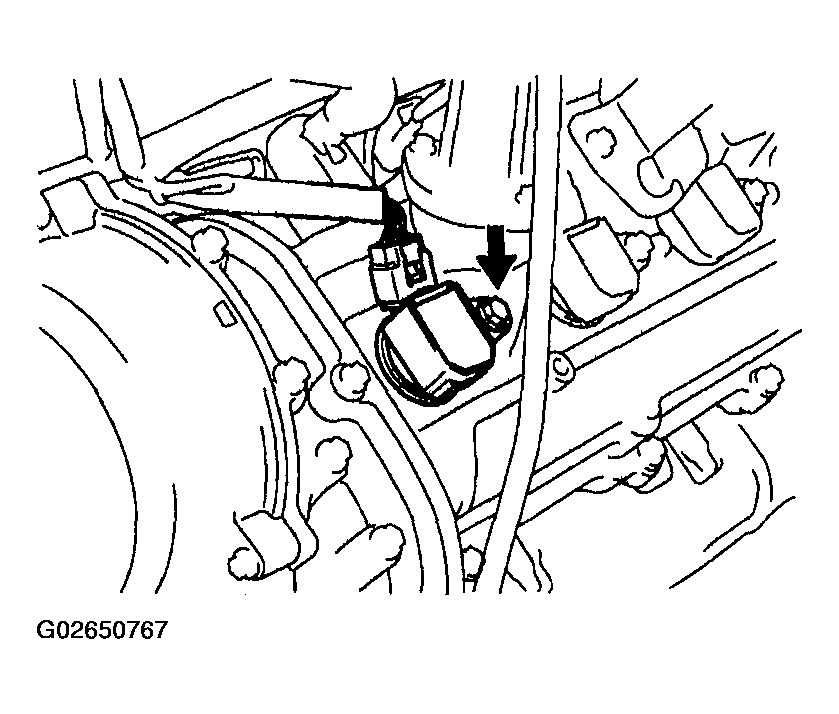

Fig 1: Removing Ignition Coils

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
