Data List / Active Test

DATA LIST
HINT:

By reading the DATA LIST displayed on a hand-held tester, you can check values, including those of the switches, sensors, and actuators, without removing any parts. Reading the DATA LIST as the first step of troubleshooting is one method of shortening diagnostic time.

NOTE: In the table below, the values listed under Normal Conditions are for reference only. Do not depend solely on these values when determining whether or not a part is faulty.
1. Warm up the engine.
2. Turn the ignition switch to OFF.
3. Connect a hand-held tester to the DLC3.
4. Turn the ignition switch to ON.
5. Turn the tester ON.
6. Select the following menu items: DIAGNOSIS / ENHANCED OBD II / DATA LIST.
7. Check the values by referring to the table below.

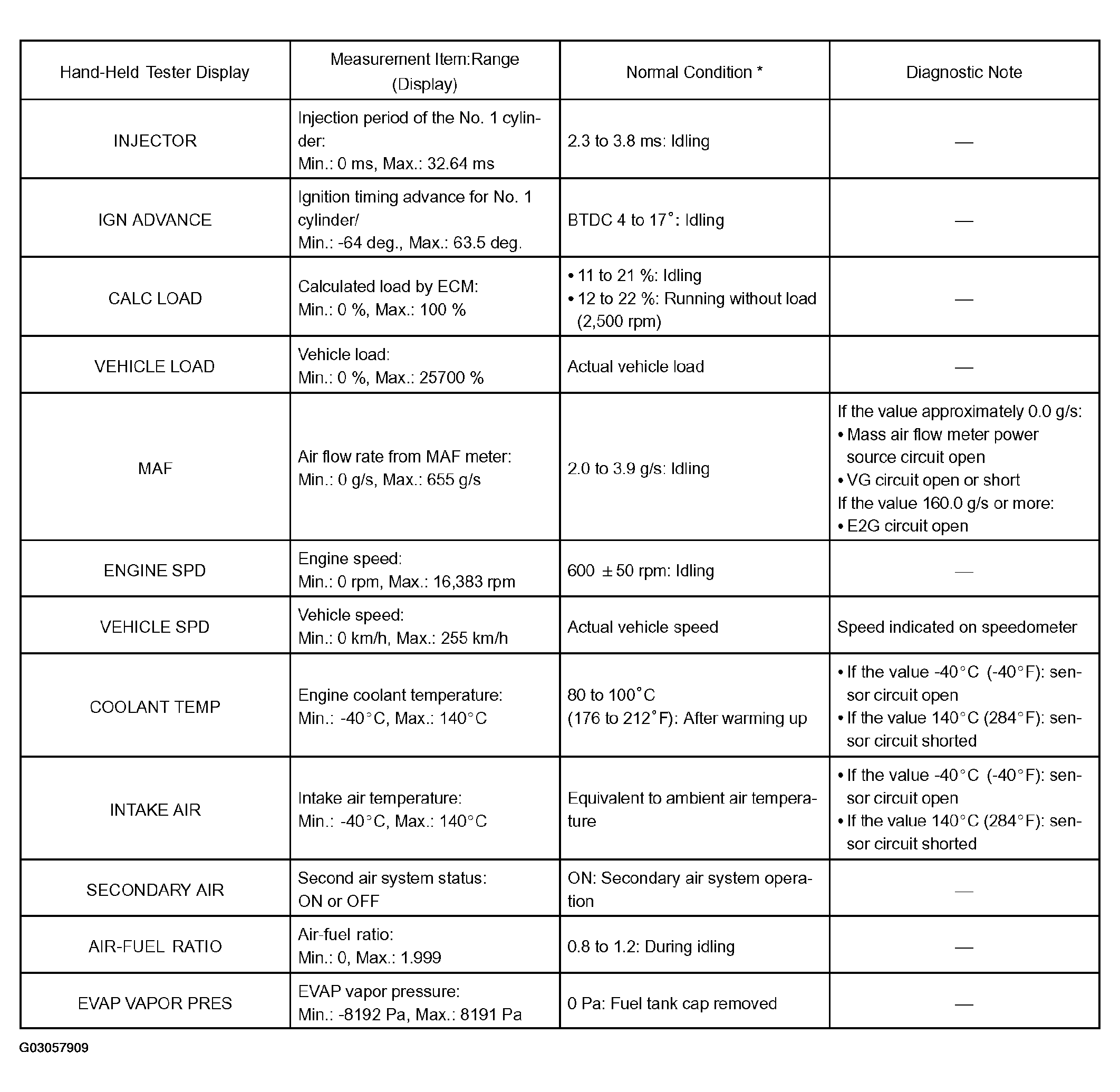

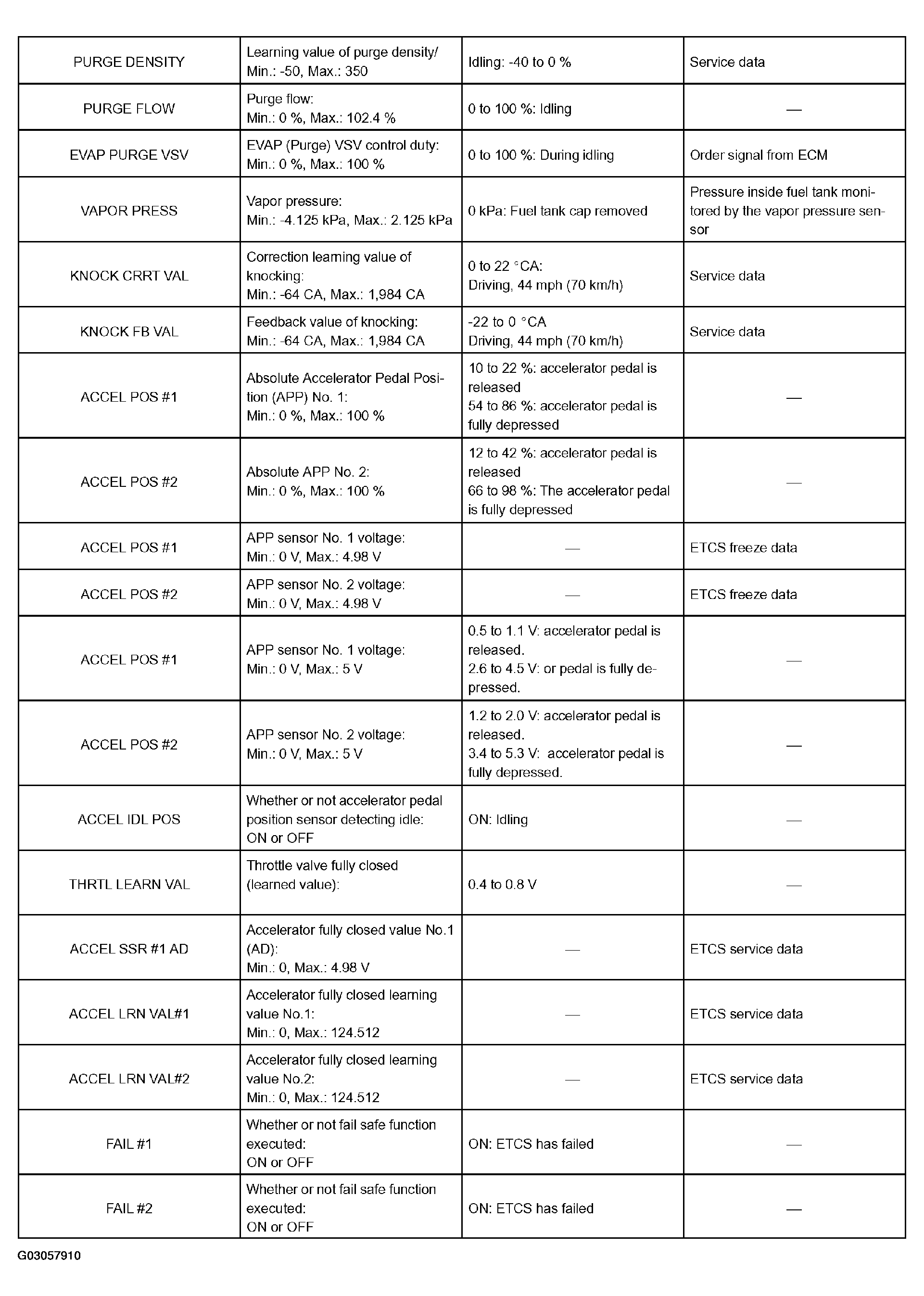

  Fig 1: Hand-Held Tester Data List Description (1 Of 7)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

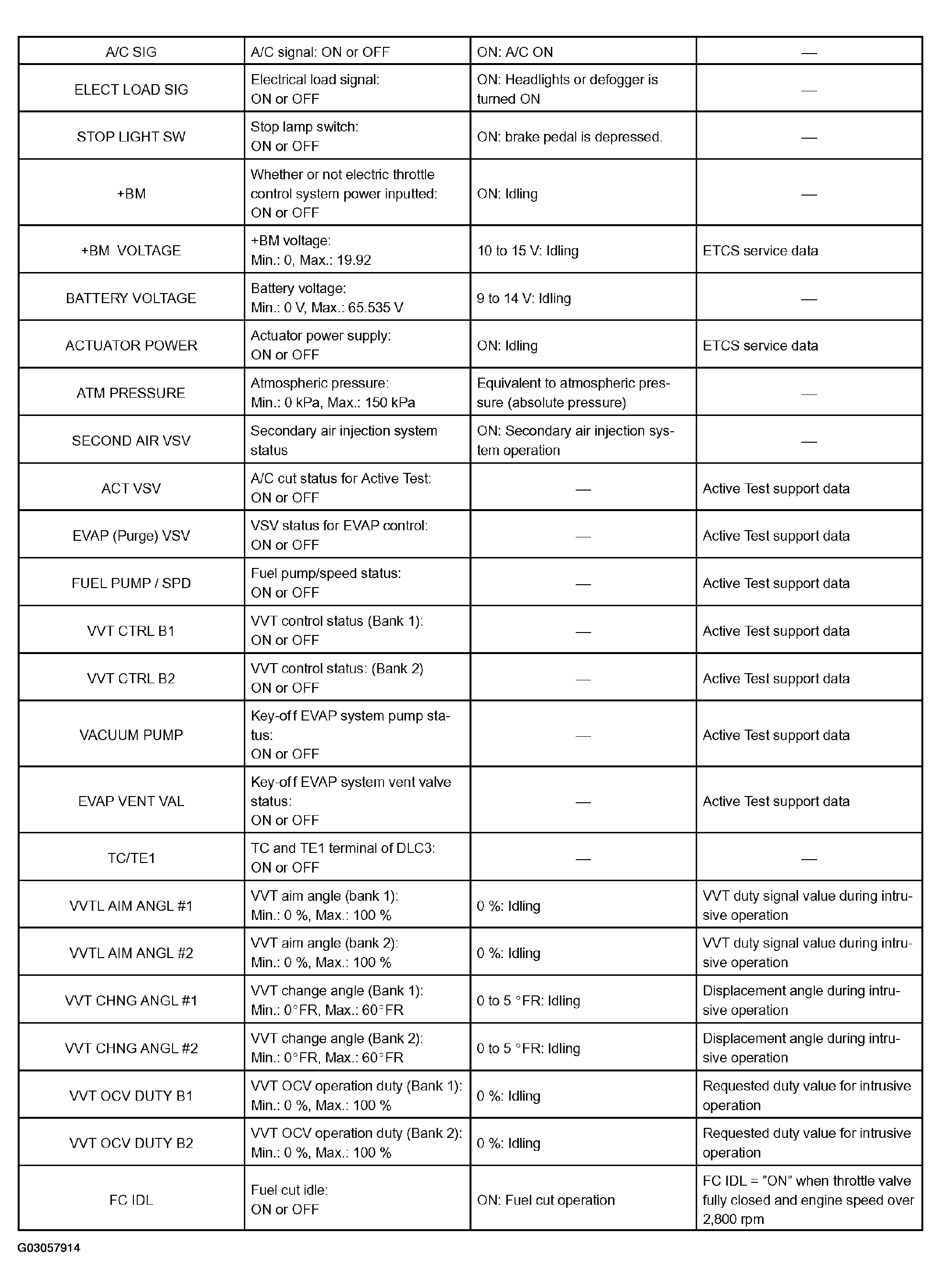

Fig 2: Hand-Held Tester Data List Description (2 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

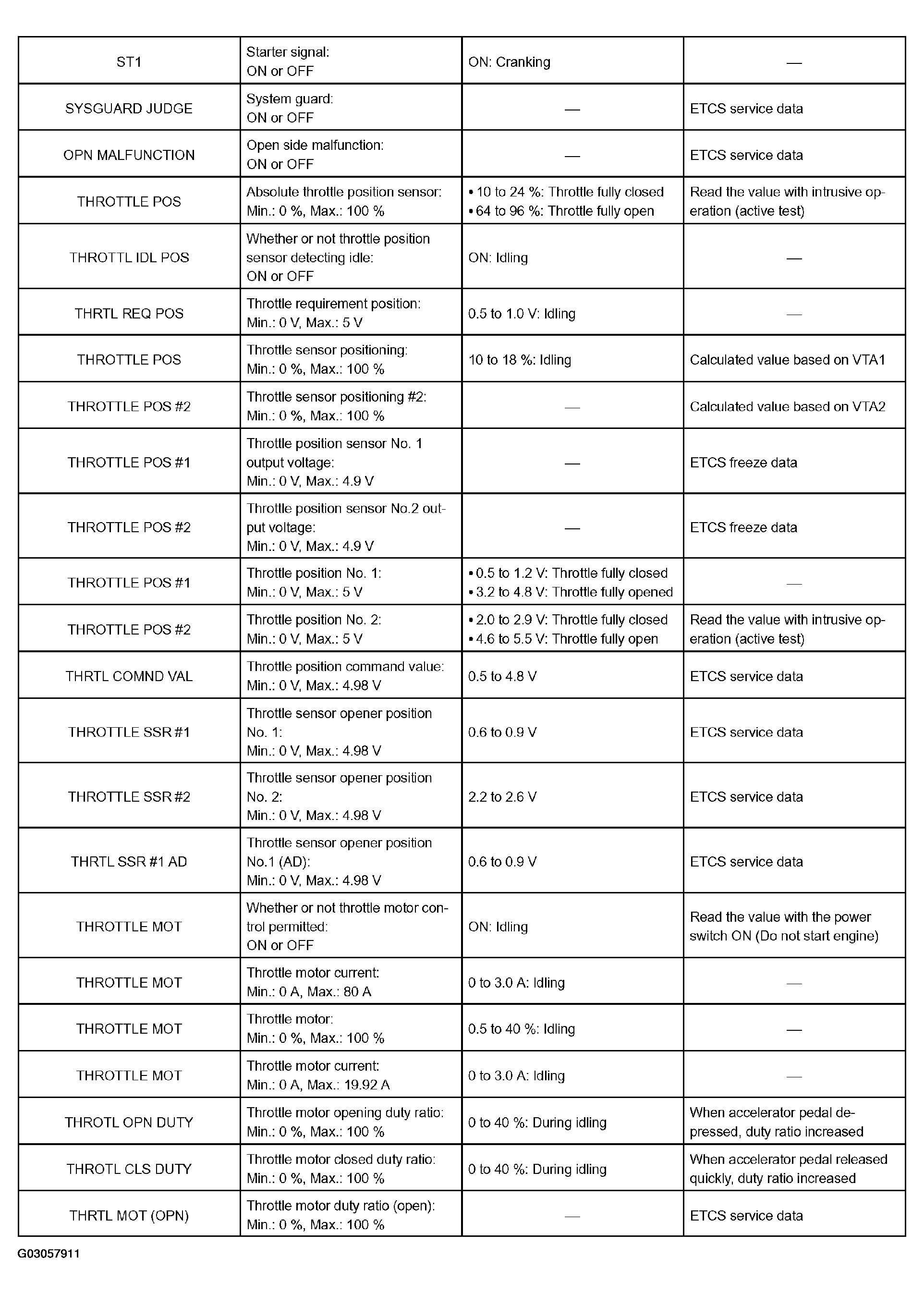

Fig 3: Hand-Held Tester Data List Description (3 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

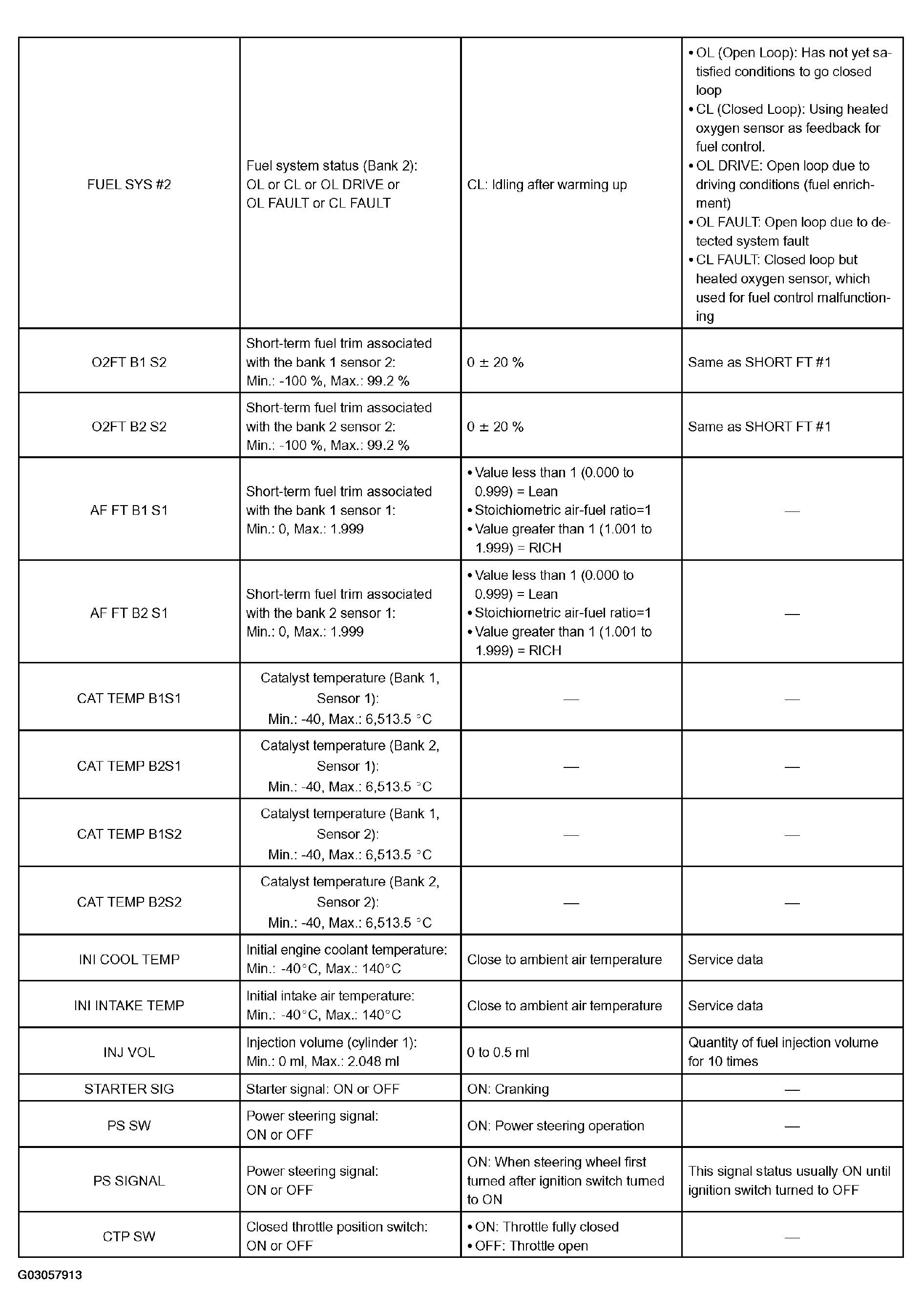

Fig 4: Hand-Held Tester Data List Description (4 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

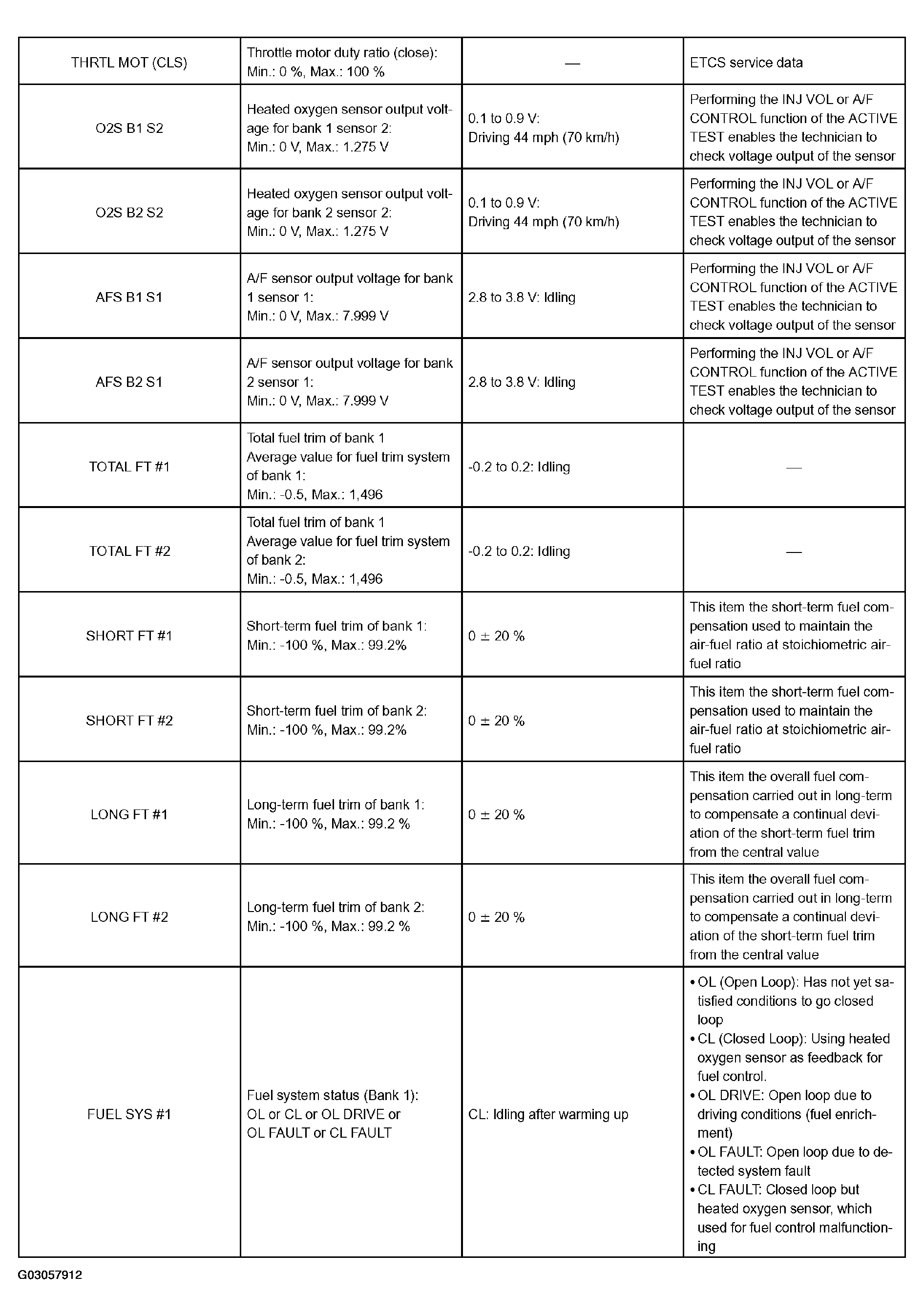

Fig 5: Hand-Held Tester Data List Description (5 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

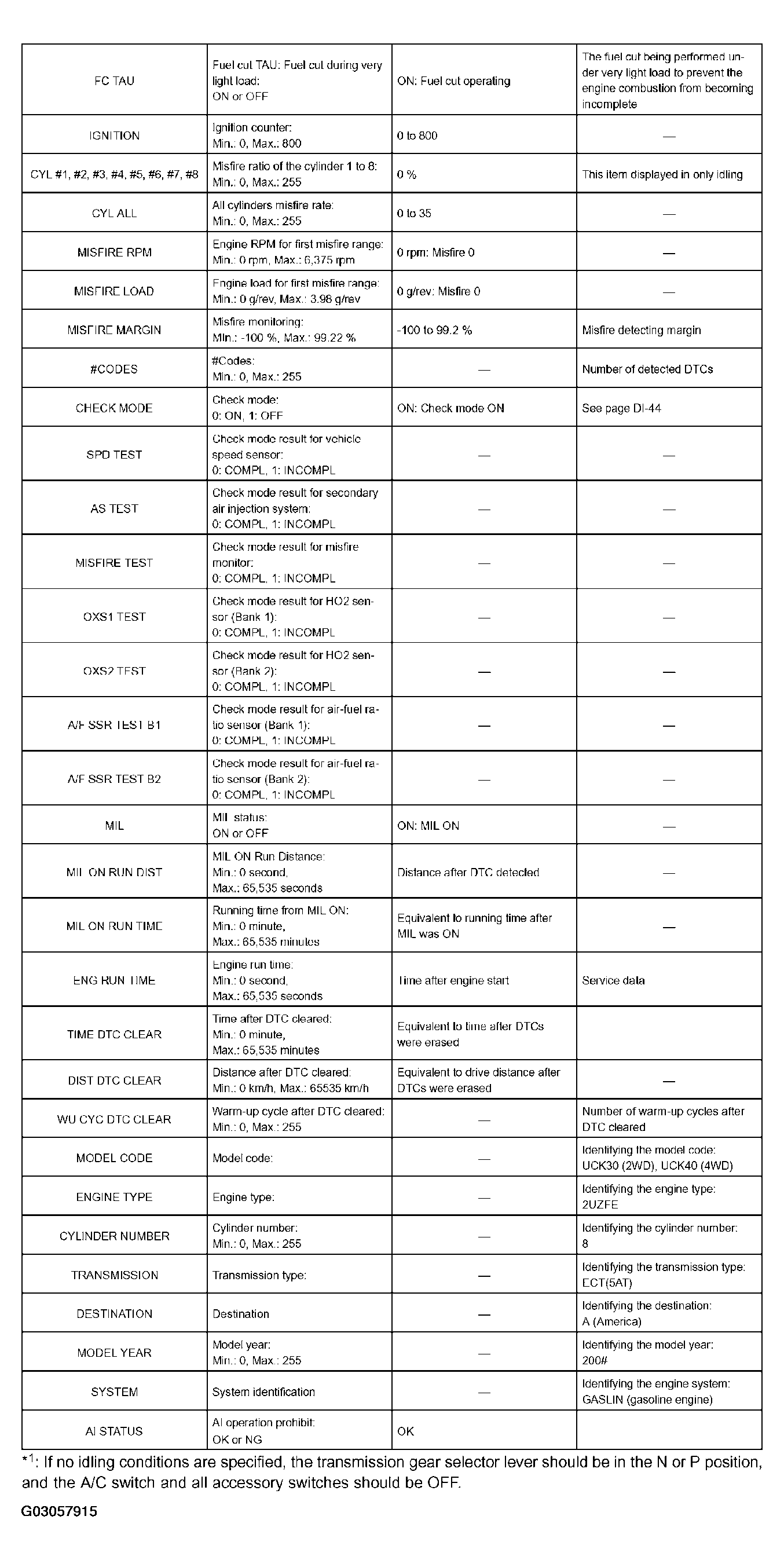

Fig 6: Hand-Held Tester Data List Description (6 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Hand-Held Tester Data List Description (7 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

^*1 : If no idling conditions are specified, the transmission gear selector lever should be in the N or P position, and the A/C switch and all accessory switches should be OFF.
ACTIVE TEST
HINT:

Performing an ACTIVE TEST enables components including the relays, VSV (Vacuum Switching Valve), and actuators, to be operated without removing any parts. The ACTIVE TEST can be performed with a hand-held tester. Performing an ACTIVE TEST as the first step of troubleshooting is one method of shortening diagnostic time.

DATA LIST can be displayed during ACTIVE Tests.
1. Connect a hand-held tester to the DLC3.
2. Turn the ignition switch to ON.
3. Turn the tester ON.
4. Select the following menu items: DIAGNOSIS / ENHANCED OBD II / ACTIVE TEST.
5. Perform the ACTIVE TEST by referring to the table below.

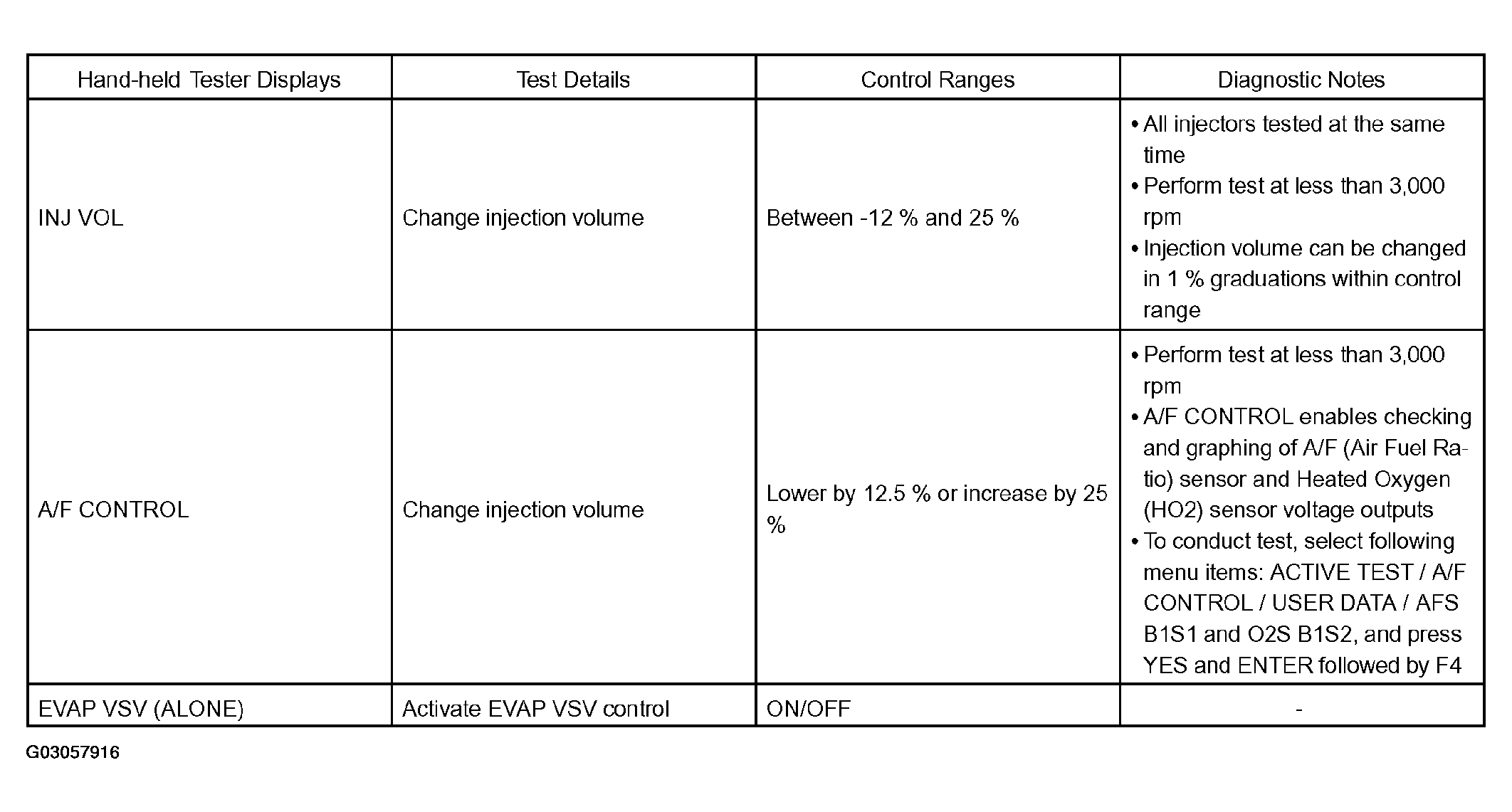

  Fig 8: Hand-Held Tester Active Test (1 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

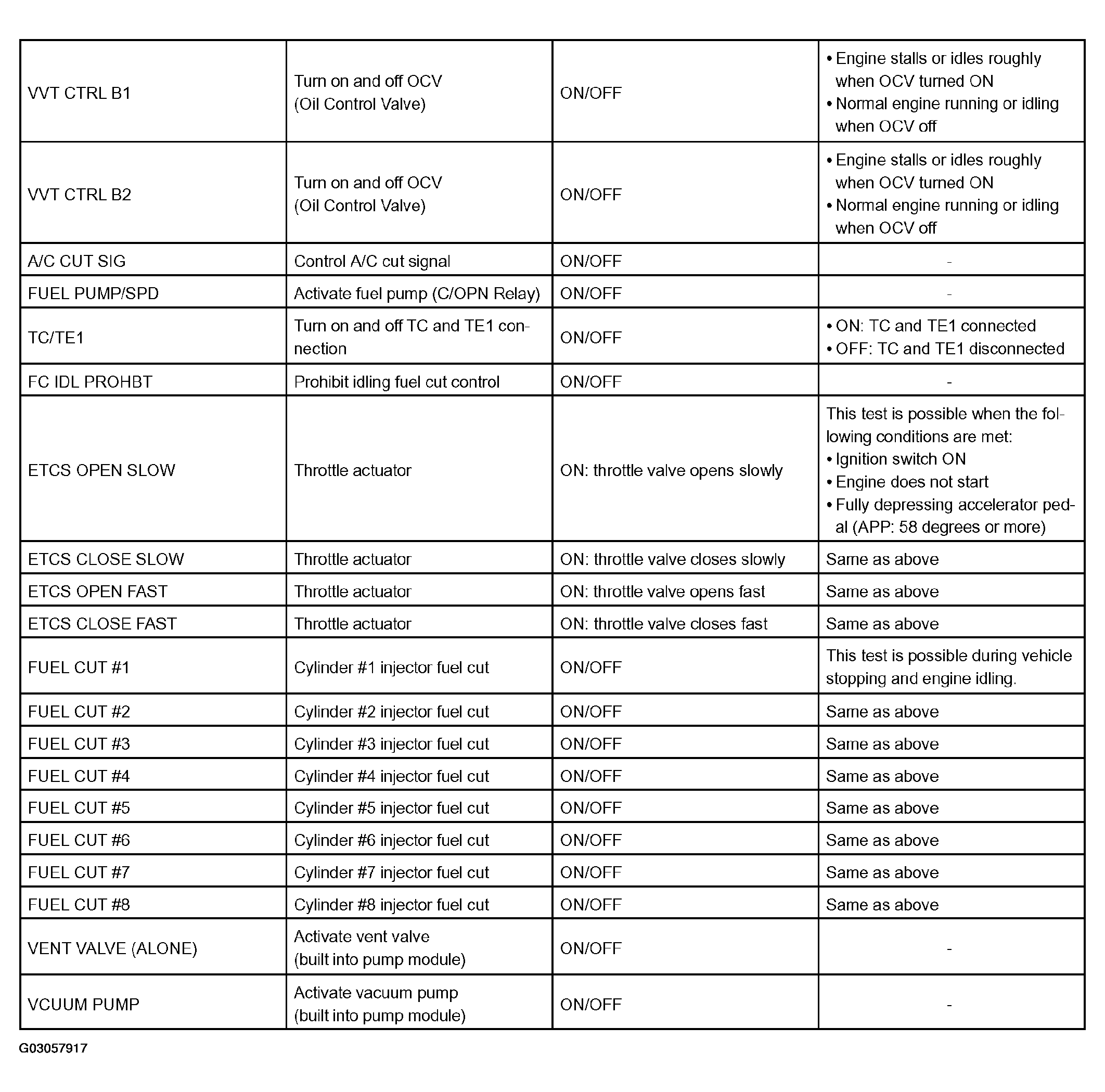

Fig 9: Hand-Held Tester Active Test (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
SYSTEM CHECK
HINT:

Performing a SYSTEM CHECK enables the system, which consists of multiple actuators, to be operated without removing any parts. In addition, it can show whether or not any DTCs are set, and can detect potential malfunctions in the system. The SYSTEM CHECK can be performed with a hand-held tester.
1. Connect a hand-held tester to the DLC3.
2. Turn the ignition switch to ON.
3. Turn the tester ON.
4. Select the following menu items: DIAGNOSIS / ENHANCED OBD II / SYSTEM CHECK.
5. Perform the SYSTEM CHECK by referring to the table below.

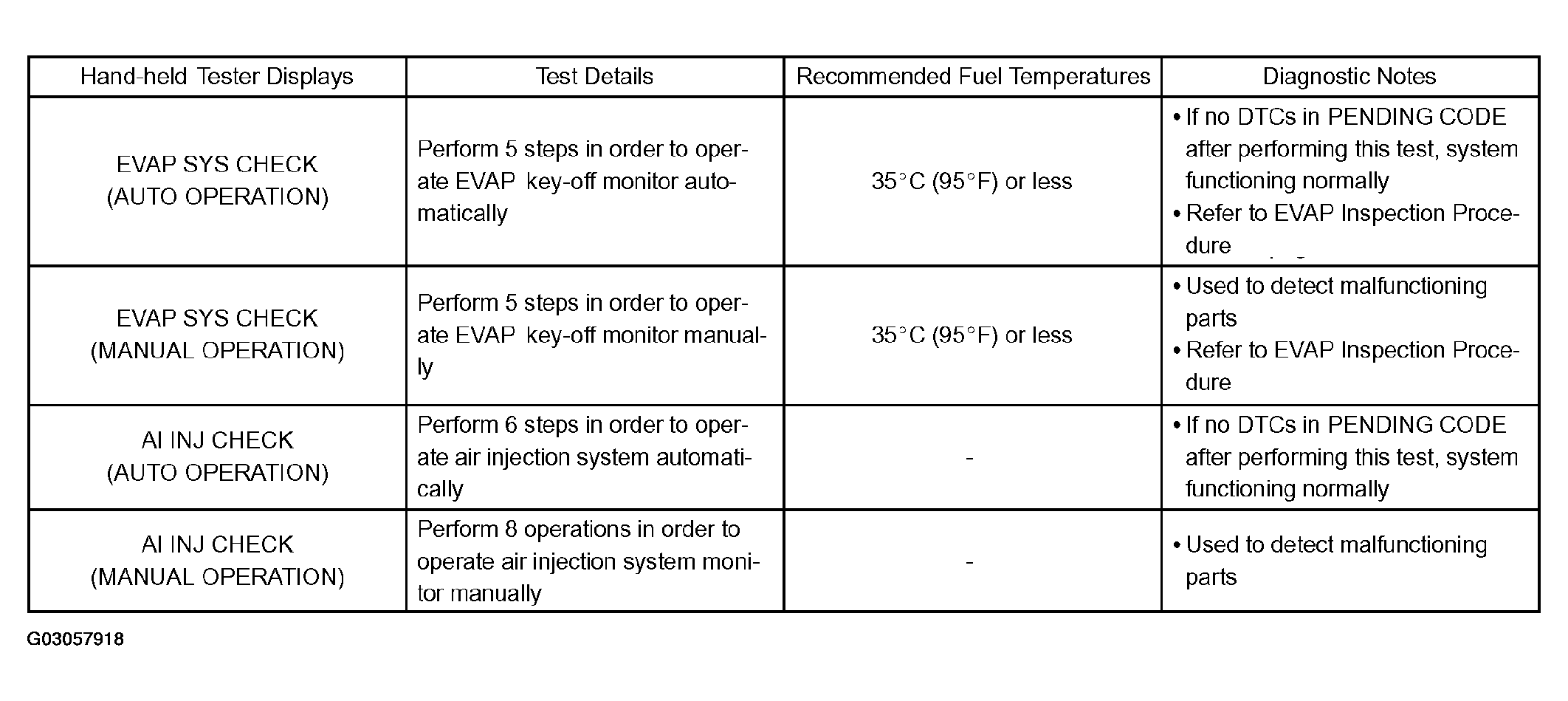

  Fig 10: Hand-Held Tester Display - System Check
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
