Inspection Procedure
- INSPECT FUSE (D FR P/W, IG1 NO.2, ECU-B, AM1, J/B)
- Remove the D FR P/W and IG1 No.2 fuses from the driver side J/B.
- Remove the ECU-B, AM1 and J/B fuses from the engine room R/B.
- Measure the resistance.
Standard: Below 1
- Reinstall the D FR P/W and IG1 No.2 fuses.
- Reinstall the ECU-B, AM1 and J/B fuses.
- NG : REPLACE FUSE
- OK : Go to next step.
- INSPECT RELAY (P/W)
- Remove the P/W relay from the driver side J/B.
- Measure the resistance.
Standard:
TESTER CONNECTION AND SPECIFIED CONDITION REFERENCETester Connection Specified Condition 3-5 10Ω k or higher 3-5 Below 1Ω (when battery voltage is applied to terminals 1 and 2) - Reinstall the P/W relay.
- NG : REPLACE RELAY
- OK : Go to next step.
- CHECK HARNESS AND CONNECTOR (FOR POWER SOURCE OF DRIVER SIDE J/B ASSY)
- Disconnect the 1 A, 1C, and 1H driver side J/B connectors.
- Measure the voltage and resistance.
Standard:

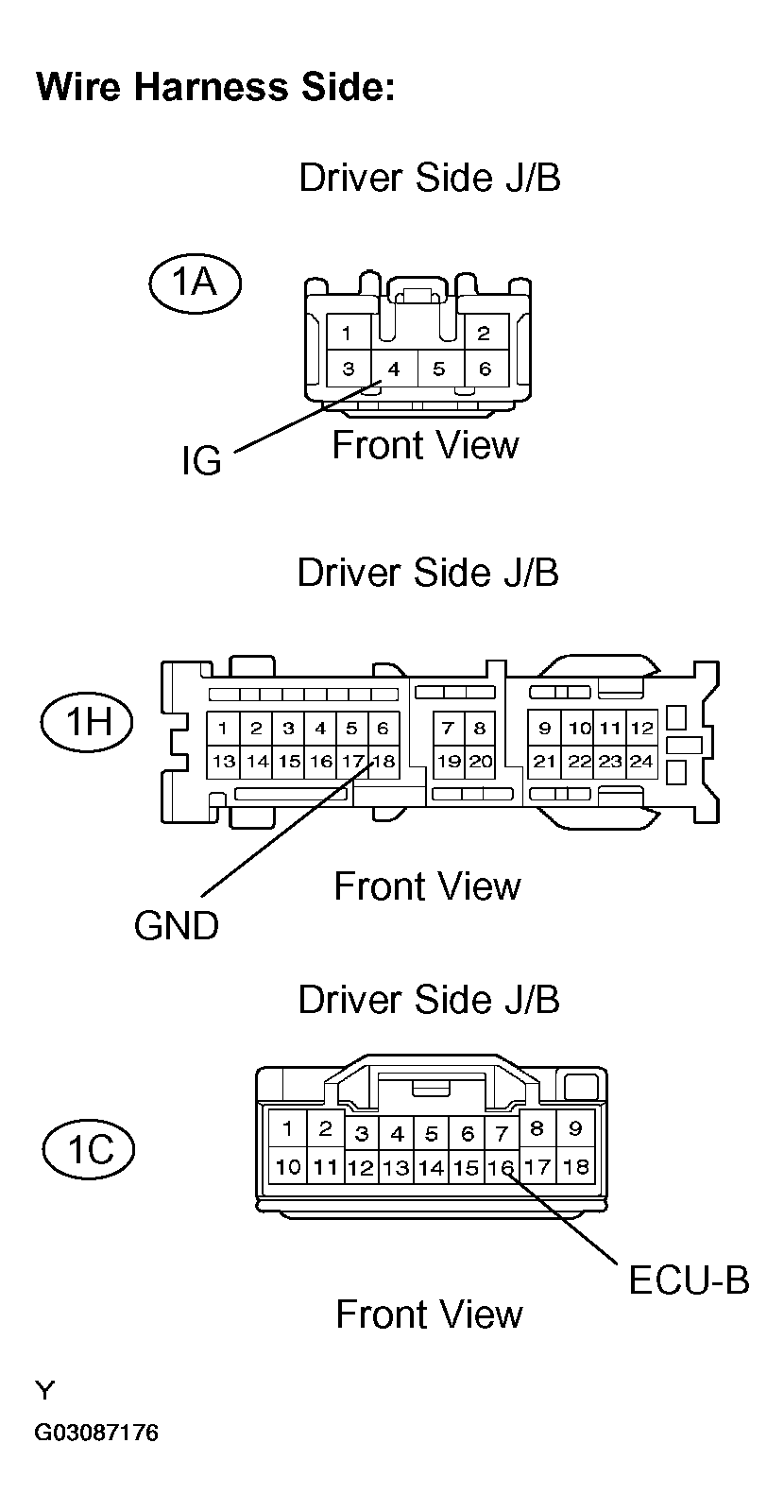

TESTER CONNECTION AND SPECIFIED CONDITION REFERENCETester Connection Condition Specified Condition 1A-6 - Body ground Constant 10 to 14 V 1C-16 (ECU-B) - Body ground Constant 10 to 14 V 1H-18 (GND) - Body ground Constant Below 1Ω 1A-4 (IG) - Body ground Ignition switch ON 10 to 14 V - Reconnect the driver side J/B connectors.
- NG : REPAIR OR REPLACE HARNESS OR CONNECTOR
- OK : Go to next step.
- CHECK HARNESS AND CONNECTOR (POWER WINDOW REGULATOR MASTER SWITCH ASSY - BODY GROUND)
- Disconnect the P9 power window regulator master switch connector.
- Measure the voltage or resistance.

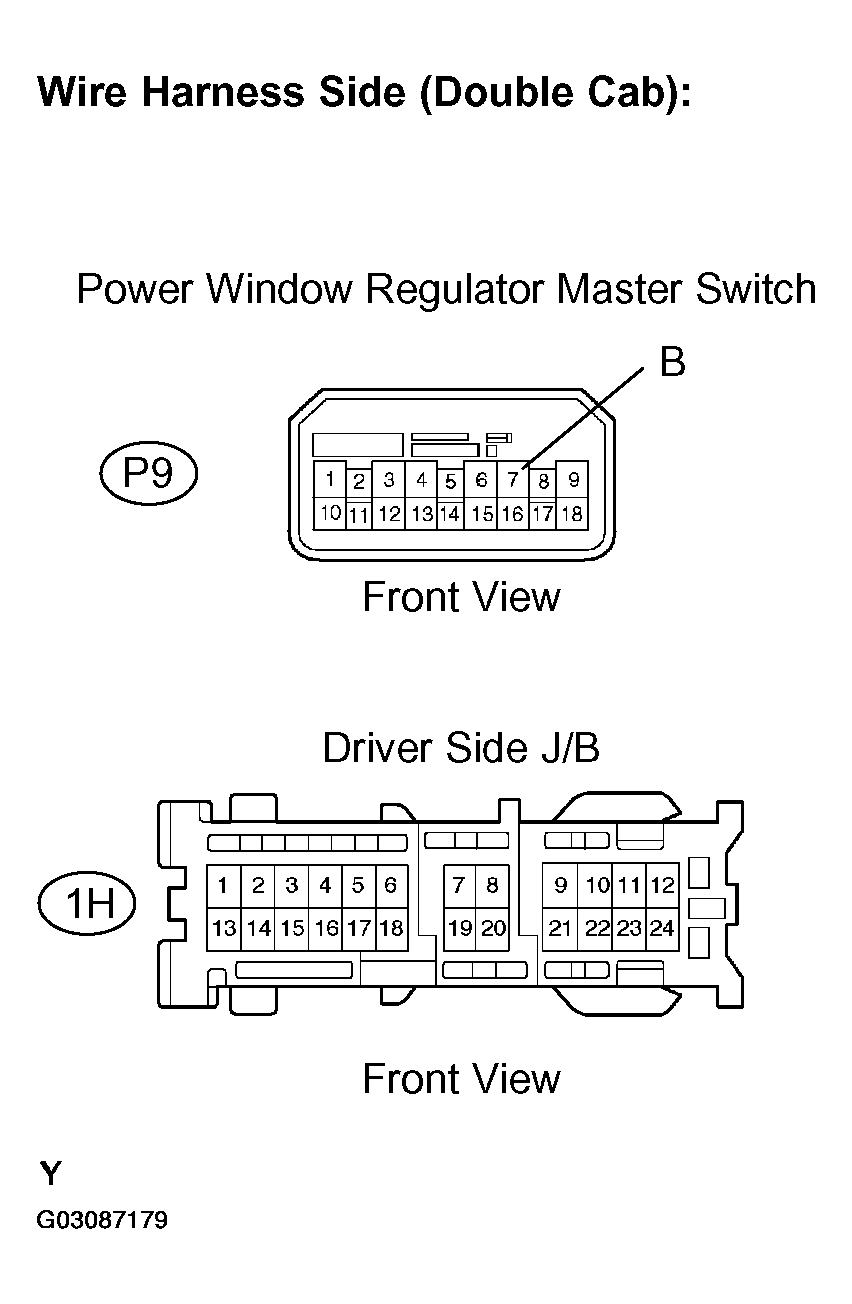

Standard (Double cab):
TESTER CONNECTION AND SPECIFIED CONDITION REFERENCETester Connection Condition Specified Condition P9-7 (B) - Body ground Ignition switch ON 10 to 14 V P9-1 (E) - Body ground Constant Below 1Ω Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

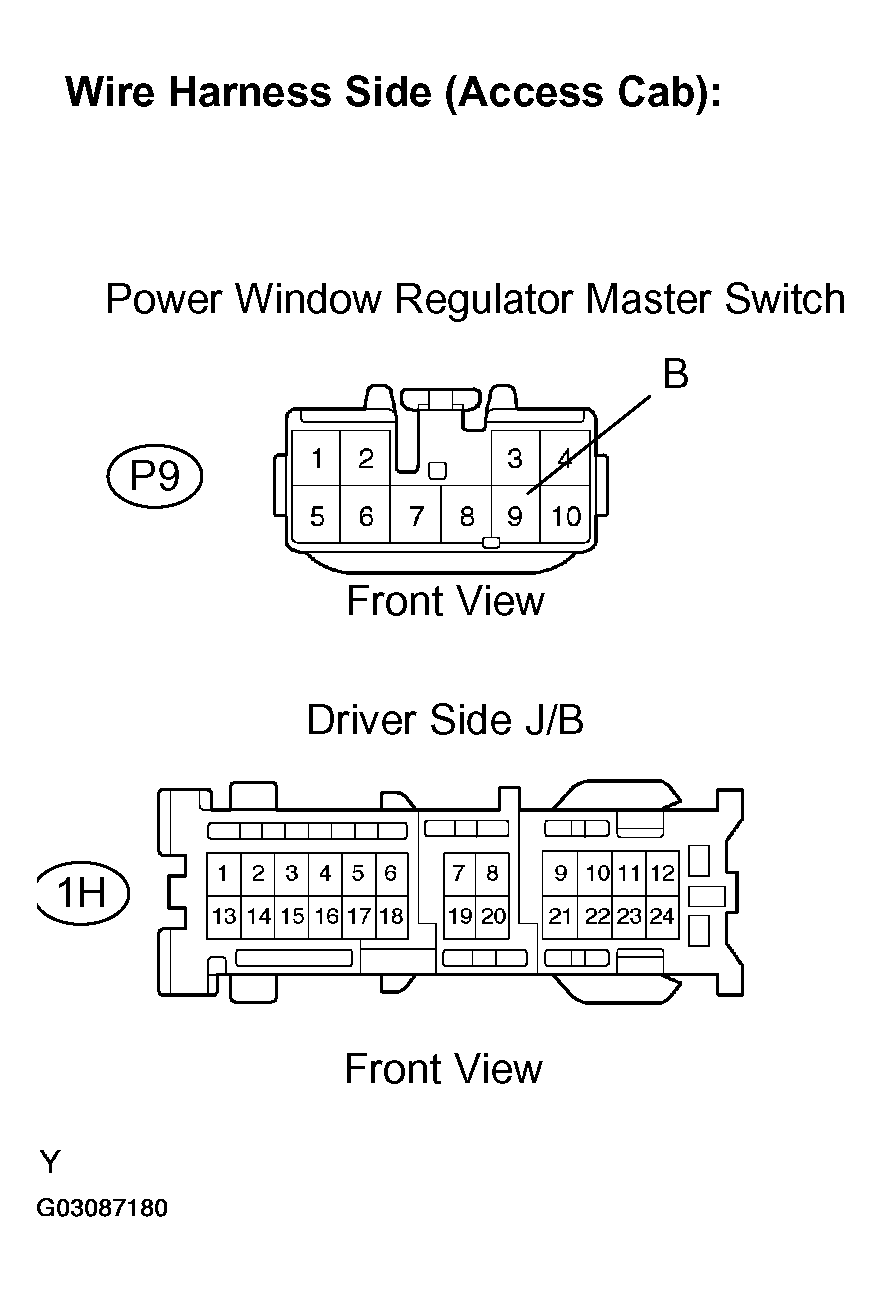

Standard (Access cab):
TESTER CONNECTION AND SPECIFIED CONDITION REFERENCETester Connection Condition Specified Condition P9-9 (B) - Body ground Ignition switch ON 10 to 14 V P9-1 (E) - Body ground Constant Below 1Ω - Reconnect the power window regulator master switch connector.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- NG : Go to step 5
- OK : REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSY
- CHECK HARNESS AND CONNECTOR (DRIVER SIDE J/B ASSY - POWER WINDOW REGULATOR MASTER SWITCH ASSY)
- Disconnect the 1H driver side J/B connectors.
- Disconnect the P9 power window regulator master switch connector.
- Measure the resistance.
Standard (Double cab):
TESTER CONNECTION AND SPECIFIED CONDITION REFERENCETester Connection Specified Condition 1H-1 - P9-7 (B) Below 1Ω Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard (Access cab):
TESTER CONNECTION AND SPECIFIED CONDITION REFERENCETester Connection Specified Condition 1H-1 - P9-9 (B) Below 1Ω - Reconnect the driver side J/B connector.
- Reconnect the power window regulator master switch connector.
- NG : REPAIR OR REPLACE HARNESS OR CONNECTOR
- OK : REPLACE DRIVER SIDE JUNCTION BLOCK
