Fuel Pump ASSY: Components

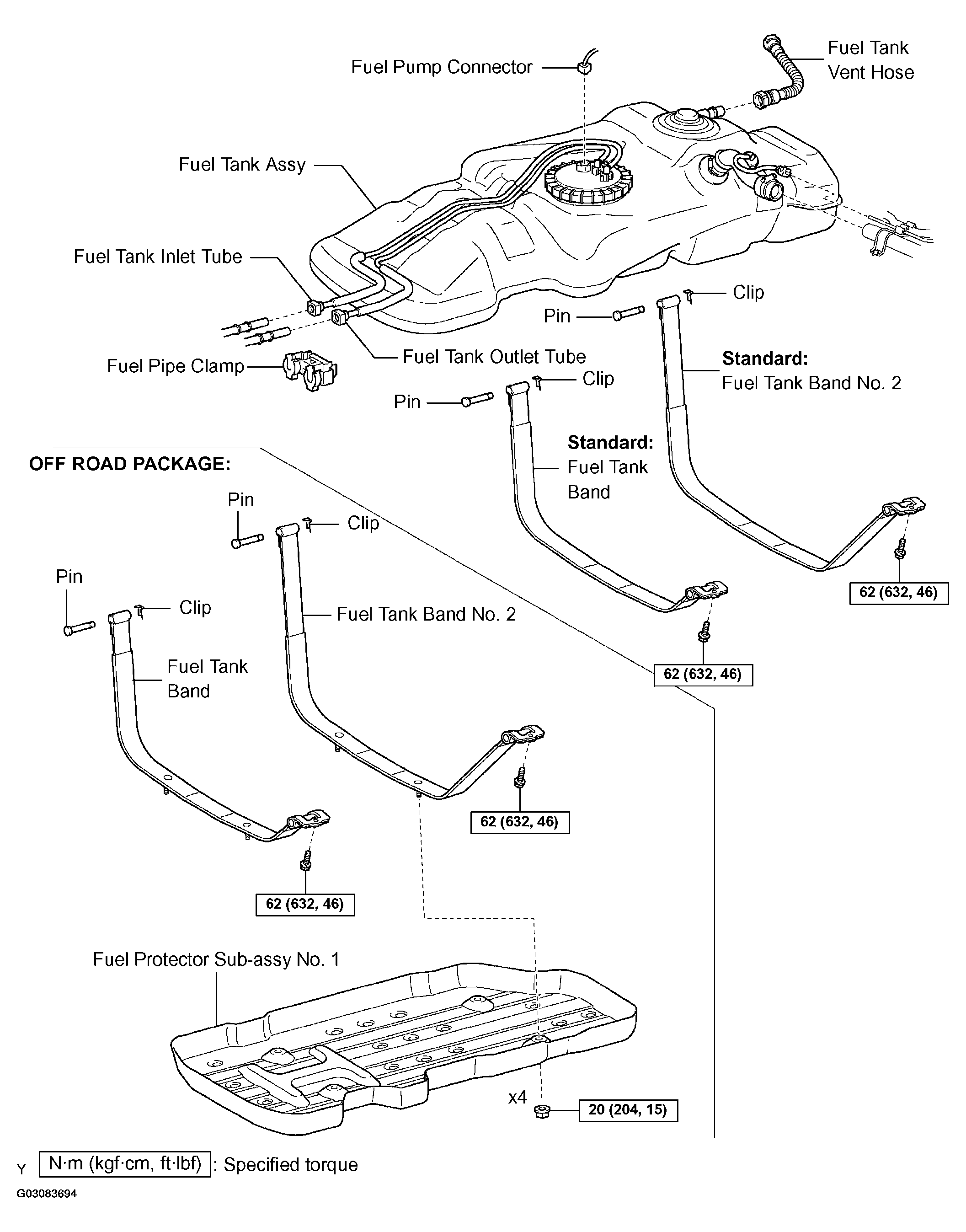

Fig 1: Fuel Pump Assy Replacement Components & Torque Specification (1 Of 2)
G03083694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

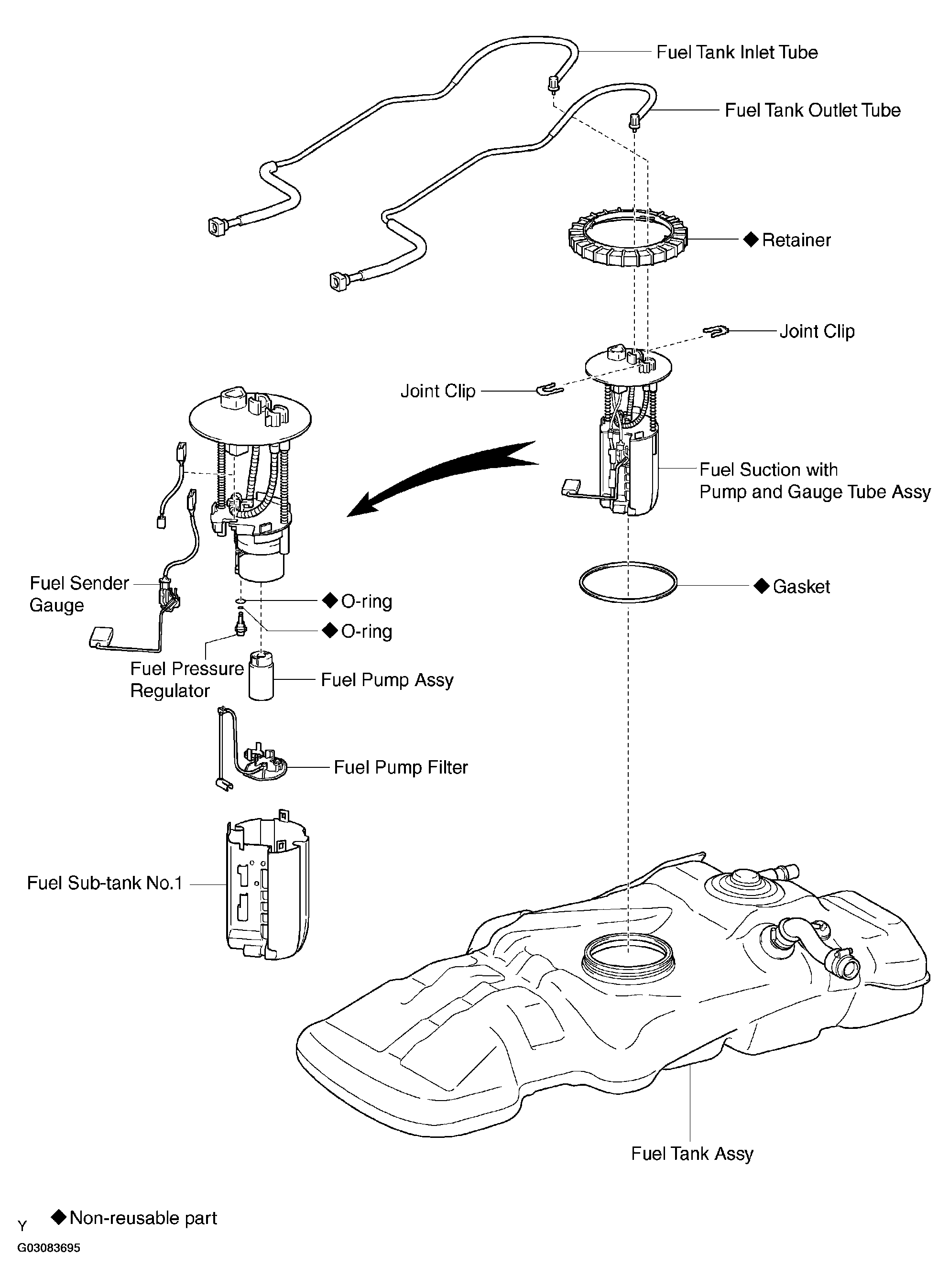

Fig 2: Fuel Pump Assy Replacement Components & Torque Specification (2 Of 2)
G03083695Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
