Engine Mechanical: SSM

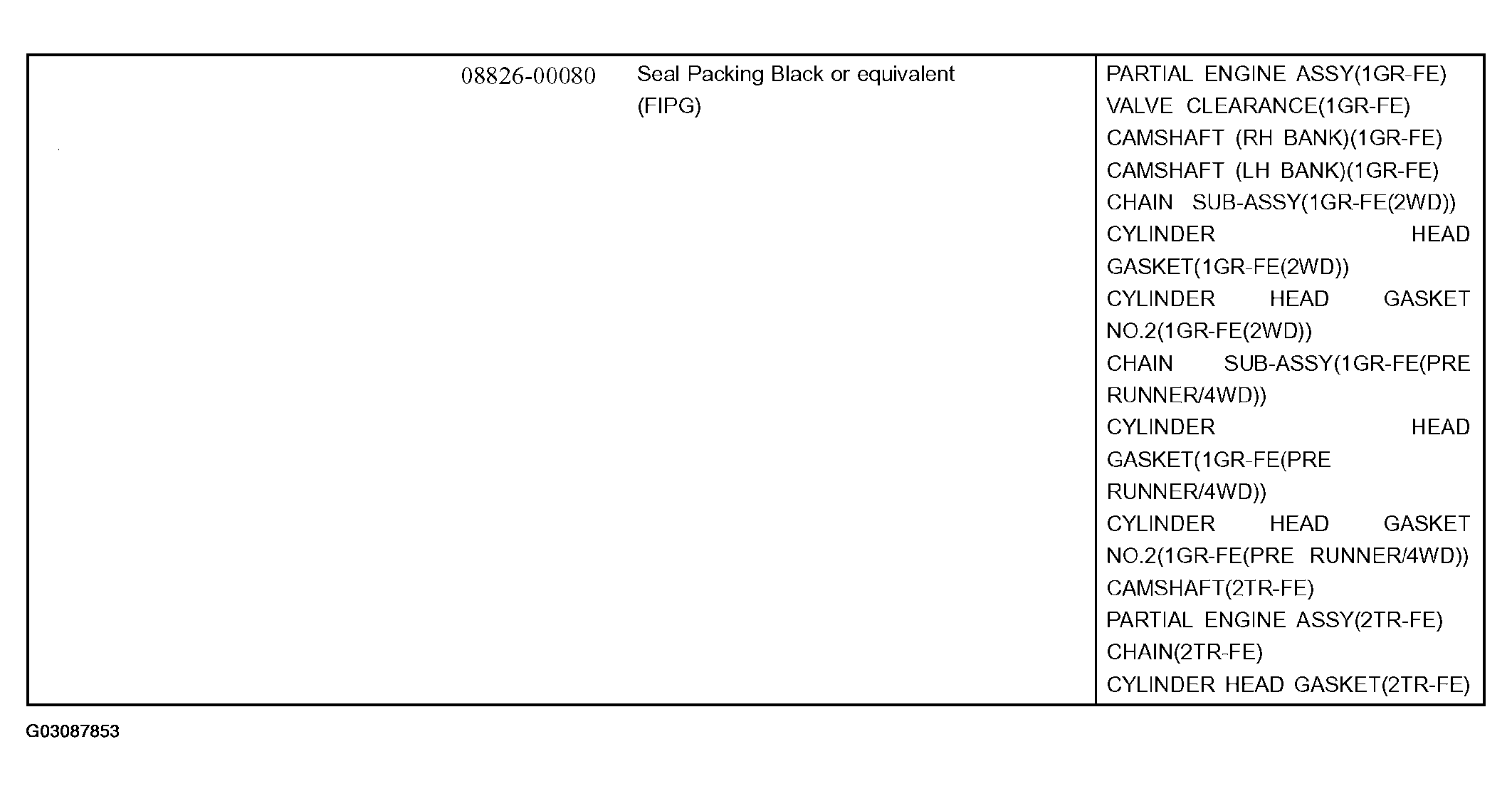

Fig 1: SSM Specification Chart (1 Of 2)
G03087853Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

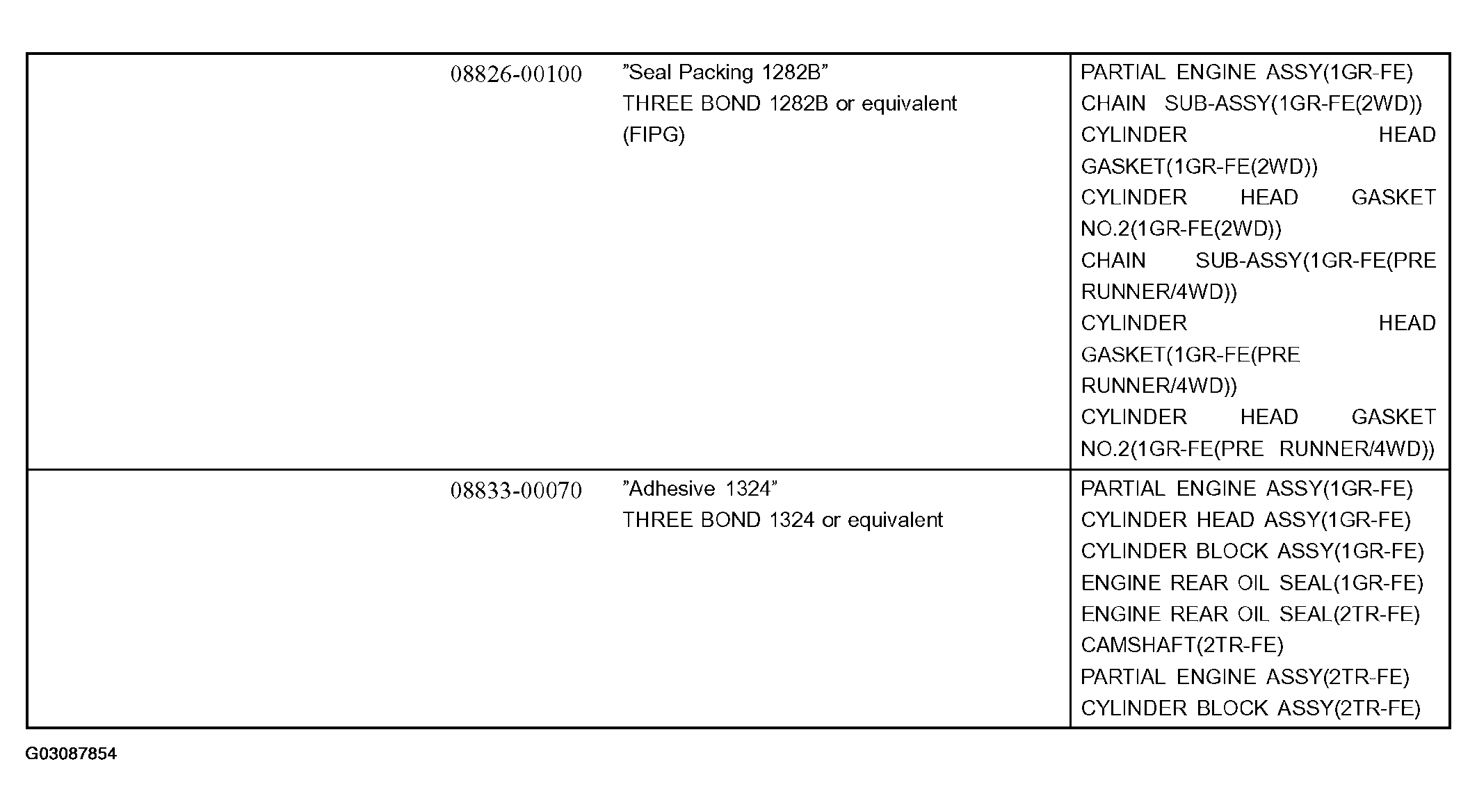

Fig 2: SSM Specification Chart (2 Of 2)
G03087854Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
