Power Window Control System (Diagnostics): Location

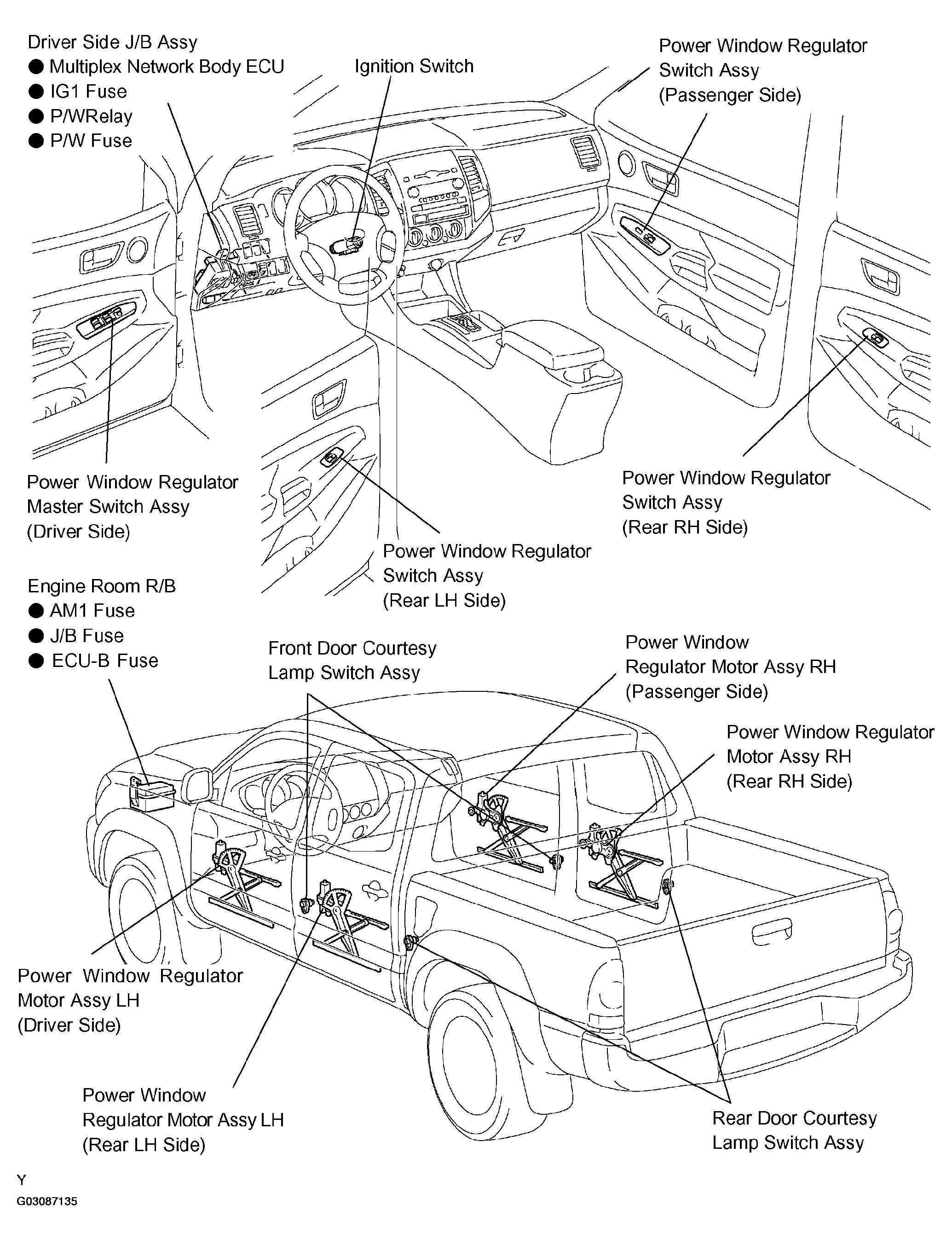

Fig 1: Identifying Power Window Control System Components
G03087135Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
