Ignition System (2TR-FE): Inspection

  1. INSPECT SPARK PLUG
    1. Clean the spark plugs.

      Air pressure: Below 588 kPa (6.0 kgf/cm 2  , 85 psi)

      Duration: 20 seconds or less

      Fig 1: Identifying Spark Plug Cleaner
      G03083940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Check the spark plug for any damage on its thread and insulator.

      If damaged, replace the spark plug.

      Recommended spark plug:

      SK20HR11 (DENSO made)

      ILFR6C11 (NGK made)

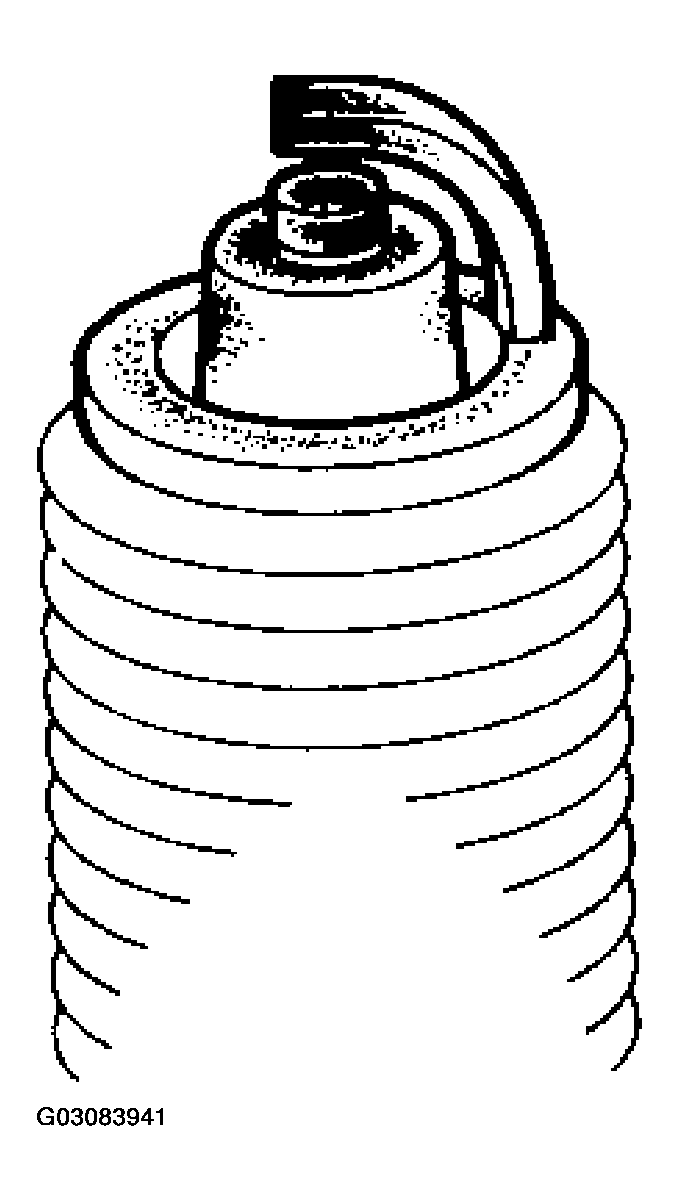

      Fig 2: Identifying Spark Plug Condition
      G03083941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Check the spark plug electrode gap.
      1. Using a spark plug gap gauge, measure the electrode gap.

      Electrode gap: 1.0 to 1.1 mm (0.039 to 0.043 in.)

      Maximum electrode gap: 1.3 mm (0.051 in.)

      If the result is greater than the maximum, replace the spark plug.

      Fig 3: Checking Spark Plug Electrode Gap
      G03083942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSPECT CAMSHAFT POSITION SENSOR
    1. Check the resistance.
      1. Using an ohmmeter, measure the resistance between the terminals.
      CAMSHAFT POSITION SENSOR SPECIFIED CONDITION

      Tester Connection Specified Condition
      1 (G+) - 2 (G-) 835 to 1,400 Ω at COLD
      1 (G+) - 2 (G-) 1,060 to 1,645 Ω at HOT

      HINT:

      Cold and Hot mean the temperature of the coils themselves.

      Cold is from -10 to 50°C (14 to 122°F) and Hot is from 50°C 100 °C (122 to 212°F).

      If the result is not as specified, replace the camshaft position sensor.

      Fig 4: Identifying Camshaft Position Sensor Connector
      G03083943Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSPECT CRANKSHAFT POSITION SENSOR
    1. Check the resistance.
      1. Using an ohmmeter, measure the resistance between the terminals.
        Fig 5: Identifying Crankshaft Position Sensor Connector
        G03083944Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      CRANKSHAFT POSITION SENSOR SPECIFIED CONDITION

      Tester Connection Specified Condition
      1 (NE+) - 2 (NE-) 1,630 to 2,740 Ω at COLD
      1 (NE+) - 2 (NE-) 2,065 to 3,225 Ω at HOT

      HINT:

      Cold and Hot mean the temperature of the coils themselves.

      Cold is from -10 to 50°C (14 to 122°F) and Hot is from 50 to 100°C (122 to 212°F).

      If the result is not as specified, replace the camshaft position sensor.
