VVT Sensor: Installation

INSTALL VVT SENSOR
1. LH bank side VVT sensor.
  1. Apply a light coat of engine oil to an O-ring of the VVT sensor.
  2. Install the VVT sensor with the bolt.
    Torque: 9.0 N.m (92 kgf.cm, 80 in.lbf)
  3. Connect the VVT sensor connector.

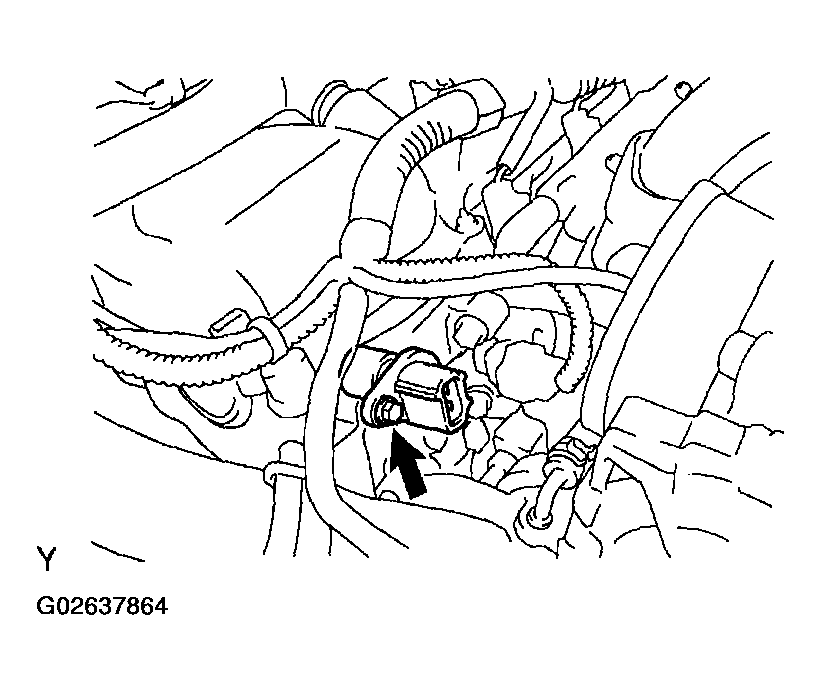

    Fig 1: Connecting VVT Sensor Connector
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. Connect the water bypass hose No. 4 and No. 5.

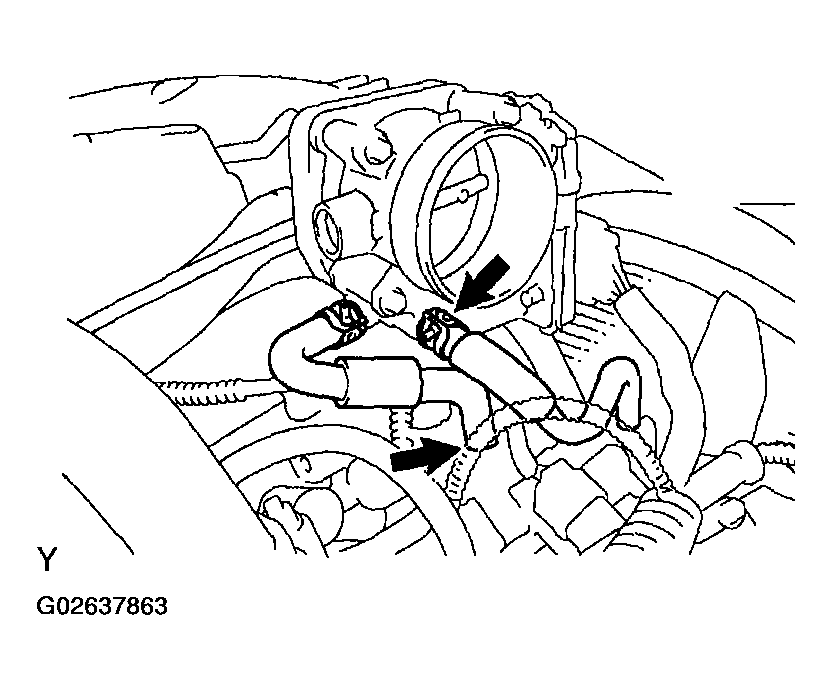

  Fig 2: Connecting Water By-Pass Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

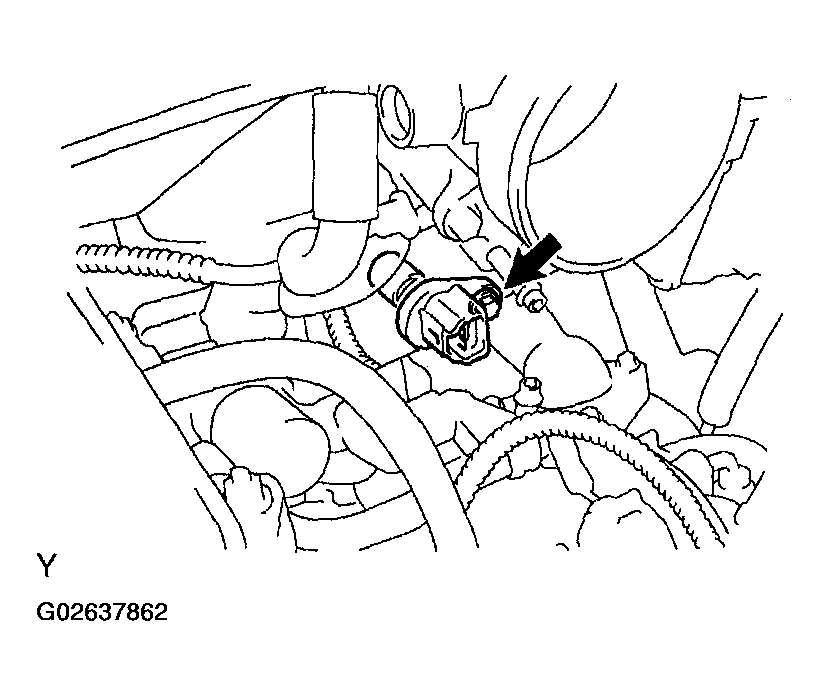

2. RH bank side VVT sensor.
  1. Apply a light coat of engine oil to an O-ring of the VVT sensor.
  2. Install the VVT sensor with the bolt.
    Torque: 9.0 N.m (92 kgf.cm, 80 in.lbf)
  3. Connect the VVT sensor connector.
INSTALL AIR CLEANER (See INSTALLATION )
INSTALL V-BANK COVER
ADD ENGINE COOLANT

Fig 3: Installing Air Cleaner
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
