VVT Sensor: Removal

DRAIN ENGINE COOLANT
REMOVE V-BANK COVER
REMOVE AIR CLEANER (See REMOVAL )
REMOVE VVT SENSOR
1. RH bank side VVT sensor.
  1. Disconnect the VVT sensor connector.
  2. Remove the bolt and VVT sensor.

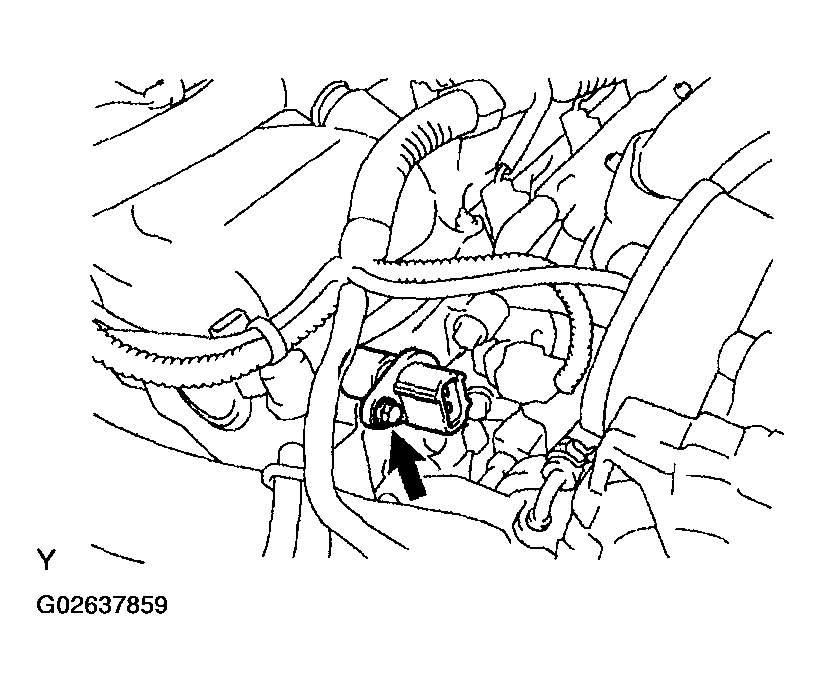

  Fig 1: Removing Bolt Of VVT Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. LH bank side VVT sensor.
  1. Disconnect the water bypass hose No. 4 and No. 5.
  2. Disconnect the VVT sensor connector.

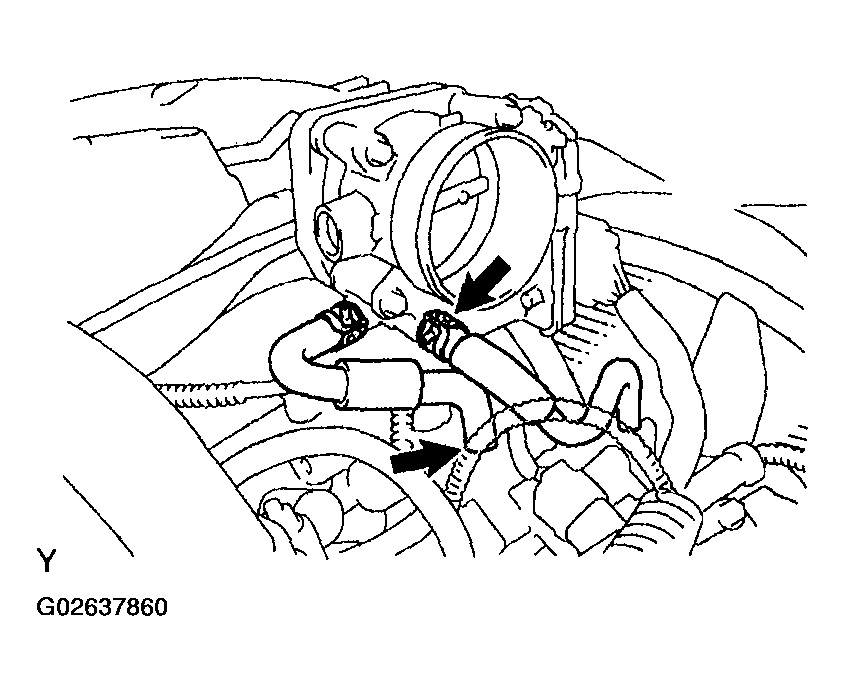

    Fig 2: Disconnecting VVT Sensor Connector
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Remove the bolt and VVT sensor.

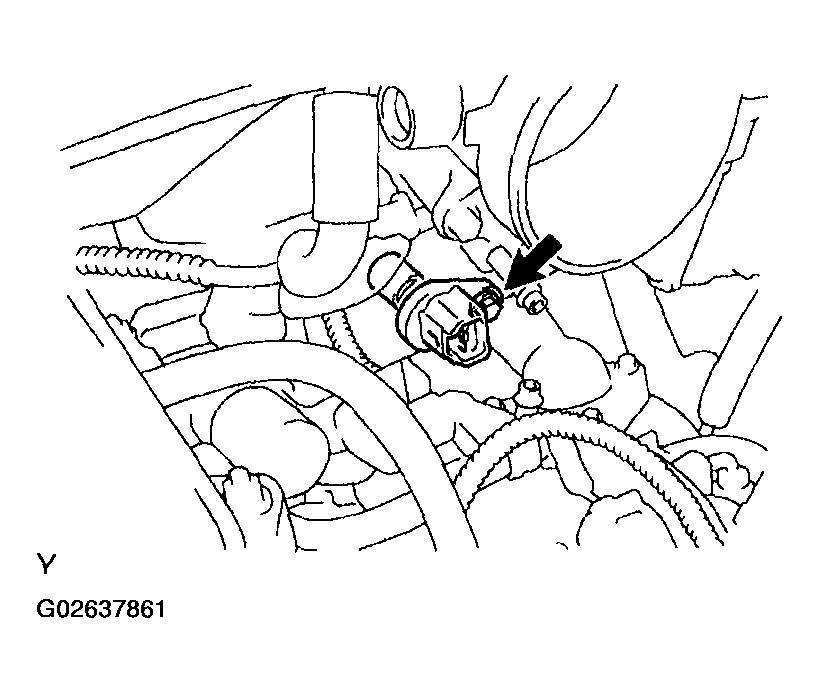

Fig 3: Removing Bolt Of VVT Sensor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
