Fuel Tank And Line: Components

CAUTION:
  • Always use new gaskets when replacing the fuel tank or component parts.
  • Apply the proper torque to all parts tightened

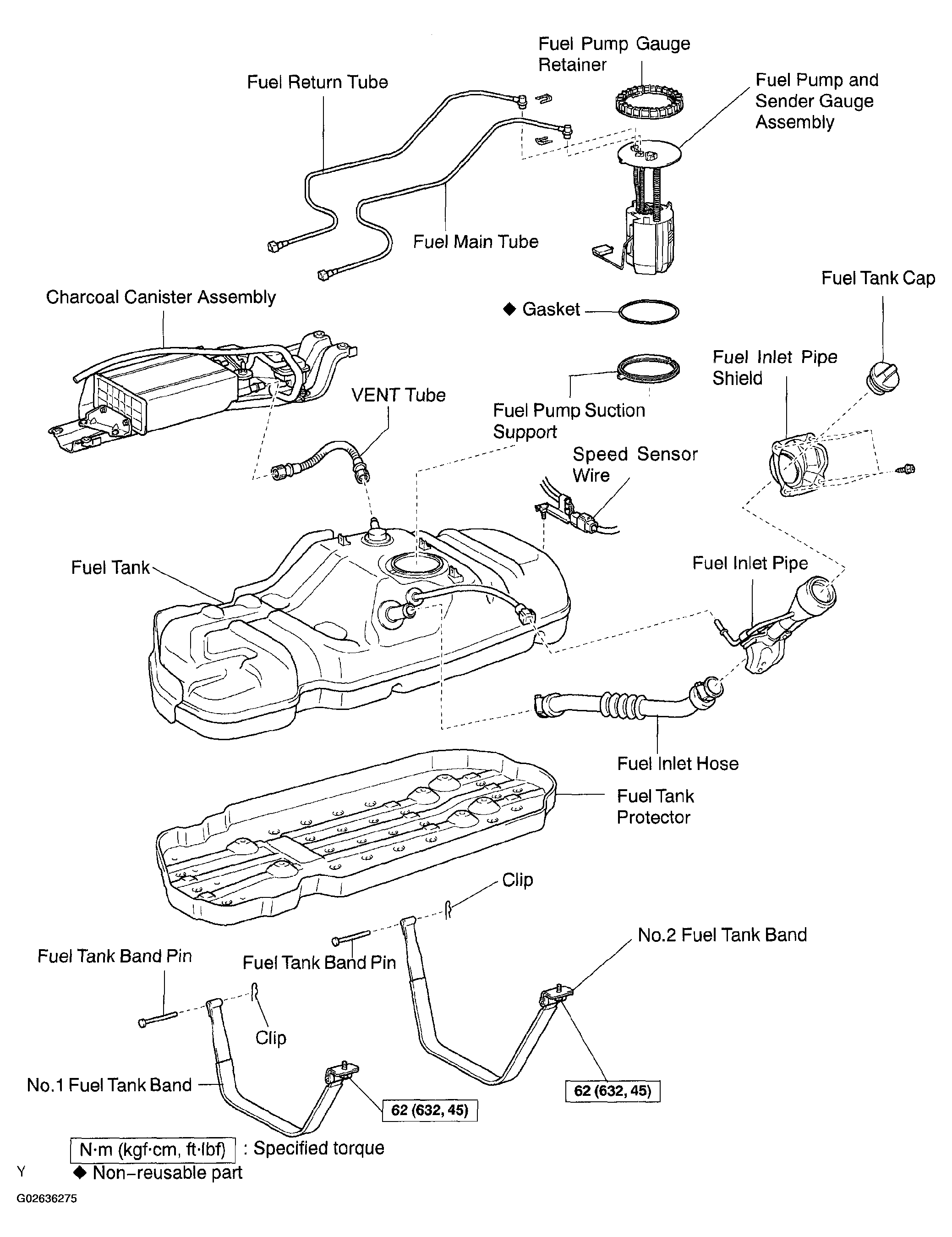

Fig 1: Identifying Fuel Tank And Line Components
G02636275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
