Throttle W/Motor Body ASSY (1GR-FE): Components

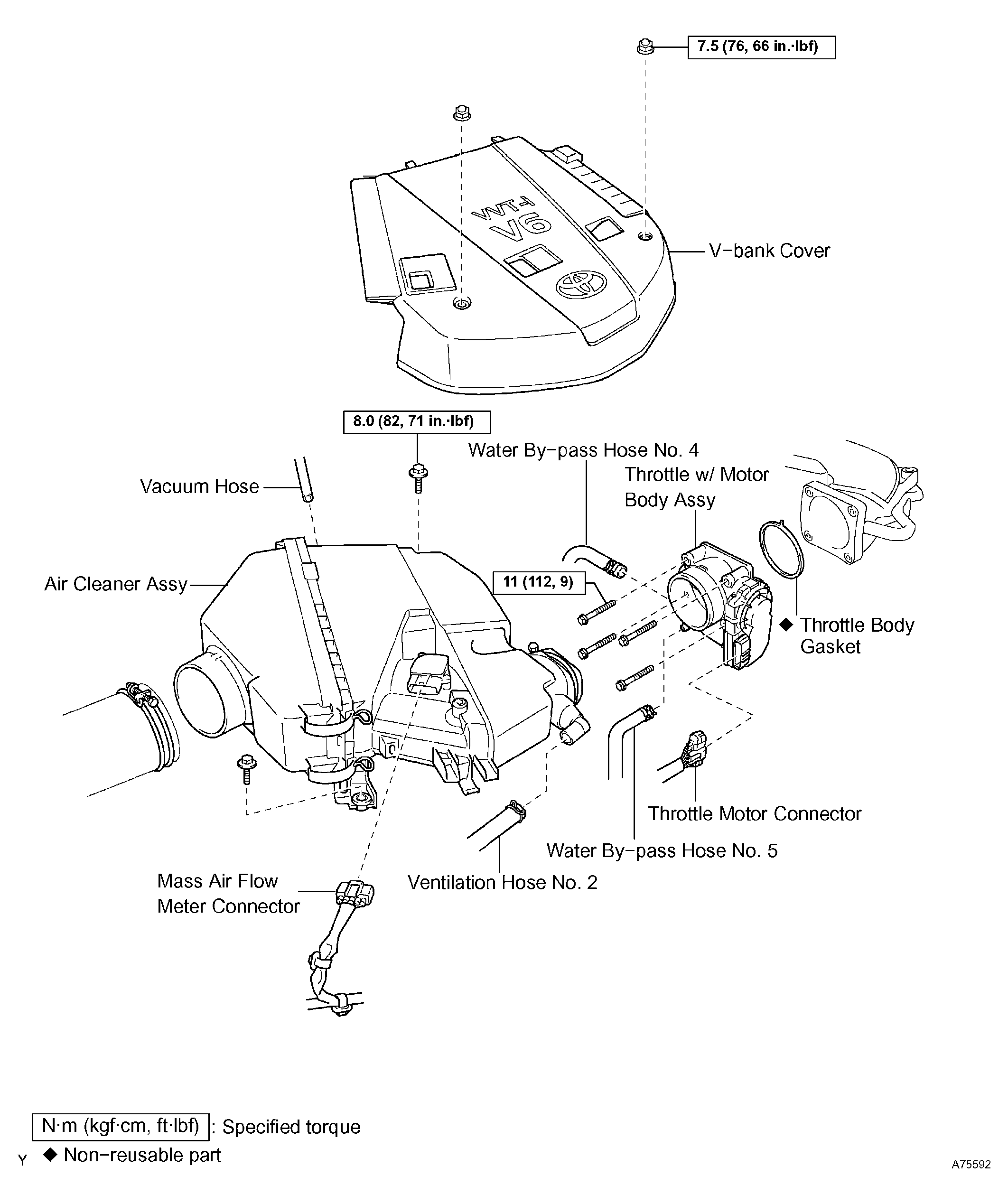

Fig 1: Identifying Throttle With Motor Body Assy Components
G04333406Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
