Accelerator Pedal Rod ASSY (2UZ-FE): Replacement

REMOVE ACCELERATOR PEDAL ROD ASSY
1. Disconnect a accelerator pedal connector.
2. Remove the 2 nuts and accelerator pedal assy.

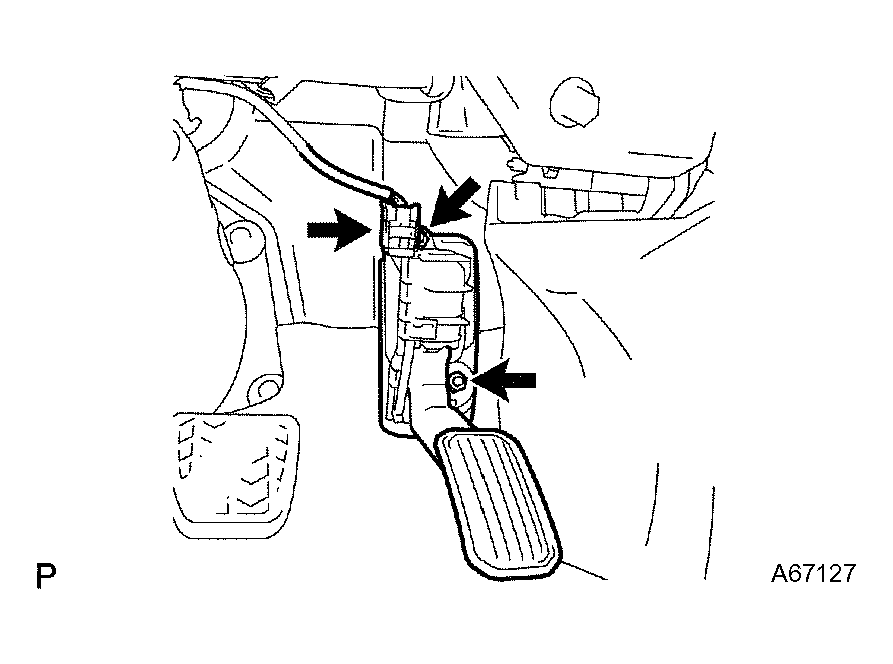

  Fig 1: Removing Accelerator Pedal Rod Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ACCELERATOR PEDAL ROD ASSY
NOTE:
- Be care not to give a shock to the accelerator pedal assy.
- Be care not to disassemble the accelerator pedal assy.
1. Install the accelerator pedal assy with the 2 nuts.
  Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf)
2. Connect a accelerator pedal connector.
