OEM System Circuits: Horn: Notes

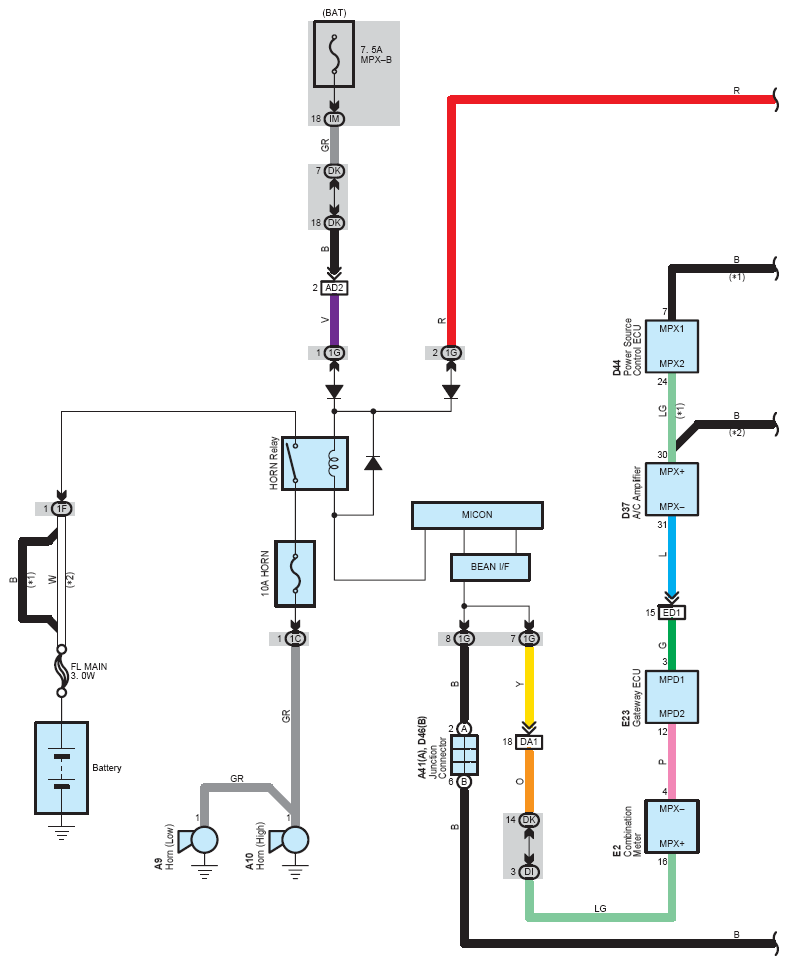

Fig 1: Horn System Wiring Diagram (1 Of 2)
G08779039Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

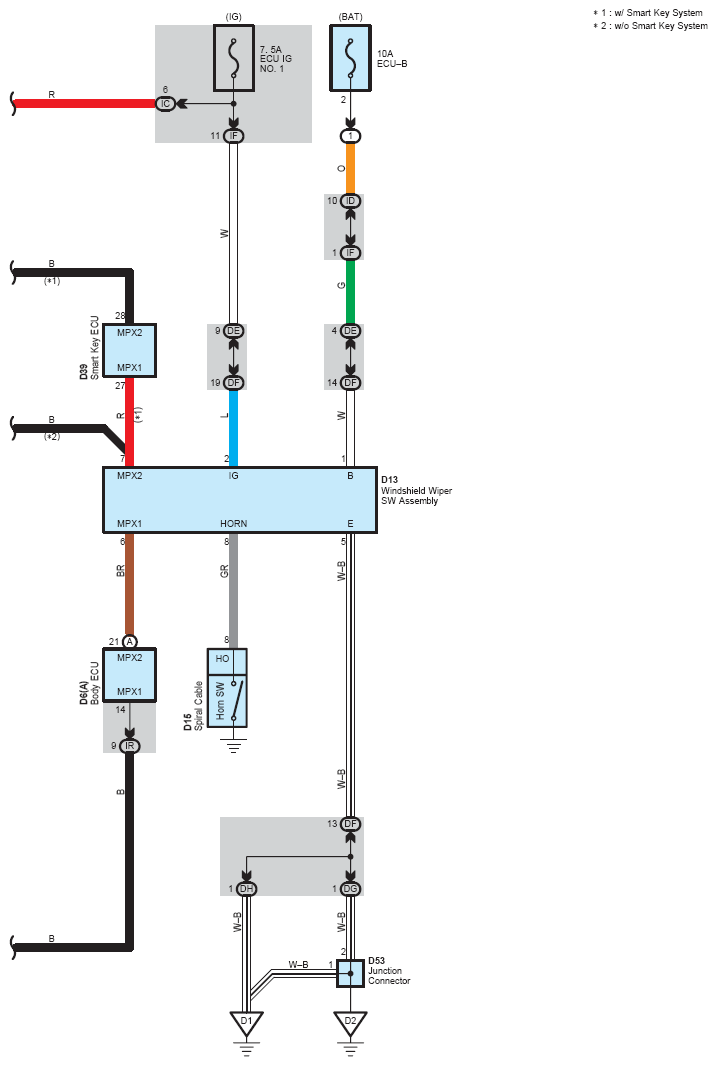

Fig 2: Horn System Wiring Diagram (2 Of 2)
G08779040Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
