Cruise Control Main Switch: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait for 90 seconds after disconnecting the cable to prevent the airbag working (See PRECAUTION ).
REMOVE STEERING WHEEL NO. 3 COVER LOWER (See REMOVAL )
REMOVE STEERING WHEEL NO. 2 COVER LOWER (See REMOVAL )
REMOVE STEERING PAD (See REMOVAL )
REMOVE CRUISE CONTROL MAIN SWITCH
1. Disconnect the connector.

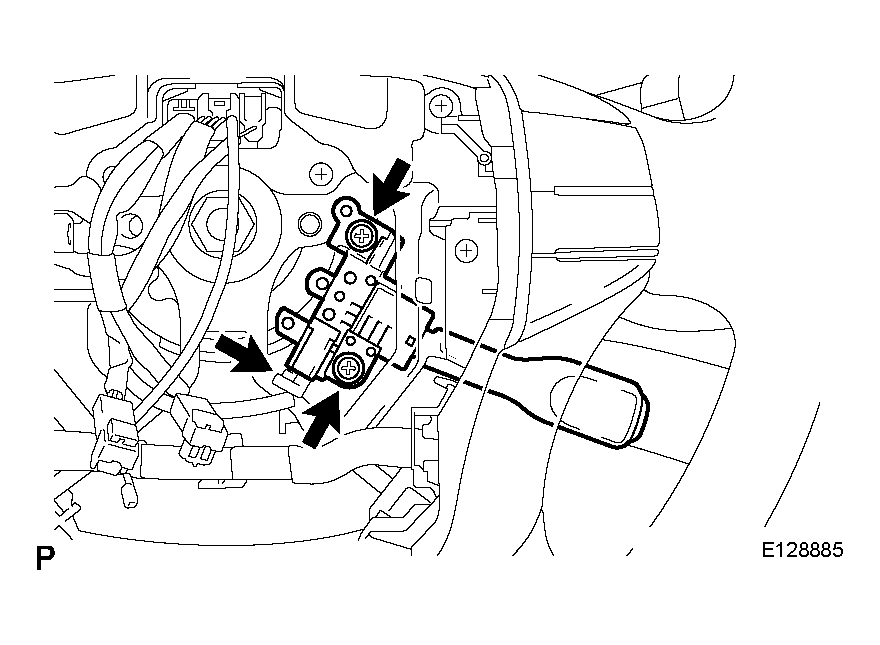

  Fig 1: Removing Cruise Control Main Switch Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 screws.

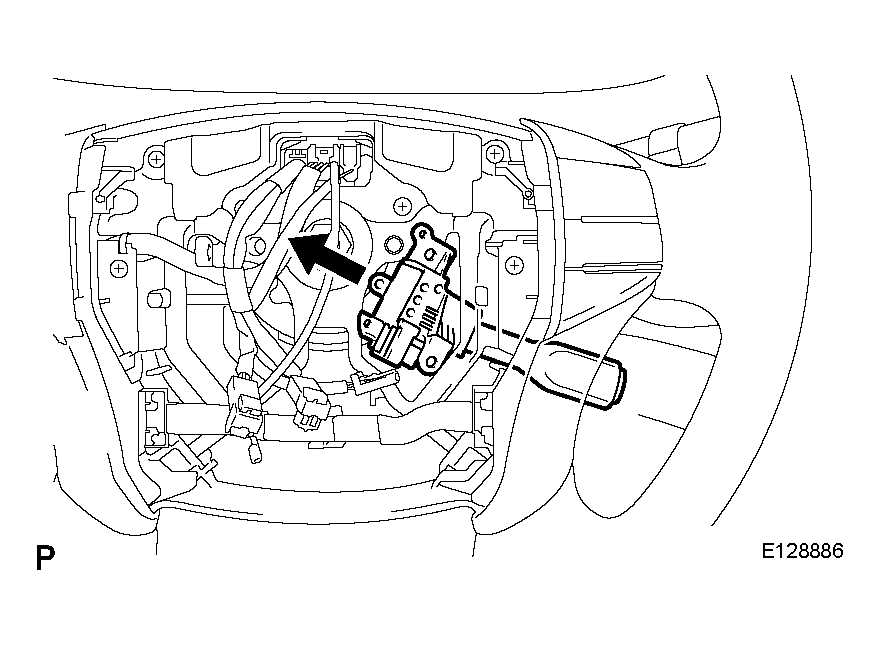

3. Pull out the cruise control main switch assembly in the direction shown by the arrow in Fig 2.

  Fig 2: Pulling Out Cruise Control Main Switch Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
