Distance Control Ecu: Installation

INSTALL DISTANCE CONTROL ECU ASSEMBLY
1. Install the bolt.

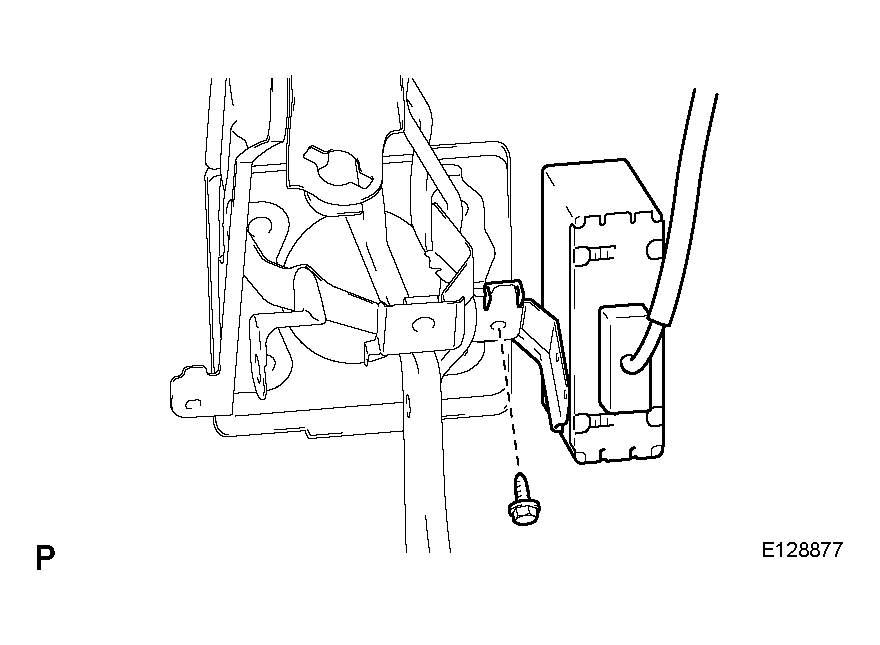

  Fig 1: Installing Bolt And Distance Control ECU Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)
2. Connect the connector.
INSTALL INSTRUMENT PANEL AIRBAG ASSEMBLY LOWER NO. 1 (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
NOTE: Some systems need initialization when disconnecting the cable from the negative battery terminal (See INITIALIZATION ).
INSPECT SRS WARNING LIGHT
(See CHECK MODE PROCEDURE )
