Distance Control Ecu: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait for 90 seconds after disconnecting the cable to prevent the airbag working (See PRECAUTION ).
  2. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH NO. 1 (See  REMOVAL  )
  3. REMOVE INSTRUMENT PANEL FINISH PLATE (See  REMOVAL  )
  4. REMOVE INSTRUMENT PANEL SUB-ASSEMBLY (See  REMOVAL  )
  5. REMOVE INSTRUMENT PANEL FINISH LOWER PANEL LH (See  REMOVAL  )
  6. REMOVE INSTRUMENT PANEL AIRBAG ASSEMBLY LOWER NO. 1 (See  REMOVAL  )
  7. REMOVE DISTANCE CONTROL ECU ASSEMBLY
    1. Disconnect the connector.
    2. Remove the bolt and the distance control ECU assembly.

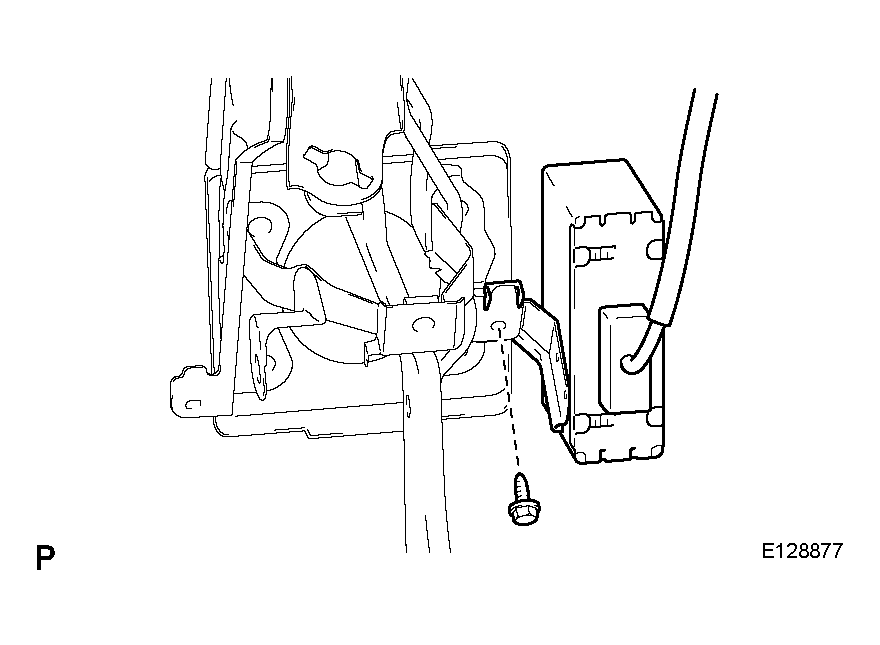

      Fig 1: Removing Bolt And Distance Control ECU Assembly
      G04375912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
