Distance Control Switch Circuit: Wiring Diagram

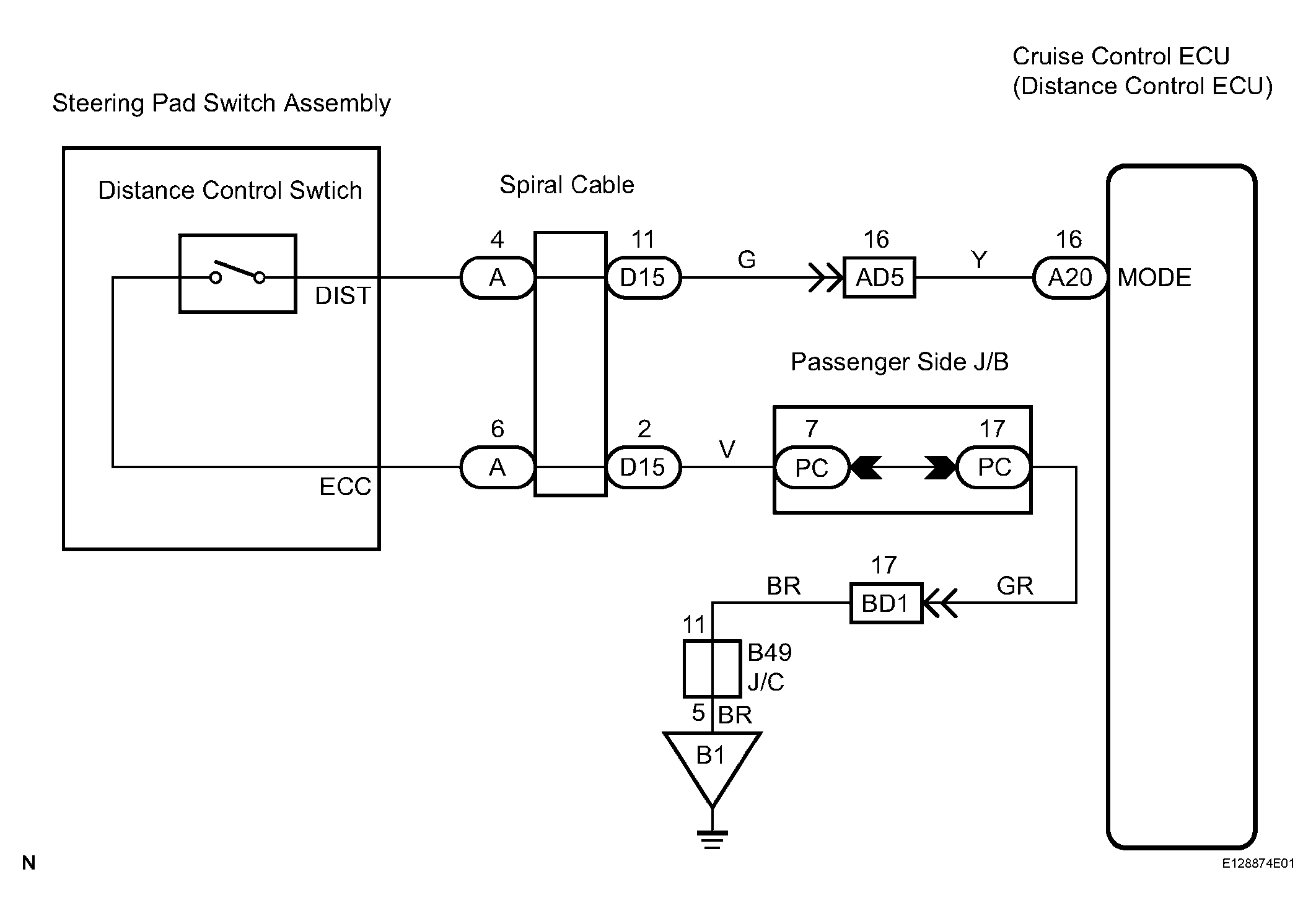

Fig 1: Wiring Diagram - Distance Control Switch Circuit
G04375891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
