Laser Sensor: Installation
- INSTALL LASER SENSOR

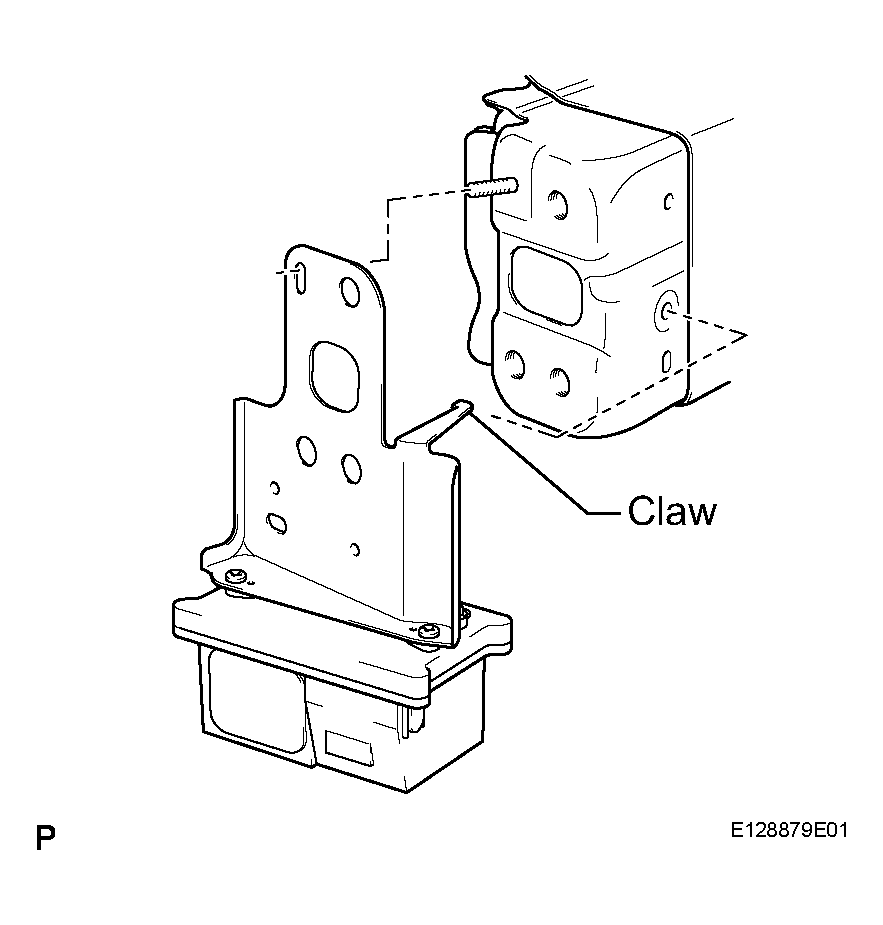

- Install the laser sensor so that the claw contacts the flat surface around the hole on the front bumper mounting reinforcement.
NOTE: Do not insert the claw into the hole on the front bumper mounting reinforcement.
- Engage the clamp.
- Install the laser sensor so that the claw contacts the flat surface around the hole on the front bumper mounting reinforcement.
- INSTALL FRONT BUMPER REINFORCEMENT (See DISASSEMBLY )
