Laser Sensor: Removal

  1. REMOVE RADIATOR GRILL SUB-ASSEMBLY (See  REMOVAL  )
  2. REMOVE FRONT BUMPER ASSEMBLY (See  REMOVAL  )
  3. REMOVE FRONT BUMPER ENERGY ABSORBER (See  REMOVAL  )
  4. REMOVE FRONT BUMPER REINFORCEMENT (See  REMOVAL  )
  5. REMOVE LASER SENSOR
    1. Disengage the clamp, then remove the laser sensor.

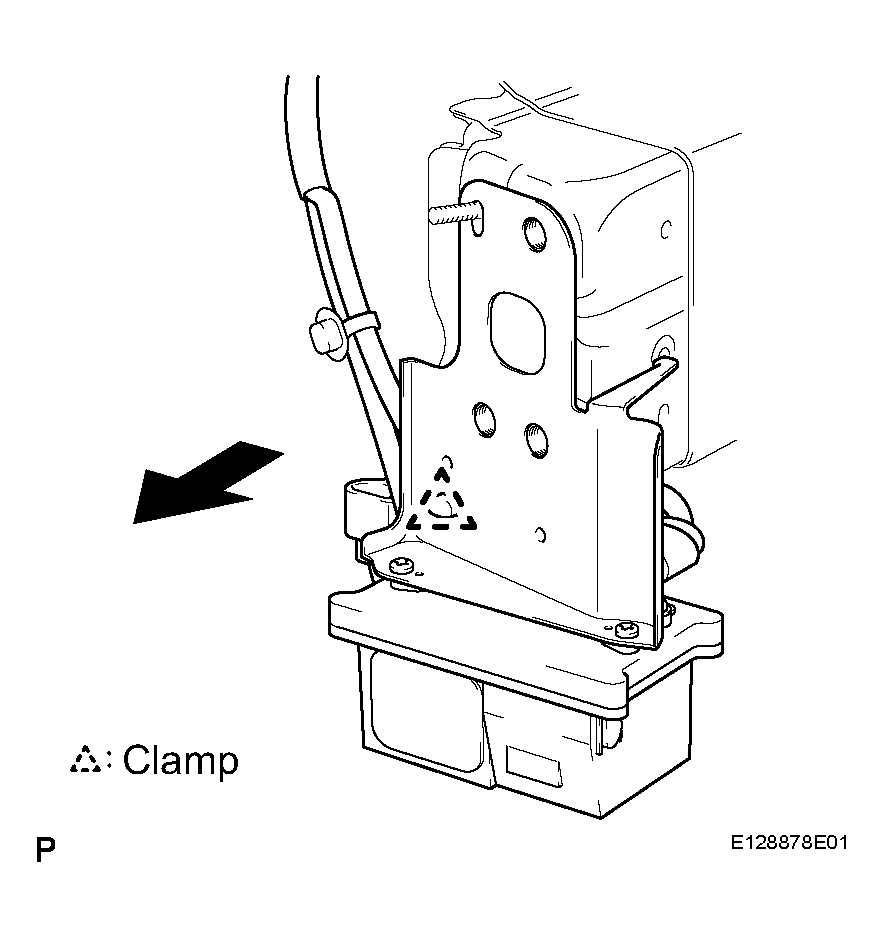

      Fig 1: Removing Laser Sensor
      G04375915Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
