Power Window Regulator Motor: Inspection

  1. INSPECT POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Driver Side)
    1. Check operation of the regulator motor.
      1. Remove the power window regulator motor assembly.
      2. Apply battery voltage to the motor terminals.
        NOTE: Do not apply voltage to the terminals except 1 and 2.
      3. Check that the motor operates smoothly.
        Fig 1: Identifying Power Window Regulator Motor Connector Terminals
        G04116033Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        OK

        POWER WINDOW REGULATOR MOTOR

        Measurement Condition Specified Condition
        Battery positive (+) -> Terminal 2 (U)
        Battery negative (-) -> Terminal 1 (D)        		 Motor gear rotates clockwise
        Battery positive (+) -> Terminal 1 (D)
        Battery negative (-) -> Terminal 2 (U)        		 Motor gear rotates counterclockwise
    2. Check the PTC operation inside the regulator motor.

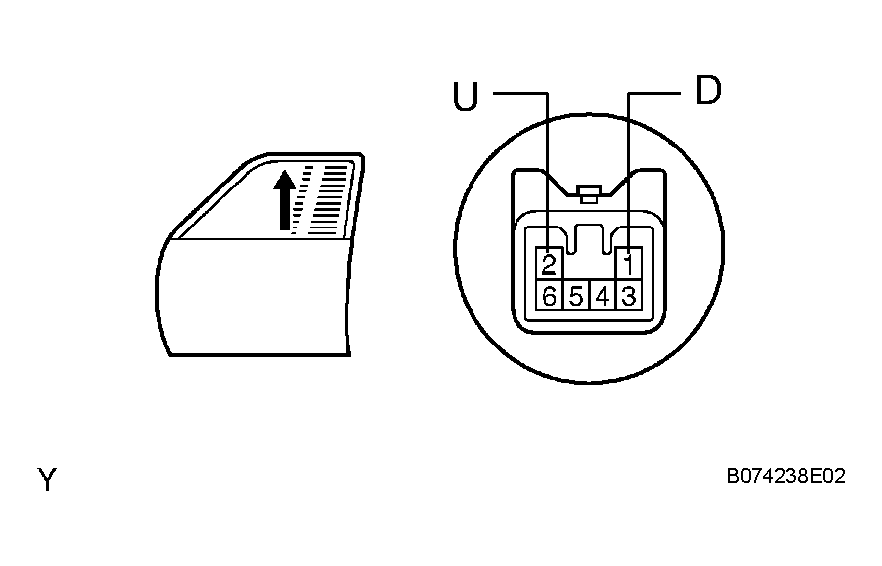

      Fig 2: Checking PTC Operation Inside Regulator Motor
      G04379141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: The work must be performed with the power window regulator and door glass installed in the vehicle.
      1. Disconnect the driver side power window regulator motor connector.
      2. Connect the ammeter's positive (+) lead to terminal 1 (D) of the wire harness side connector and the negative (-) lead to the battery's negative terminal.
      3. Connect the battery's positive (+) lead to terminal 2 (U) of the wire harness side connector, and raise the window to the fully closed position.
      4. Continue to apply voltage, and check that the current changes to less than 1 A within 4 to 90 seconds.
      5. Disconnect the leads from the terminals.
      6. Approximately 60 seconds later, connect the battery's positive (+) lead to terminal 1 (D) and the negative (-) lead to terminal 2 (U). Check that the window begins to descend. If the result is not as specified, replace the motor assembly.
  2. INSPECT POWER WINDOW REGULATOR MOTOR ASSEMBLY
    1. Check operation of the regulator motor.
      1. Remove the power window regulator motor assembly.
      2. Apply battery voltage to the motor terminals.
        NOTE: Do not apply voltage to the terminals except 1 and 2.
      3. Check that the motor operates smoothly.

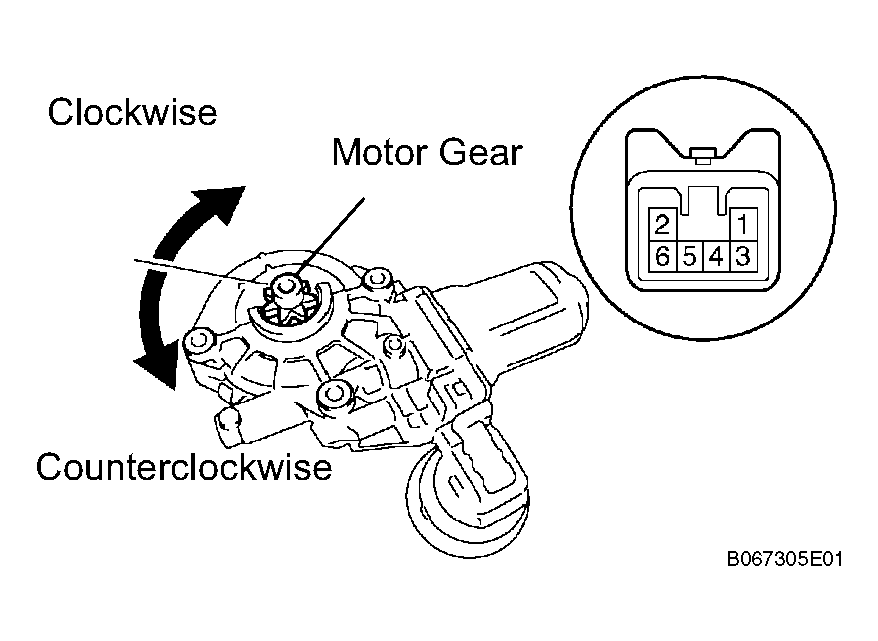

        Fig 3: Identifying Power Window Regulator Motor Connector Terminals
        G04116036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        OK

        POWER WINDOW REGULATOR MOTOR

        Measurement Condition Specified Condition
        Battery positive (+) -> Terminal 1 (D)
        Battery negative (-) -> Terminal 2 (U)        		 Motor gear rotates clockwise
        Battery positive (+) -> Terminal 2 (U)
        Battery negative (-) -> Terminal 1 (D)        		 Motor gear rotates counterclockwise
    2. Check the PTC operation inside the regulator motor.
      NOTE: The work must be performed with the power window regulator and door glass installed in the vehicle.
      1. Disconnect the driver side power window regulator motor connector.
      2. Connect the ammeter's positive (+) lead to terminal 2 (U) of the wire harness side connector and the negative (-) lead to the battery's negative terminal.
      3. Connect the battery's positive (+) lead to terminal 1 (D) of the wire harness side connector, and raise the window to the fully closed position.
        Fig 4: Checking PTC Operation Inside Regulator Motor
        G04379143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      4. Continue to apply voltage, and check that the current changes to less than 1 A within 4 to 90 seconds.
      5. Disconnect the leads from the terminals.
      6. Approximately 60 seconds later, connect the battery's positive (+) lead to terminal 2 (U) and the negative (-) lead to terminal 1 (D). Check that the window begins to descend.

        If the result is not as specified, replace the motor assembly.

  3. INSPECT POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Rear LH)
    1. Check operation of the regulator motor.
      1. Remove the power window regulator motor assembly.
      2. Apply battery voltage to the motor terminals.
        NOTE: Do not apply voltage to the terminals except 1 and 2.
      3. Check that the motor operates smoothly.
        Fig 5: Identifying Power Window Regulator Motor Connector Terminals
        G04116033Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        OK

        POWER WINDOW REGULATOR MOTOR

        Measurement Condition Specified Condition
        Battery positive (+) -> Terminal 2 (D)
        Battery negative (-) -> Terminal 1 (U)        		 Motor gear rotates clockwise
        Battery positive (+) -> Terminal 1 (U)
        Battery negative (-) -> Terminal 2 (D)        		 Motor gear rotates counterclockwise
    2. Check the PTC operation inside the regulator motor.
      Fig 6: Checking PTC Operation Inside Regulator Motor
      G04379145Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: The work must be performed with the power window regulator and door glass installed in the vehicle.
      1. Disconnect the driver side power window regulator motor connector.
      2. Connect the ammeter's positive (+) lead to terminal 1 (U) of the wire harness side connector and the negative (-) lead to the battery's negative terminal.
      3. Connect the battery's positive (+) lead to terminal 2 (D) of the wire harness side connector, and raise the window to the fully closed position.
      4. Continue to apply voltage, and check that the current changes to less than 1 A within 4 to 90 seconds.
      5. Disconnect the leads from the terminals.
      6. Approximately 60 seconds later, connect the battery's positive (+) lead to terminal 1 (U) and the negative (-) lead to terminal 2 (D). Check that the window begins to descend.

        If the result is not as specified, replace the motor assembly.

  4. INSPECT POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Rear RH)
    1. Check operation of the regulator motor.
      Fig 7: Identifying Power Window Regulator Motor Connector Terminals
      G04116036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the power window regulator motor assembly.
      2. Apply battery voltage to the motor terminals.
        NOTE: Do not apply voltage to the terminals except 1 and 2.
      3. Check that the motor operates smoothly.

        OK

        POWER WINDOW REGULATOR MOTOR

        Measurement Condition Specified Condition
        Battery positive (+) -> Terminal 1 (U)
        Battery negative (-) -> Terminal 2 (D)        		 Motor gear rotates clockwise
        Battery positive (+) -> Terminal 2 (D)
        Battery negative (-) -> Terminal 1 (U)        		 Motor gear rotates counterclockwise
    2. Check the PTC operation inside the regulator motor.

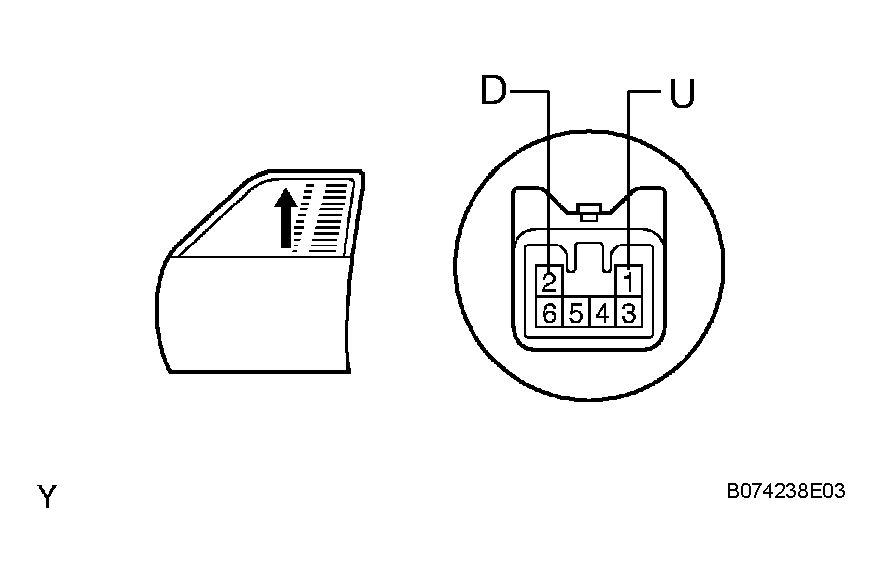

      Fig 8: Checking PTC Operation Inside Regulator Motor
      G04379147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: The work must be performed with the power window regulator and door glass installed in the vehicle.
      1. Disconnect the driver side power window regulator motor connector.
      2. Connect the ammeter's positive (+) lead to terminal 2 (D) of the wire harness side connector and the negative (-) lead to the battery's negative terminal.
      3. Connect the battery's positive (+) lead to terminal 1 (U) of the wire harness side connector, and raise the window to the fully closed position.
      4. Continue to apply voltage, and check that the current changes to less than 1 A within 4 to 90 seconds.
      5. Disconnect the leads from the terminals.
      6. Approximately 60 seconds later, connect the battery's positive (+) lead to terminal 2 (D) and the negative (-) lead to terminal 1 (U). Check that the window begins to descend.

        If the result is not as specified, replace the motor assembly.
