Windshield Glass: Components

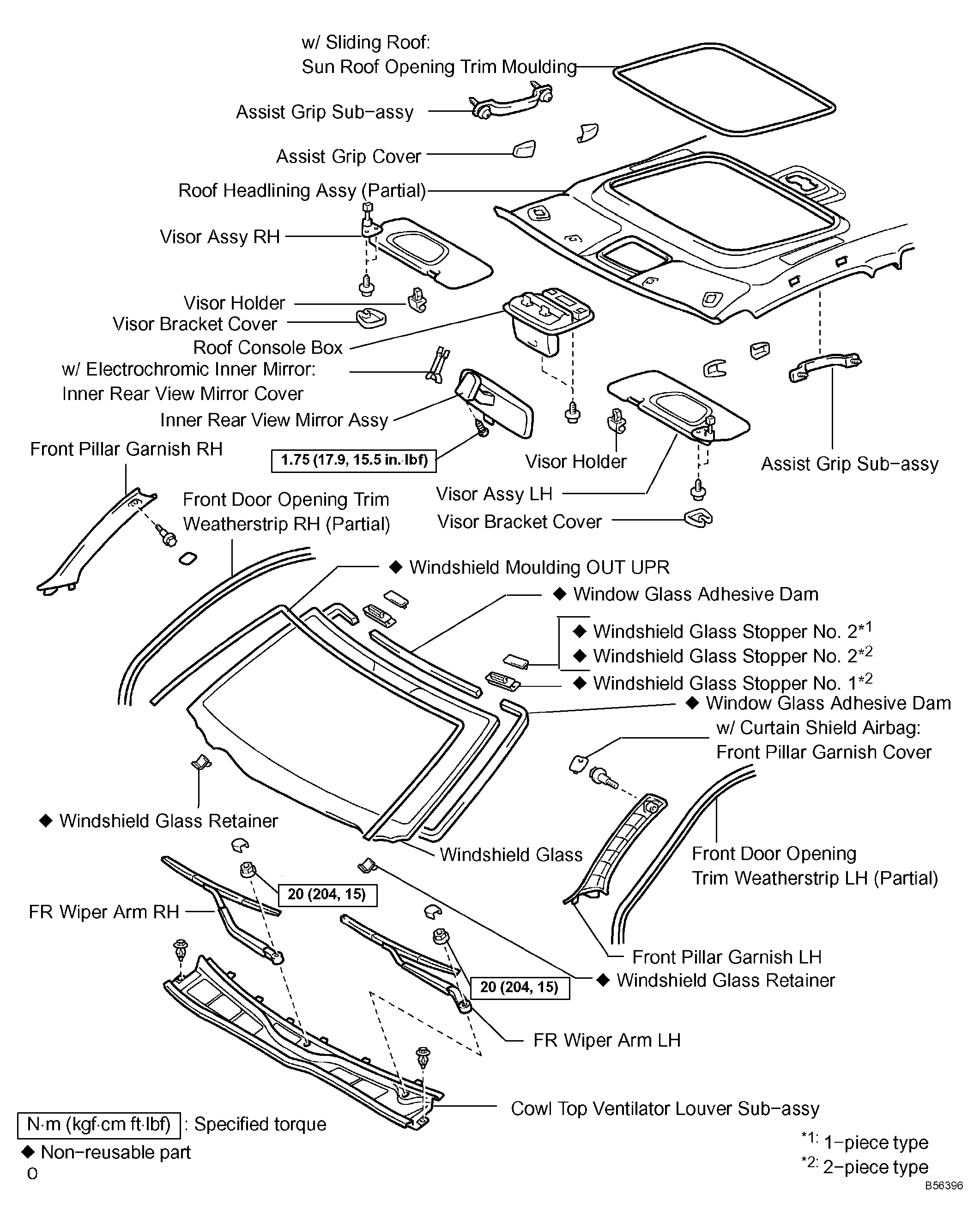

Fig 1: Identifying Windshield Glass Components
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
