Cruise Control Main Switch ASSY: Replacement

HINT:

Installation is in the reverse order of removal.

1. DISCONNECT BATTERY NEGATIVE TERMINAL (SEE  PRECAUTION  )
2. REMOVE STEERING WHEEL COVER LOWER NO. 2
3. REMOVE STEERING WHEEL COVER LOWER NO. 3
4. REMOVE HORN BUTTON ASSY (SEE  REPLACEMENT  )
5. REMOVE CRUISE CONTROL MAIN SWITCH ASSY
   1. Disconnect the connector.
   2. Remove the 2 screws.

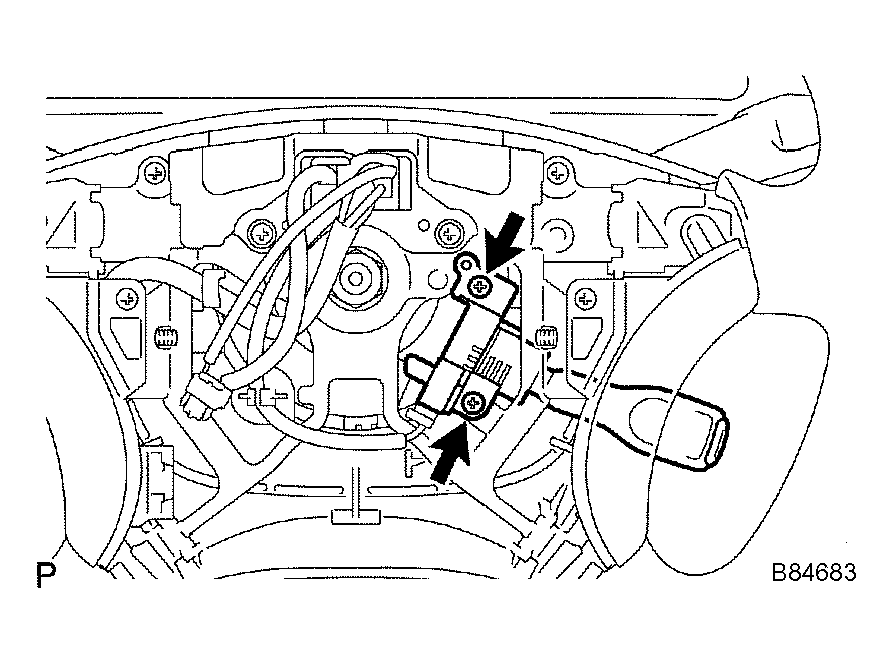

      Fig 1: Identifying Cruise Control Main Switch Assy Screws

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Pull out the cruise control main switch assy in the direction shown by the arrow in the illustration.

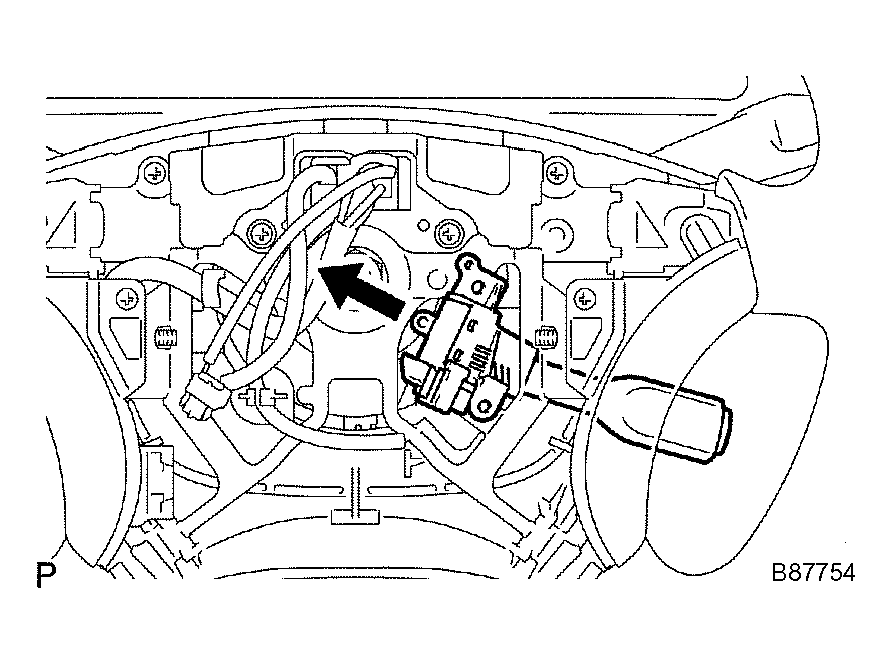

   Fig 2: Pulling Out Cruise Control Main Switch Assy

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. INSTALL HORN BUTTON ASSY (SEE  REPLACEMENT  )
7. INSPECT HORN BUTTON ASSY (SEE  ON-VEHICLE INSPECTION  )
8. CONNECT BATTERY NEGATIVE TERMINAL
9. INSPECT SRS WARNING LIGHT (SEE  DIAGNOSIS SYSTEM  )
