Audio & Visual System: Location

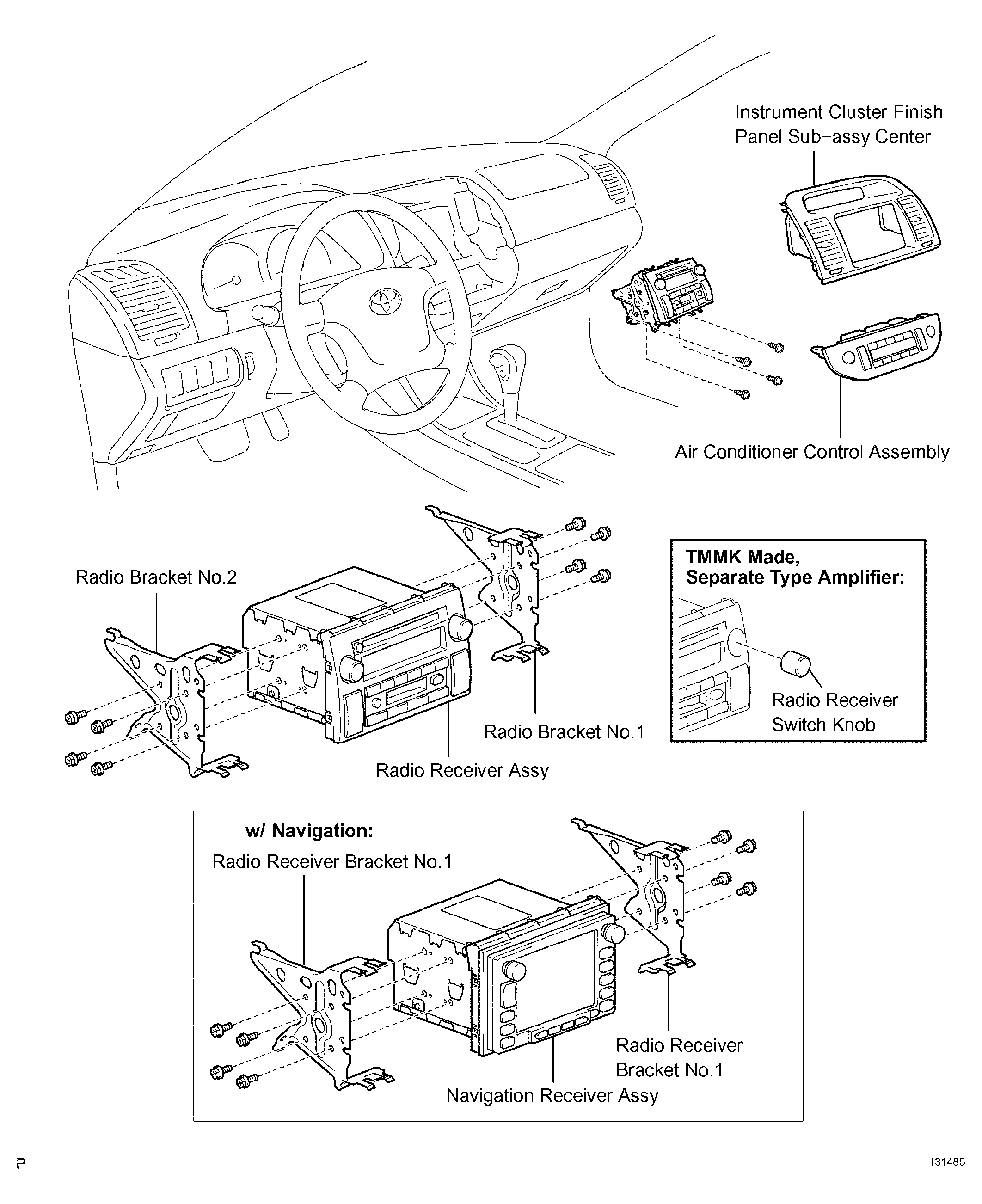

Fig 1: Identifying Audio & Visual System Components (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

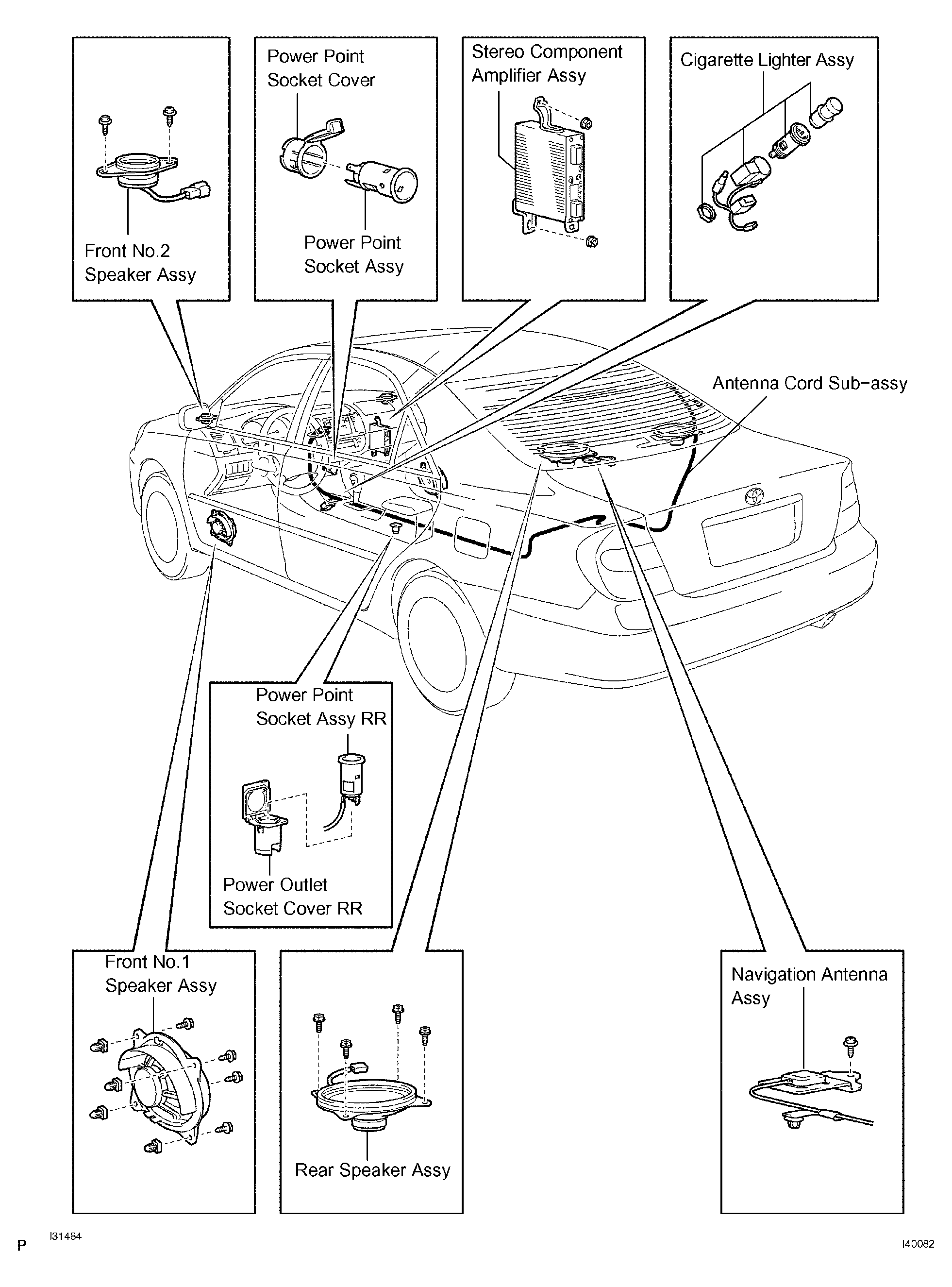

Fig 2: Identifying Audio & Visual System Components (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

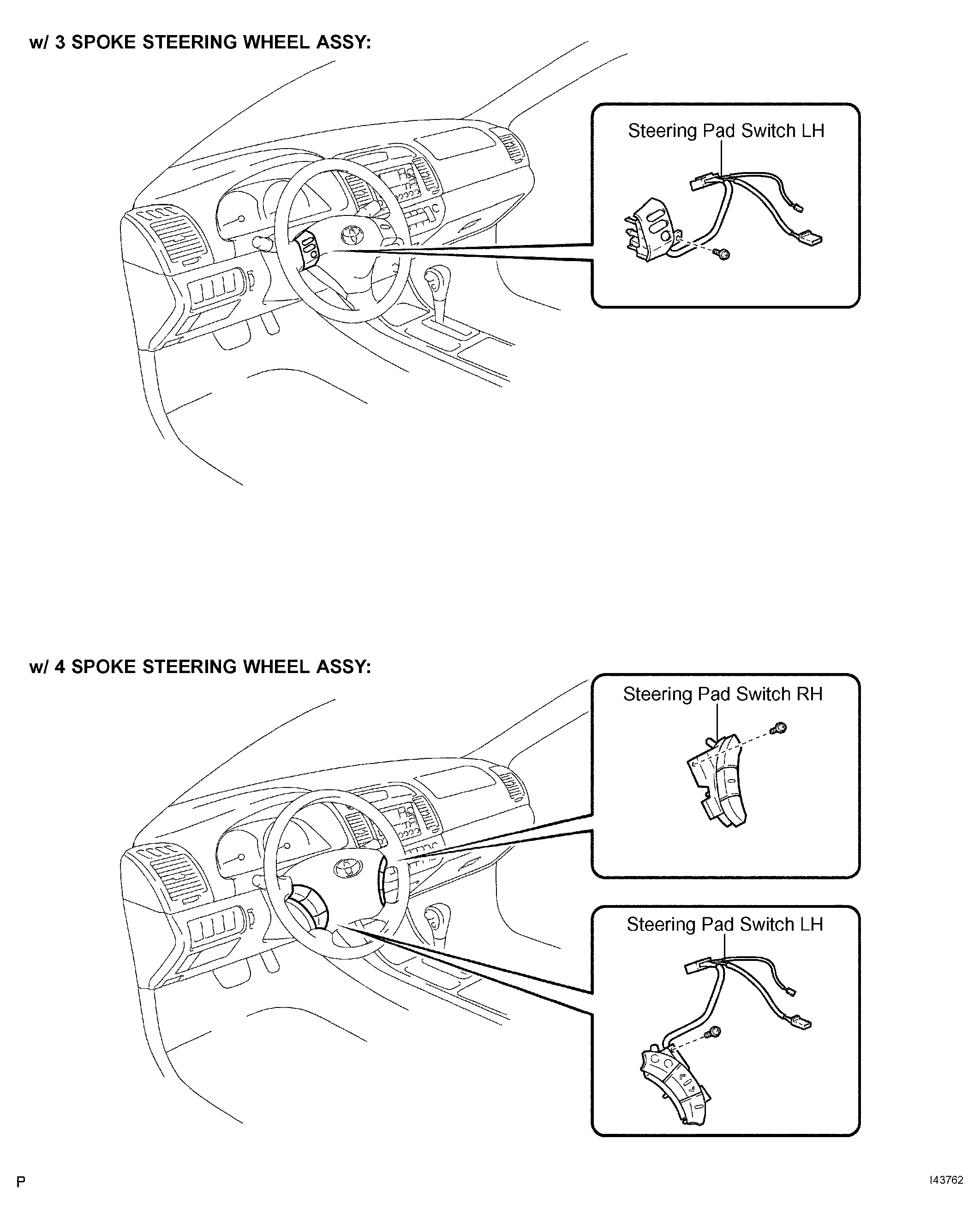

Fig 3: Identifying Audio & Visual System Components (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
