Navigation Receiver ASSY: Replacement

HINT:

COMPONENTS: See AUDIO & VISUAL SYSTEM

1. REMOVE AIR CONDITIONER CONTROL ASSEMBLY (See  REPLACEMENT  )
2. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER (See  REPLACEMENT  )
3. REMOVE NAVIGATION RECEIVER ASSY
   1. Insert a screwdriver at indicated point and remove the navigation receiver assy from instrument cluster finish panel sub-assy.

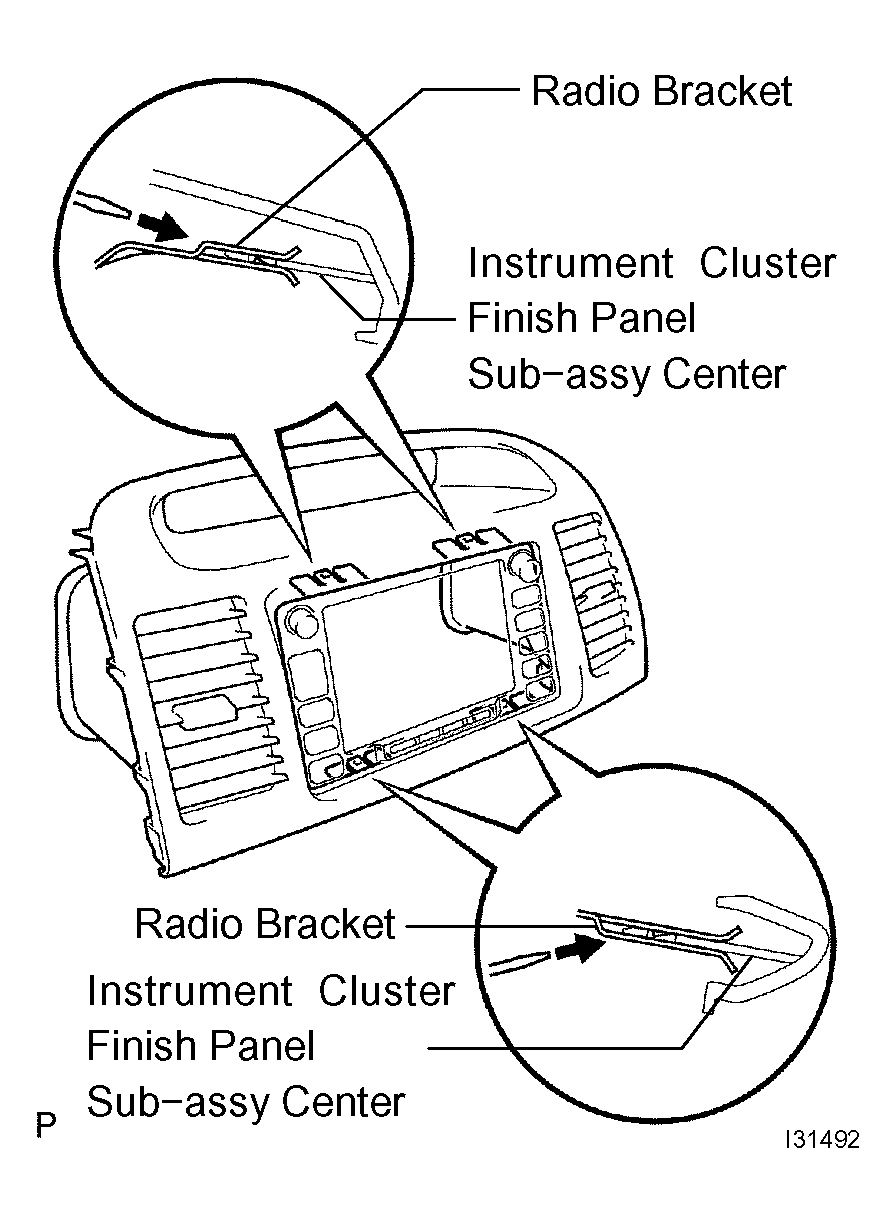

   Fig 1: Identifying Radio Bracket And Instrument Cluster Finish Panel Sub-Assy

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. REMOVE RADIO BRACKET NO. 1
   1. Remove the 4 screws and radio receiver bracket No. 1.
   Fig 2: Identifying Radio Bracket No. 1 Screws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. REMOVE RADIO BRACKET NO. 2
   1. Remove the 4 screws and radio receiver bracket No. 2.
   Fig 3: Identifying Radio Bracket No. 2 Screws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
