ABS (TMMK Made): Notes

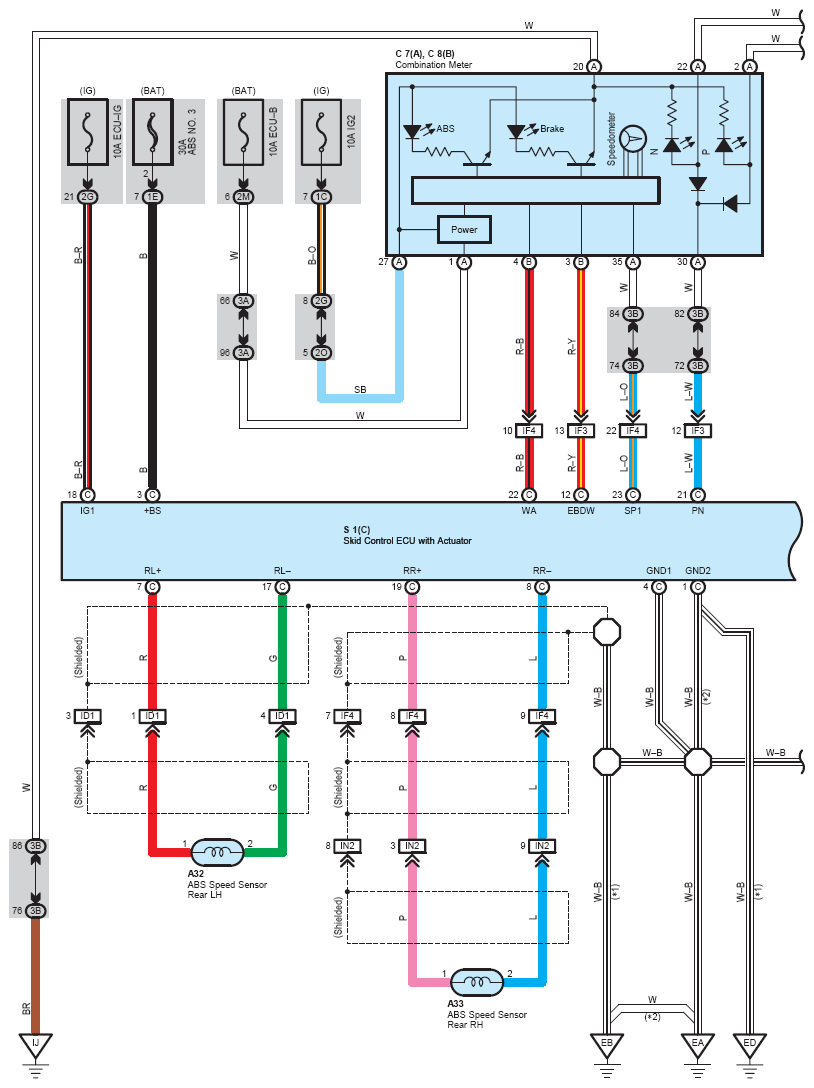

Fig 1: ABS System Wiring Diagram (TMMK Made, 1 Of 2)
G08775619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

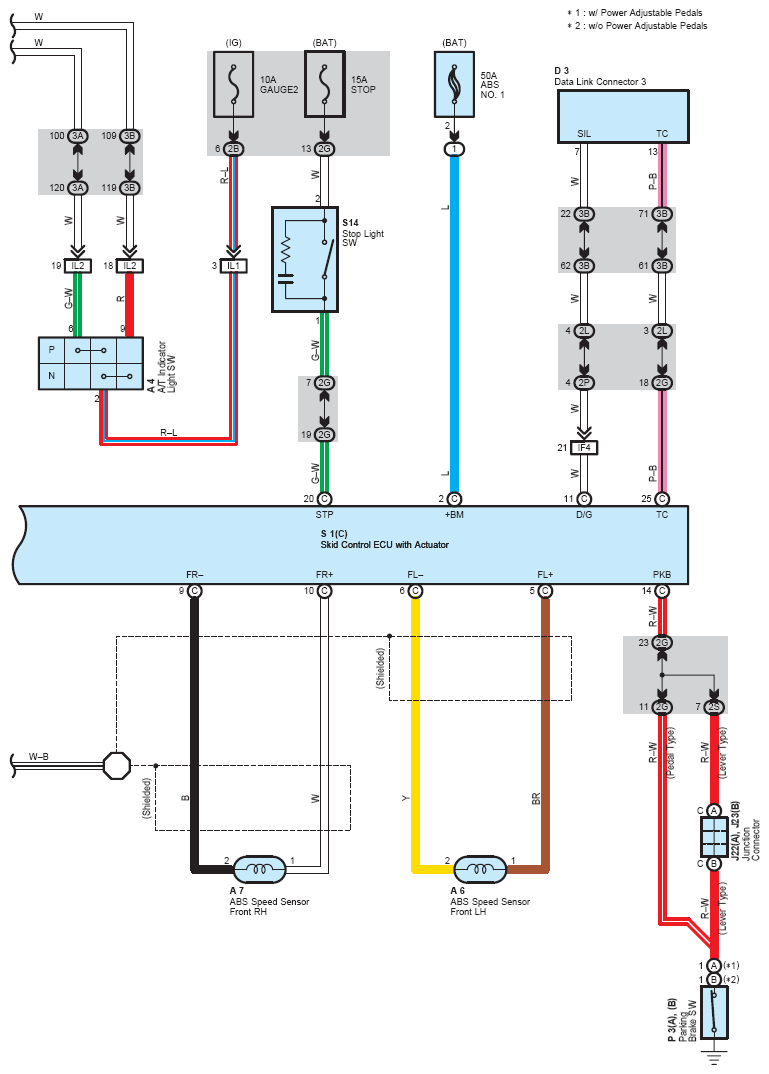

Fig 2: ABS System Wiring Diagram (TMMK Made, 2 Of 2)
G08775620Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
