Floor Shift Cable Transmission Control Select: Replacement

  1. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSY (See step 41 on  REPLACEMENT  )
  2. REMOVE AIR CONDITIONING RADIATOR ASSY (See step 21 on  OVERHAUL  )
  3. REMOVE AIR BAG SENSOR ASSY CENTER (See step 12 on  REPLACEMENT  )
  4. REMOVE FLOOR SHIFT CABLE TRANSMISSION CONTROL SELECT
    1. Remove the clip and washer and separate the top of the select cable from the transaxle.
    2. Remove the clip and select cable from the control cable bracket.
    3. Turn the lock and separate the select cable from the shift lever retainer.
    4. Remove the clip and separate the top of the select cable from the shift lever assy.
    5. Remove the 2 retainer set bolts from the floor.
    6. Separate the retainer from the grommet.
    7. Remove the select cable from the grommet.
    8. Remove the select cable through the floor hole and retainer.
      9. Fig 1: Removing Floor Shift Cable Transmission Control Select
      G04393452Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL FLOOR SHIFT CABLE TRANSMISSION CONTROL SELECT
    1. Put the select cable through the floor hole and retainer.
    2. Install the select cable to the grommet.
    3. Install the retainer to the grommet.
      NOTE: Fit 3 projections of the grommet into 3 holes of the retainer.
    4. Install the 2 retainer set bolts.

      Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf)

      Fig 2: Installing Floor Shift Cable Transmission Control Select
      G04393453Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Connect the select cable to the shift lever retainer.
      NOTE:
      • The projecting part of the cable outer should face upward when the select cable is installed.
      • Make sure that after installation the cable outer lock is projecting from A shown in the illustration.

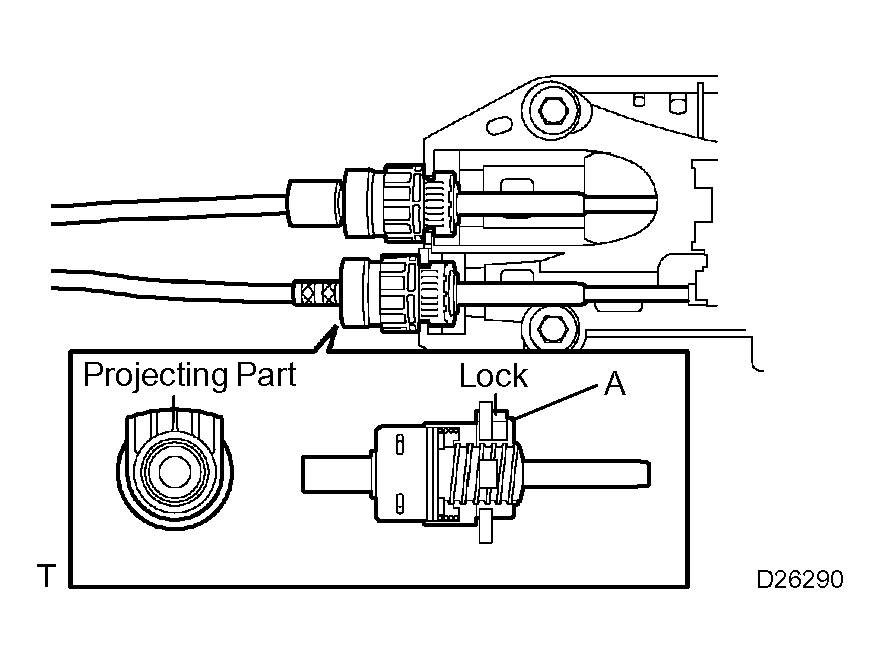

      Fig 3: Connecting Select Cable To Shift Lever Retainer
      G04393454Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Connect the top of the select cable to the shift lever assy and install the clip.
      NOTE:
      • The serrate part of the select cable point should face upward when the select cable point is connected.
      • The clip should be inserted to the direction shown in the illustration.
    7. Connect the top of the select cable to the shift lever assy and install the clip.
    8. Connect the select cable to the control cable bracket and install a new clip.
    9. Connect the select cable to the transaxle and install the washer and clip.

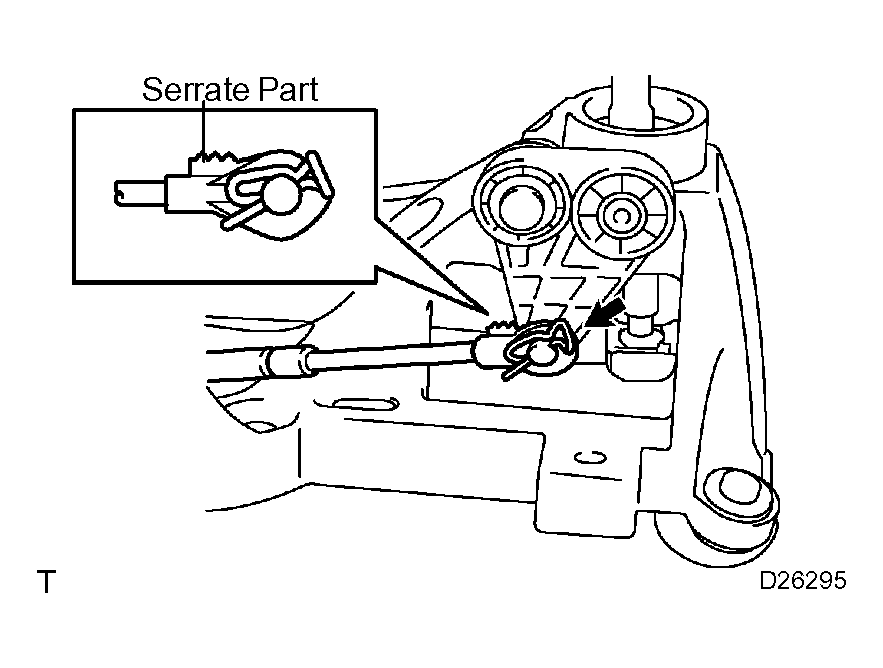

    Fig 4: Connecting Top Of Select Cable To Shift Lever Assy
    G04393455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL AIR BAG SENSOR ASSY CENTER (See step 14 on  REPLACEMENT  )
  7. INSTALL AIR CONDITIONING RADIATOR ASSY (See step 32 on  OVERHAUL  )
  8. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSY (See step 58 on  REPLACEMENT  )
  9. INSPECT SRS WARNING LIGHT (See step 5 on  DIAGNOSIS SYSTEM  )
