Engine Control System (3MZ-FE): ECM: Installation

  1. INSTALL ECM BRACKET NO. 2
    1. Install the ECM bracket with the 2 screws.
      Fig 1: Installing ECM Bracket No. 2
      G04382703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL ECM BRACKET
    1. Install the ECM bracket with the 2 screws.
      Fig 2: Installing ECM Bracket
      G04382704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL ECM
    1. Install the 2 wire harness clamps.
    2. Connect the 5 ECM connectors.
    3. Install the ECM with the 2 nuts.

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

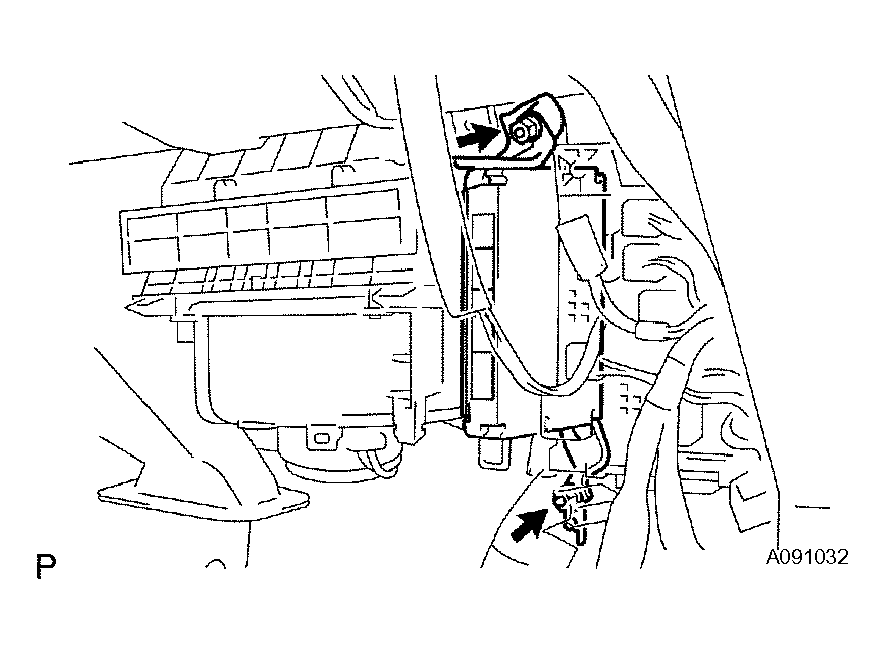

      Fig 3: Installing ECM
      G04382705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL INSTRUMENT PANEL FINISH LOWER PANEL RH
  5. INSTALL INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY NO. 1
  6. INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH
  7. INSTALL FRONT DOOR SCUFF PLATE RH
  8. CONNECT BATTERY NEGATIVE TERMINAL
  9. INITIALIZE SYSTEM
