Engine Control System (3MZ-FE): ECM: Removal

DISCONNECT BATTERY NEGATIVE TERMINAL
REMOVE FRONT DOOR SCUFF PLATE RH (for Coupe) (See step 2 in REMOVAL )
REMOVE FRONT DOOR SCUFF PLATE RH (for Convertible) (See step 2 in REMOVAL )
REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH (for Coupe) (See step 4 in REMOVAL )
REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH (for Convertible) (See step 4 in REMOVAL )
REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (See step 33 in REMOVAL )
REMOVE INSTRUMENT PANEL FINISH LOWER PANEL RH (See step 25 in REMOVAL )
REMOVE ECM
1. Remove the 2 wire harness clamps.
2. Disconnect the 5 ECM connectors.
3. Remove the 2 nuts and ECM.

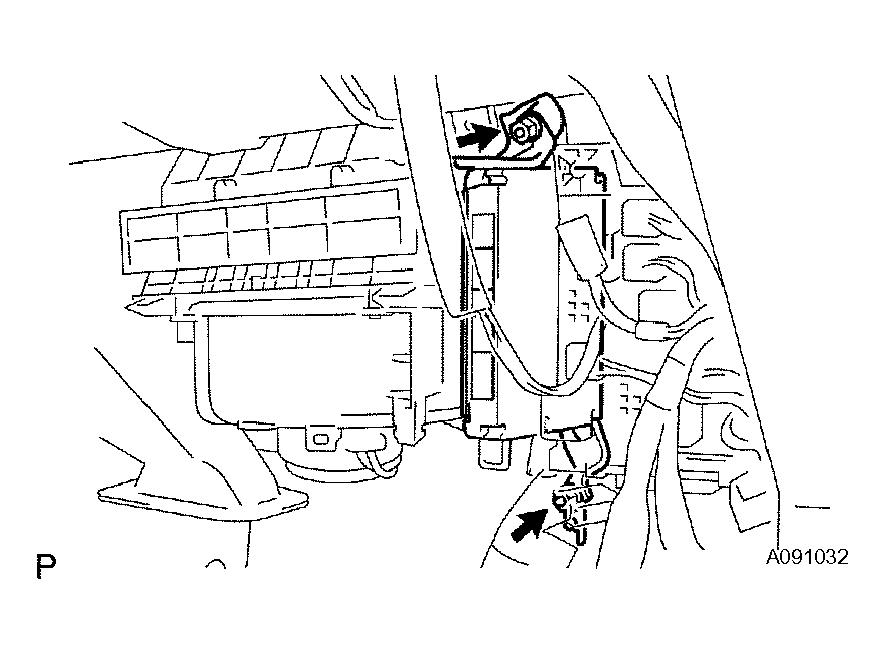

  Fig 1: Removing ECM
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE ECM BRACKET
1. Remove the 2 screws and ECM bracket.

  Fig 2: Removing ECM Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE ECM BRACKET NO. 2
1. Remove the 2 screws and ECM bracket.

  Fig 3: Removing ECM Bracket No. 2
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
