LEV II EVAP Monitor Sequence

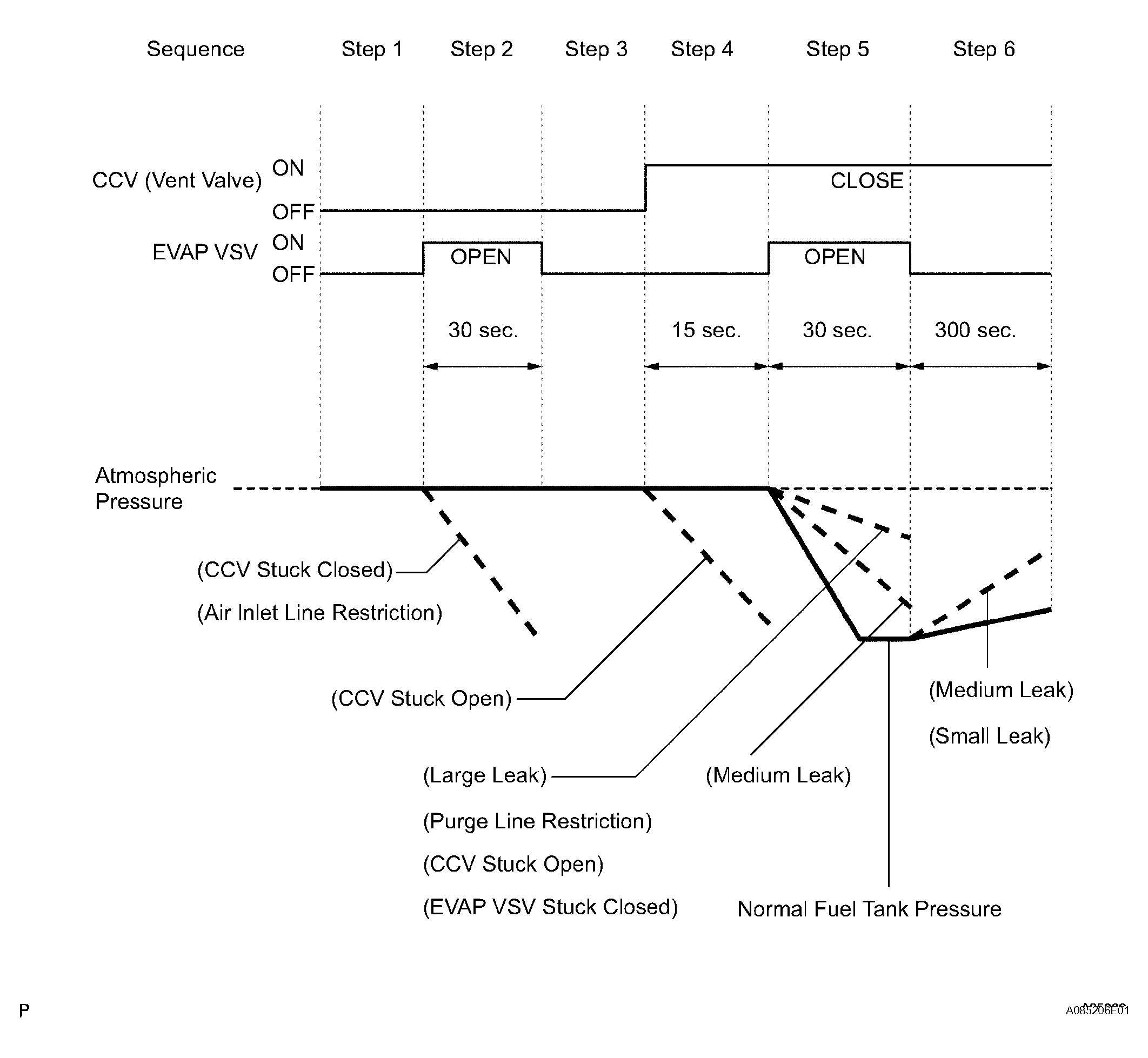

Fig 1: Identifying LEV II EVAP Monitor Sequence Monitor Description
G04382610Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Related DTCs

RELATED DTCS

DTCs Monitoring Item
P0441 EVAP VSV stuck closed
EVAP VSV stuck open
P0442 EVAP small leak (0.04 inch)
P0446 Vent valve (CCV) stuck closed
CCV stuck open
P0451 Fuel tank pressure (FTP) sensor malfunction
P0452 FTP sensor low output
P0453 FTP sensor high output
P0455 EVAP gross leak
P0456 EVAP small leak (0.02 inch)
