EVAP System: Wiring Diagram

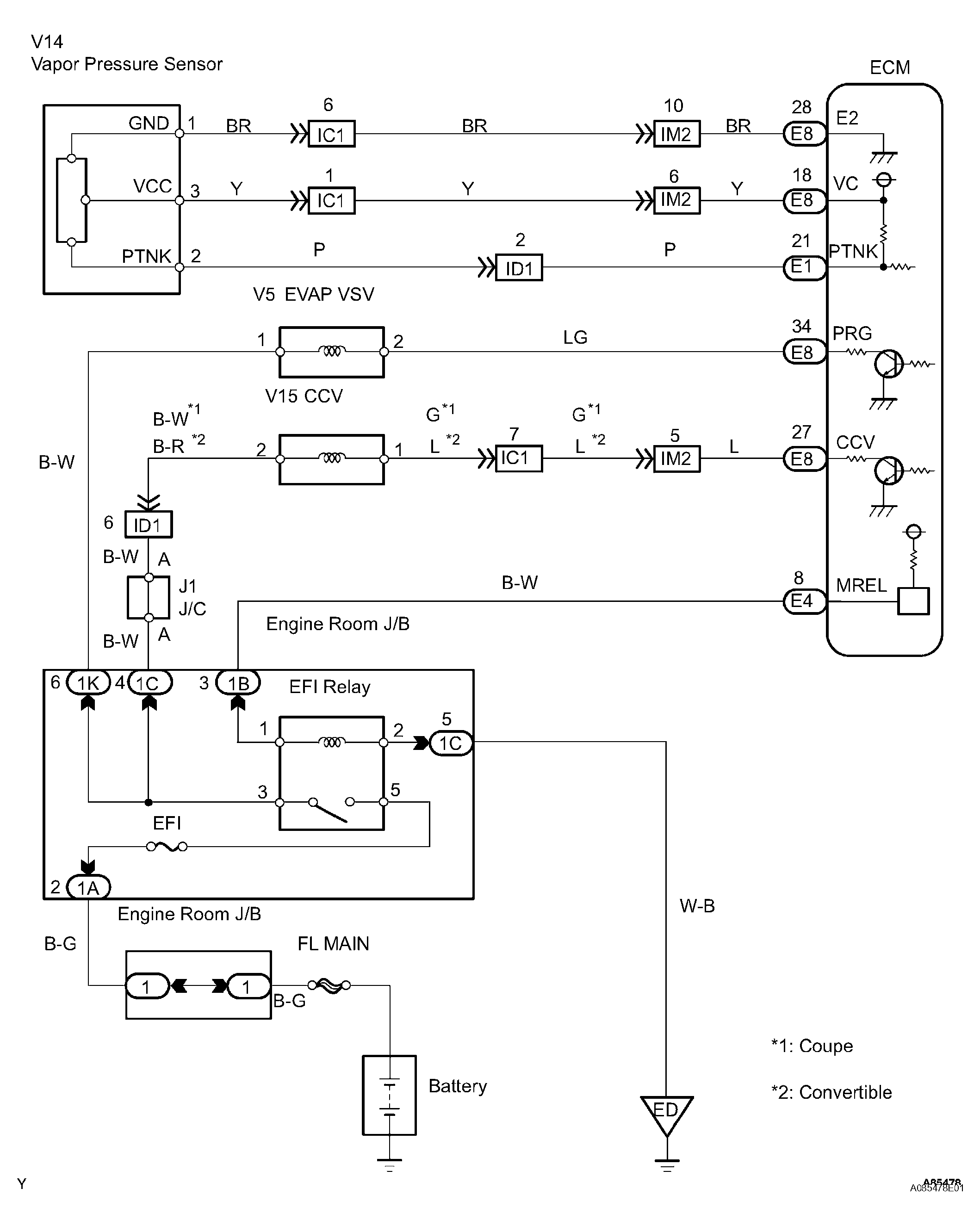

Fig 1: EVAP System Wiring Diagram
G04382611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
