Inspection Procedure
When using intelligent tester:
- PERFORM ACTIVE TEST BY HAND-HELD TESTER (OPERATE C/OPN RELAY)
- Connect the intelligent tester to the DLC3.
- Turn the ignition switch ON, push the intelligent tester or OBD II scan tool main switch ON.
- Enter the following menus: DIAGNOSIS/ENHANCED OBD II/ACTIVE TEST/FUEL PUMP/SPD.
- Check the relay operation while operating it using the intelligent tester.
Standard: Operating noise can be heard from the relay.
- OK: Go to step 5
- NG: GO TO NEXT STEP
- INSPECT RELAY (Marking: C/OPN)
- Remove the C/OPN relay from the engine room J/B.
- Measure the resistance of the C/OPN relay.
Resistance:
RELAY (MARKING: C/OPN)Tester Connection Specified Condition 3 - 5 10 k ohms or higher 3 - 5 Below 1 ohms(when battery voltage is applied to terminals 1 and 2)
- NG: REPLACE RELAY
- OK: GO TO NEXT STEP
- CHECK ECM (FC VOLTAGE)
- Turn the ignition switch ON.
- Measure the voltage of the ECM connectors.
Voltage:
ECM (FC VOLTAGE)Tester Connection Specified Condition E4-10 (FC) - E6-1 (E1) 9 to 14 V
- OK: REPLACE ECM
- NG: GO TO NEXT STEP
- CHECK WIRE HARNESS (ECM - C/OPN RELAY, C/OPN RELAY - IGNITION)
- Check the wire harness between the ECM and C/OPN relay.
- Disconnect the E4 ECM connector.
- Remove the C/OPN relay from the engine room J/B.
- Measure the resistance of the wire harness side connectors.
Resistance:

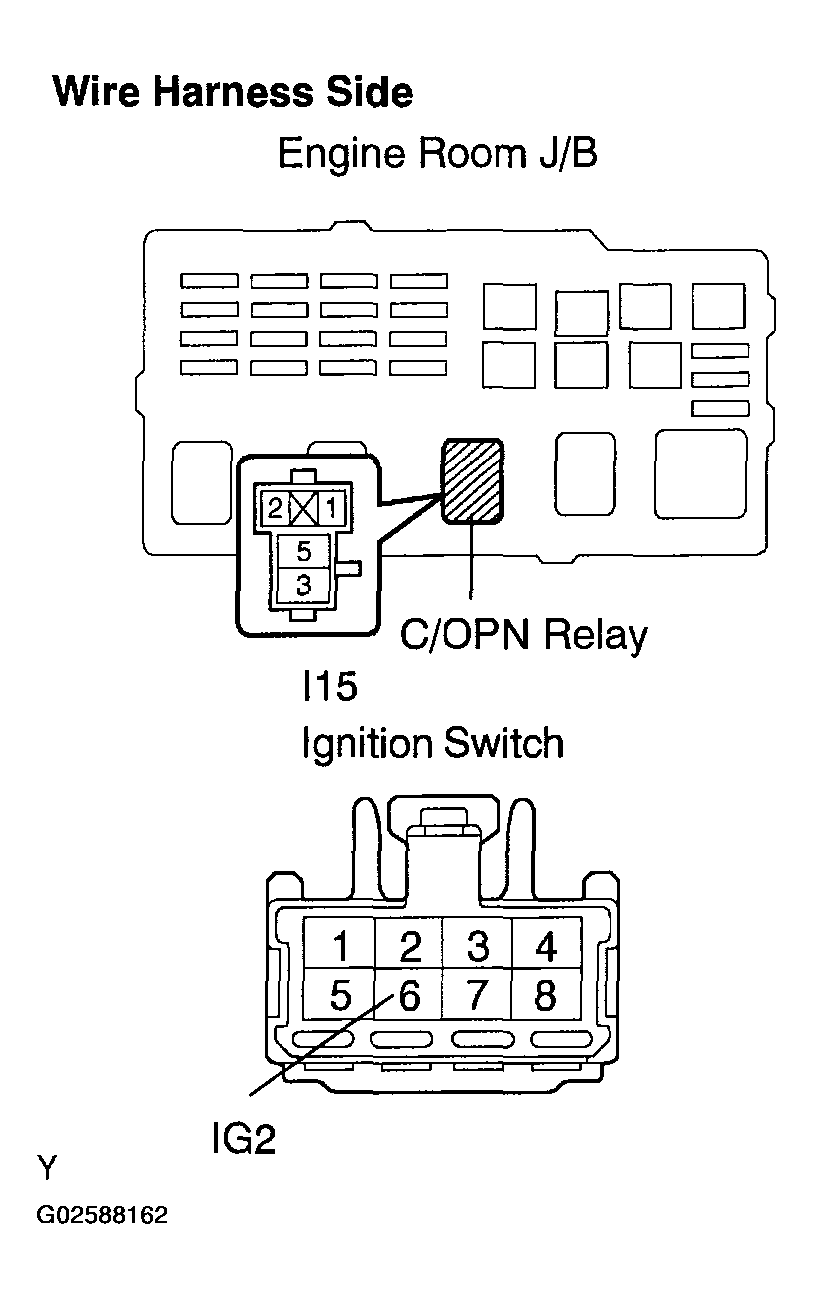

ECM AND C/OPN RELAYTester Connection Specified Condition E4-10 (FC) - 2 of C/OPN relay Below 1 ohms E4-10 (FC) or 2 of C/OPN relay - Body ground 10 k ohms or higher - Check the wire harness between the C/OPN relay and ignition switch.
- Check the IG2 fuse.
- Remove the IG2 fuse from the engine room J/B.
- Measure the resistance of the IG2 fuse.
Resistance: Below 1 ohms
- Reinstall the IG2 fuse.
- Remove the C/OPN relay from the engine room J/B.
- Disconnect the I15 ignition switch connector.
- Measure the resistance of the wire harness side connectors.
Resistance:
C/OPN RELAY AND IGNITION SWITCHTester Connection Specified Condition J/B C/OPN relay terminal 1 - I15-6 Below 1 ohms J/B C/OPN relay terminal 1 or I15-6 - Body ground 10 k ohms or higher - Check the IG2 fuse.
- NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
- OK: REPLACE ECM
- Check the wire harness between the ECM and C/OPN relay.
- INSPECT FUEL PUMP
- Check the resistance of the fuel pump.

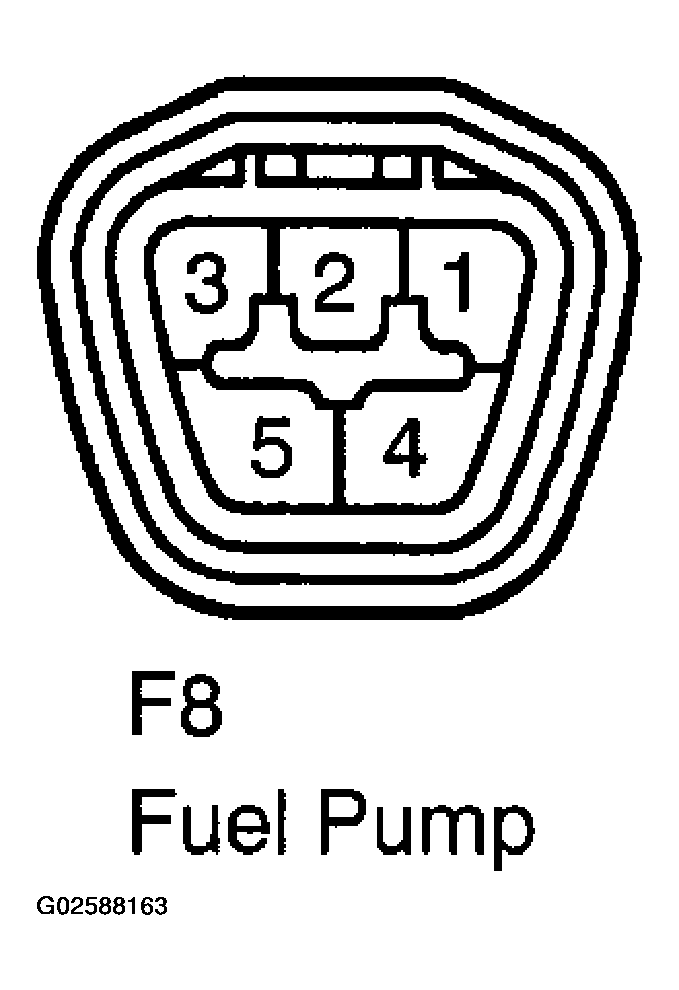

- Measure the resistance between terminals 4 and 5.
Resistance:
FUEL PUMPTester Connection Condition Specified Condition 4 - 5 20°C (68°F) 0.2 to 0.3 - Check the fuel pump operation
- Apply battery voltage to both the terminals. Check that the pump operates.
NOTE:- These tests must be done quickly (within 10 seconds) to prevent the coil from burning out.
- Keep the fuel pump as far away from the battery as possible.
- Always turn on and off the voltage on the battery side, not the fuel pump side.
- NG: REPLACE FUEL PUMP
- OK: GO TO NEXT STEP
- Check the resistance of the fuel pump.
- CHECK WIRE HARNESS (C/OPN RELAY - FUEL PUMP, FUEL PUMP - BODY GROUND)

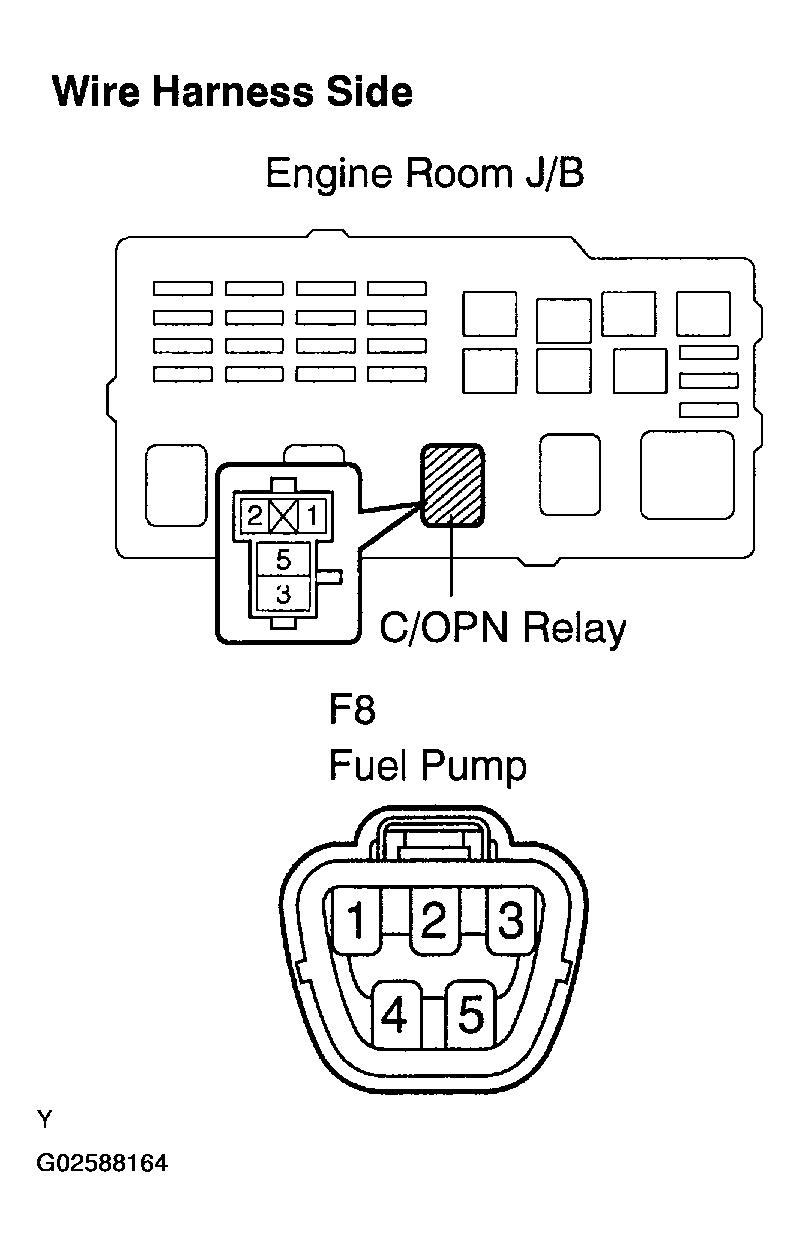

- Check the wire harness between the C/OPN relay and fuel pump.
- Remove the C/OPN relay from the engine room J/B.
- Disconnect the F8 fuel pump connector.
- Measure the resistance of the wire harness side connectors.
Resistance:
C/OPN RELAY AND FUEL PUMPTester Connection Specified Condition J/B C/OPN relay terminal 3 - F8-4 Below 1 ohms J/B C/OPN relay terminal 3 or F8-4 - Body ground 10 k ohms or higher - Check the wire harness between the fuel pump and body ground.
- Disconnect the F8 fuel pump connector.
- Measure the resistance between the wire harness side connectors and body ground.
Resistance:
FUEL PUMP AND BODY GROUNDTester Connection Specified Condition F8-5 (Fuel pump) - Body ground Below 1 ohms
- NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
- OK: REPLACE ECM
- Check the wire harness between the C/OPN relay and fuel pump.
When using OBD II Scan Tool:
- CHECK FUEL PUMP OPERATION
- Check if there is pressure in the fuel inlet hose.
HINT:
The pipe has fuel pressure if the sound of flowing fuel can be heard.
- OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE
- NG: GO TO NEXT STEP
- CHECK RELAY OPERATION (C/OPN)

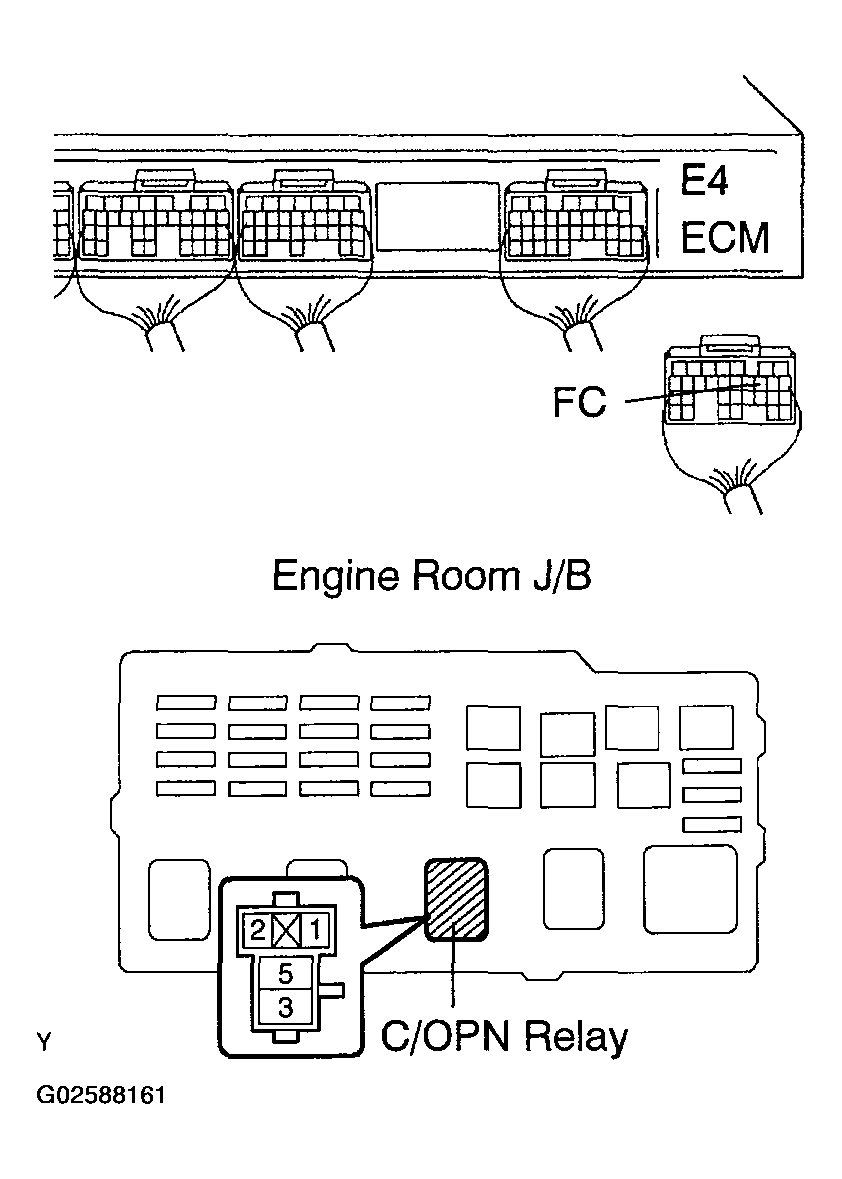

- Connect terminal FC of the E4 ECM connector and the body ground, and check the relay operation.
Standard:
Noise can be heard from the C/OPN relay.
- OK: Go to step 6
- NG: GO TO NEXT STEP
- Connect terminal FC of the E4 ECM connector and the body ground, and check the relay operation.
- INSPECT RELAY (Marking: C/OPN)
- Remove the C/OPN relay from the engine room J/B.
- Measure the resistance of the C/OPN relay.
Resistance:
RELAY (MARKING: C/OPN)Tester Connection Specified Condition 3 - 5 10 k ohms or higher 3 - 5 Below 1 ohms(when battery voltage is applied to terminals 1 and 2)
- NG: REPLACE RELAY
- OK: GO TO NEXT STEP
- CHECK ECM (FC VOLTAGE)
- Turn the ignition switch ON.
- Measure the voltage of the ECM connectors.
Voltage:
ECM (FC VOLTAGE)Tester Connection Specified Condition E4-10 (FC) - E6-1 (E1) 9 to 14 V
- NG: REPLACE ECM
- OK: GO TO NEXT STEP
- CHECK WIRE HARNESS (ECM - C/OPN RELAY, C/OPN RELAY - IGNITION)

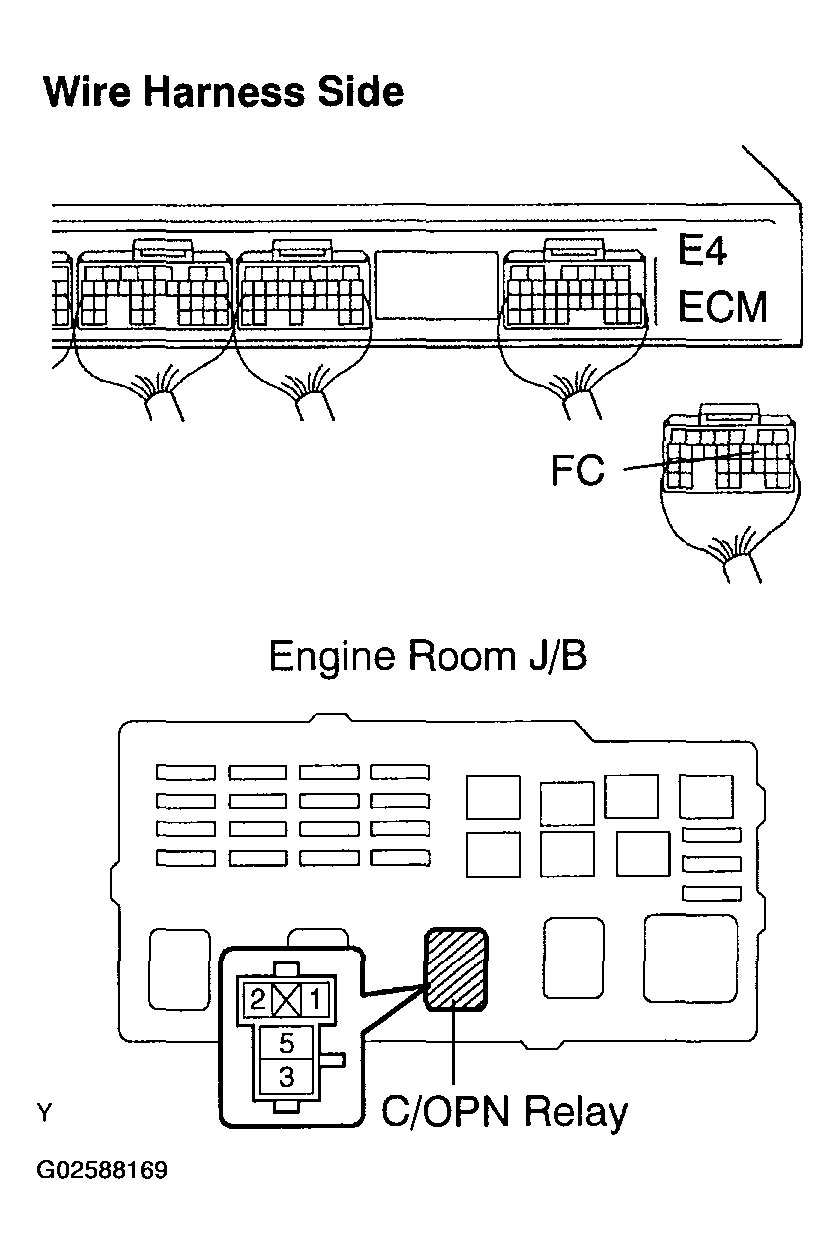

- Check the wire harness between the fuel pump and C/OPN relay.
- Disconnect the E4 ECM connector.
- Remove the C/OPN relay from the engine room J/B.
- Measure the resistance of the wire harness side connectors.
Resistance:

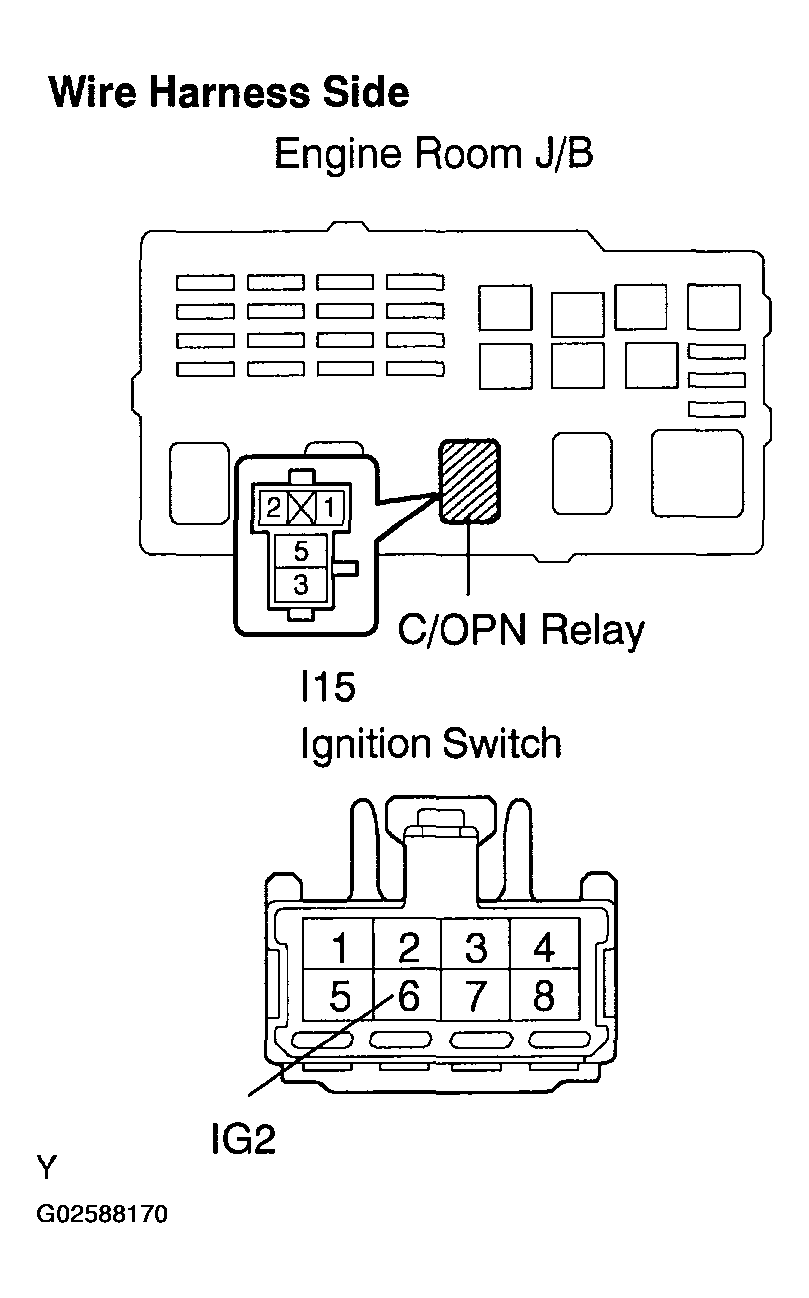

FUEL PUMP AND C/OPN RELAYTester Connection Specified Condition E4-10 (FC) - J/B C/OPN relay terminal 2 Below 1 ohms E4-10 (FC) or J/B C/OPN relay terminal 2 - Body ground 10 k ohms or higher - Check the wire harness between the C/OPN relay and ignition switch.
- Check the IG2 fuse.
- Remove the IG2 fuse from the engine room J/B.
- Measure the resistance of the IG2 fuse.
Resistance: Below 1
- Reinstall the IG2 fuse.
- Remove the C/OPN relay from the engine room J/B.
- Disconnect the I15 ignition switch connector.
- Measure the resistance of the wire harness side connectors.
Resistance:
C/OPN RELAY AND IGNITION SWITCHTester Connection Specified Condition J/B C/OPN relay terminal 1 - I15-6 Below 1 J/B C/OPN relay terminal 1 or I15-6 - Body ground 10 k ohms or higher - Check the IG2 fuse.
- NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
- OK: REPLACE ECM
- Check the wire harness between the fuel pump and C/OPN relay.
- INSPECT FUEL PUMP
- Measure the resistance of the fuel pump.

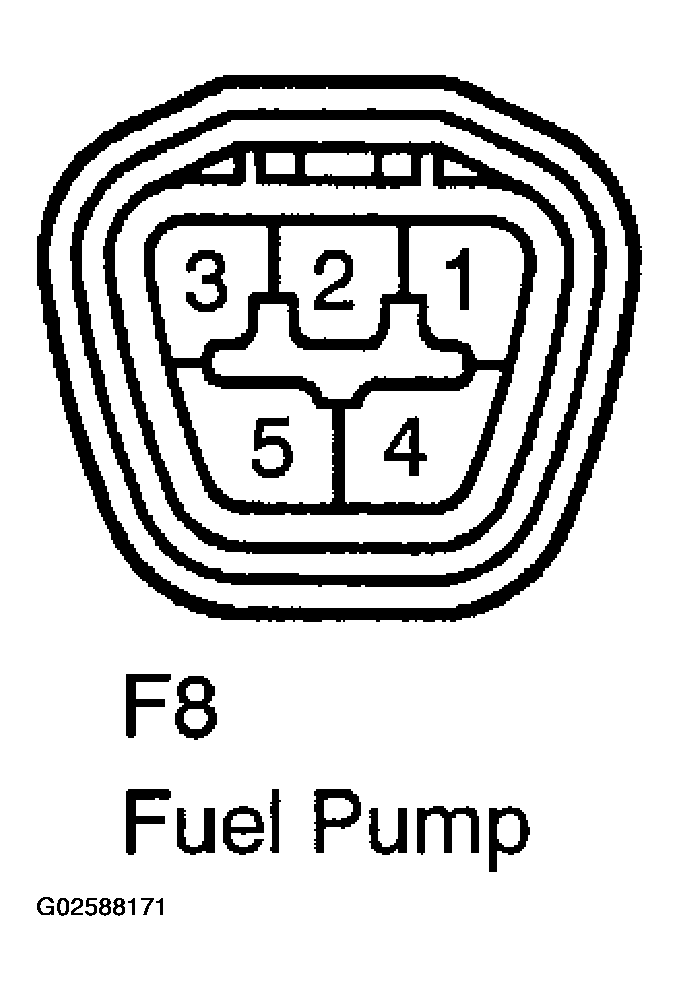

- Measure the resistance between terminals 4 and 5.
Resistance:
FUEL PUMPTester Connection Condition Specified Condition 4 - 5 20°C (68°F) 0.2 to 0.3 - Check operation of the fuel pump.
- Apply battery voltage to both the terminals. Check that the pump operates.
NOTE:- These tests must be done quickly (within 10 seconds) to prevent the coil from burning out.
- Keep the fuel pump as far away from the battery as possible.
- Always turn on and off the voltage on the battery side, not the fuel pump side.
- NG: REPLACE FUEL PUMP
- OK: GO TO NEXT STEP
- Measure the resistance of the fuel pump.
- CHECK WIRE HARNESS (C/OPN RELAY - FUEL PUMP, FUEL PUMP - BODY GROUND)

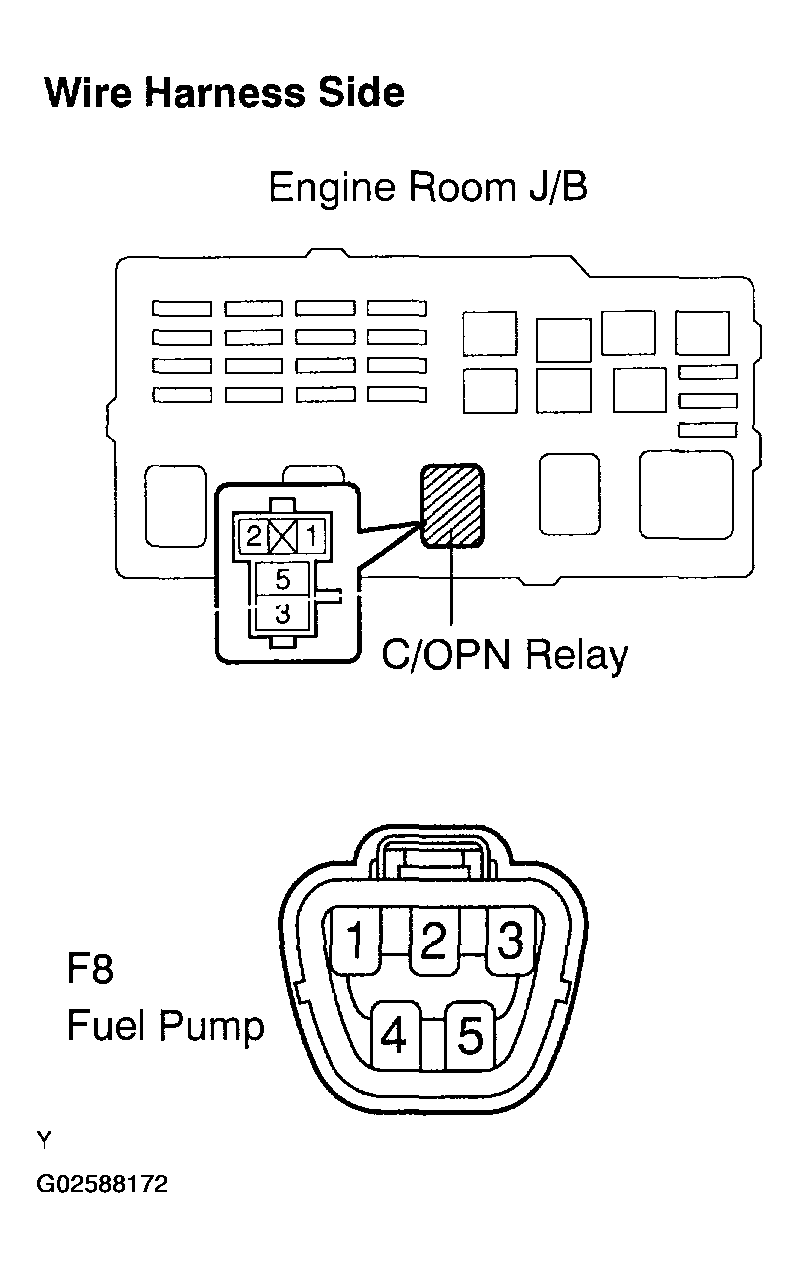

- Check the wire harness between the C/OPN relay and fuel pump.
- Remove the C/OPN relay from the engine room J/B.
- Disconnect the F8 fuel pump connector.
- Measure the resistance of the wire harness side connectors.
Resistance:
C/OPN RELAY AND FUEL PUMPTester Connection Specified Condition J/B C/OPN relay terminal 3 - F8-4 Below 1 ohms J/B C/OPN relay terminal 3 or F8-4 - Body ground 10 k ohms or higher - Check the wire harness between the fuel pump and body ground.
- Disconnect the F8 fuel pump connector.
- Measure the resistance of the wire harness side connector.
Resistance:
FUEL PUMP AND BODY GROUNDTester Connection Specified Condition F8-5 (Fuel pump) - Body ground Below 1 ohms
- NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
- OK: REPLACE ECM
- Check the wire harness between the C/OPN relay and fuel pump.
