Cruise Control for 1ZZ-FE: Notes

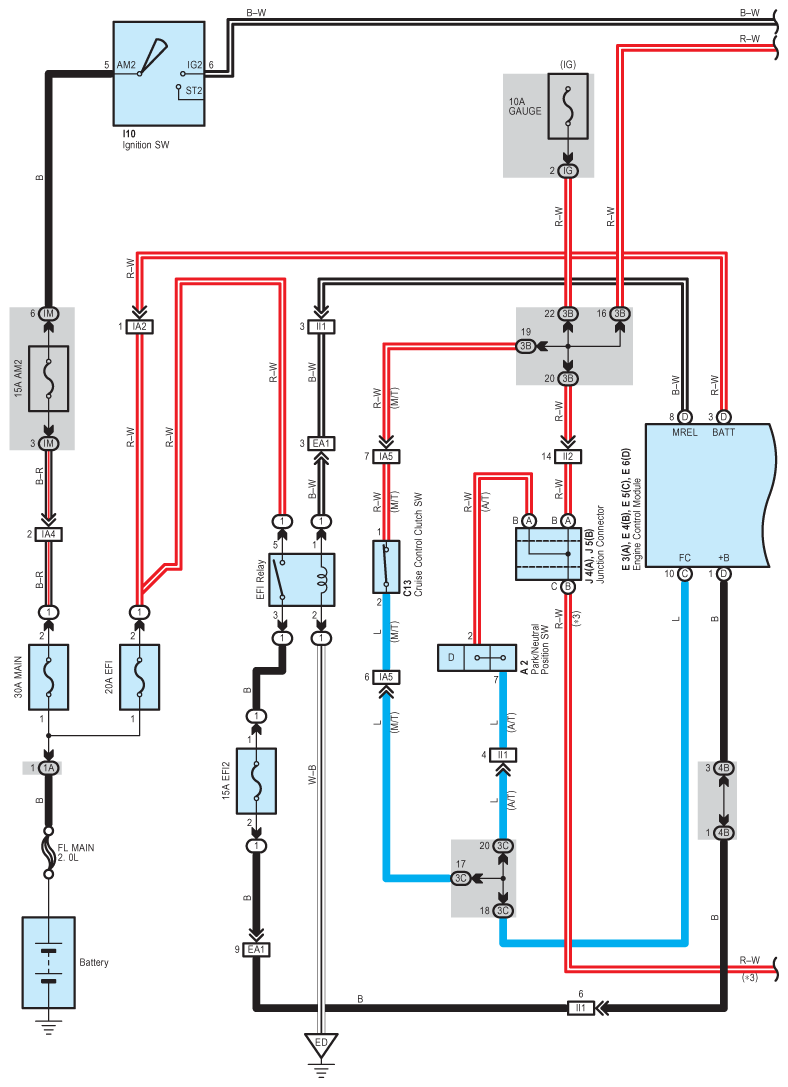

Fig 1: Cruise Control System (For 1ZZ-FE) Wiring Diagram (1 Of 4)
G08779712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

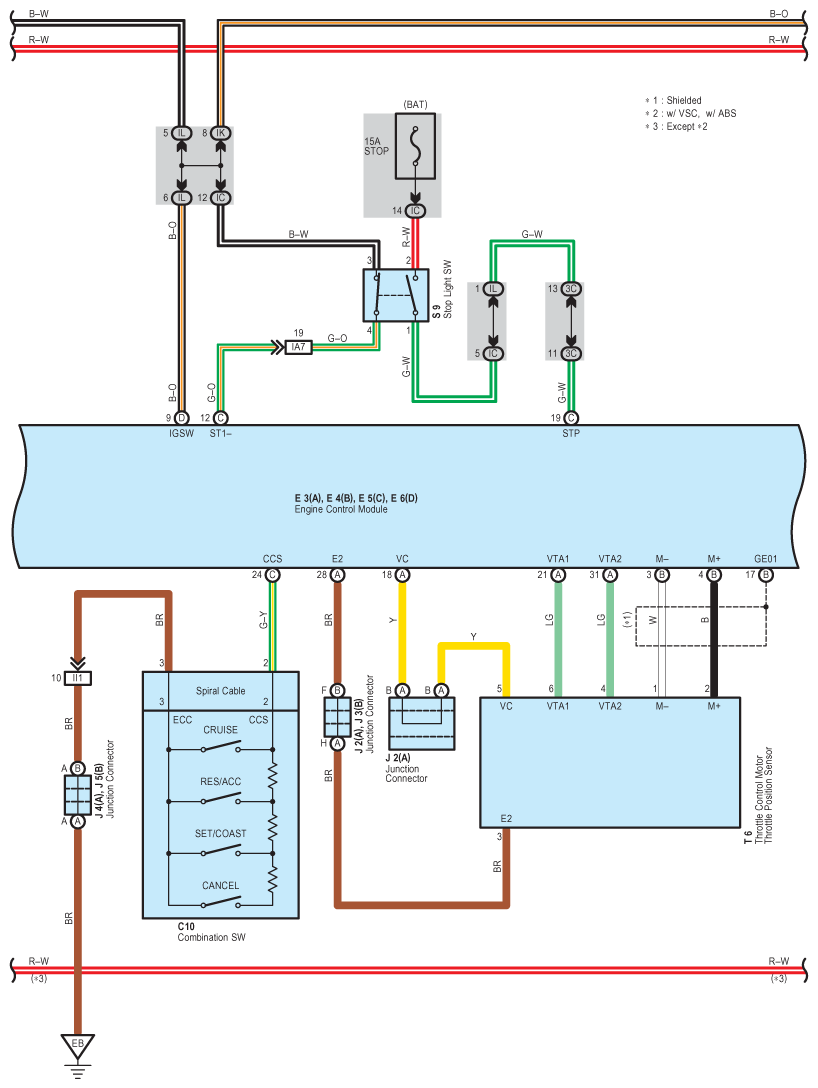

Fig 2: Cruise Control System (For 1ZZ-FE) Wiring Diagram (2 Of 4)
G08779713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

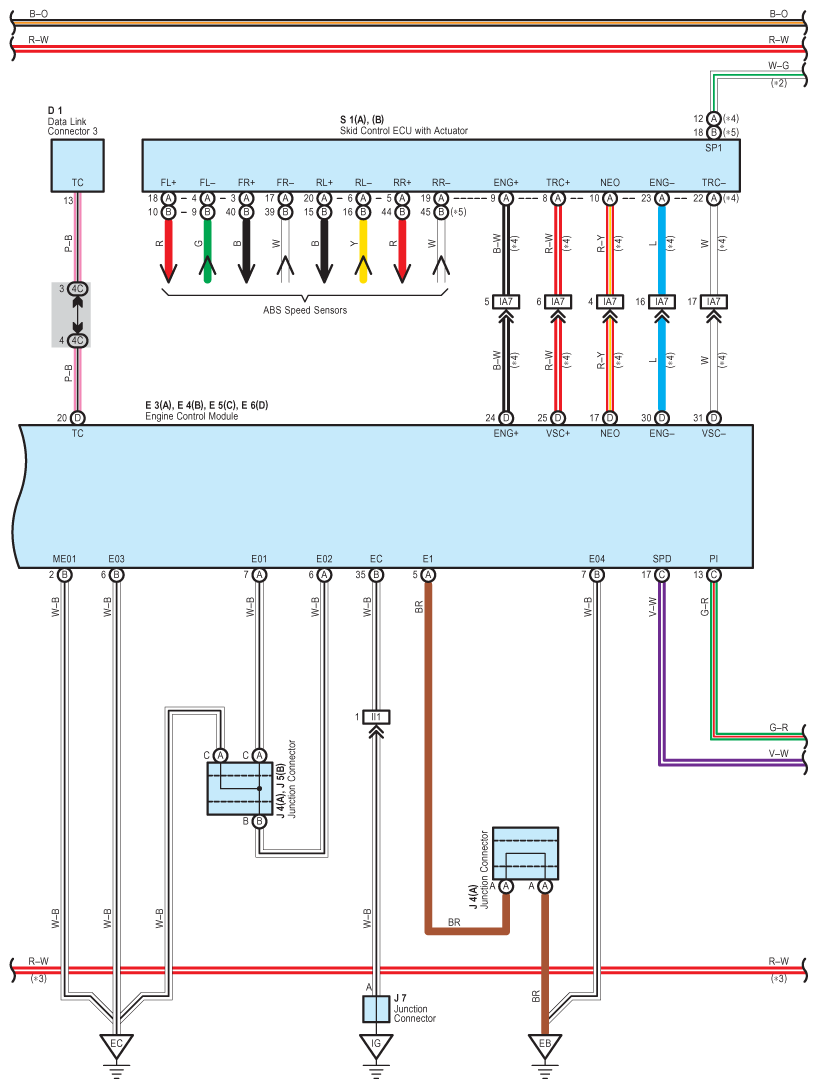

Fig 3: Cruise Control System (For 1ZZ-FE) Wiring Diagram (3 Of 4)
G08779714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

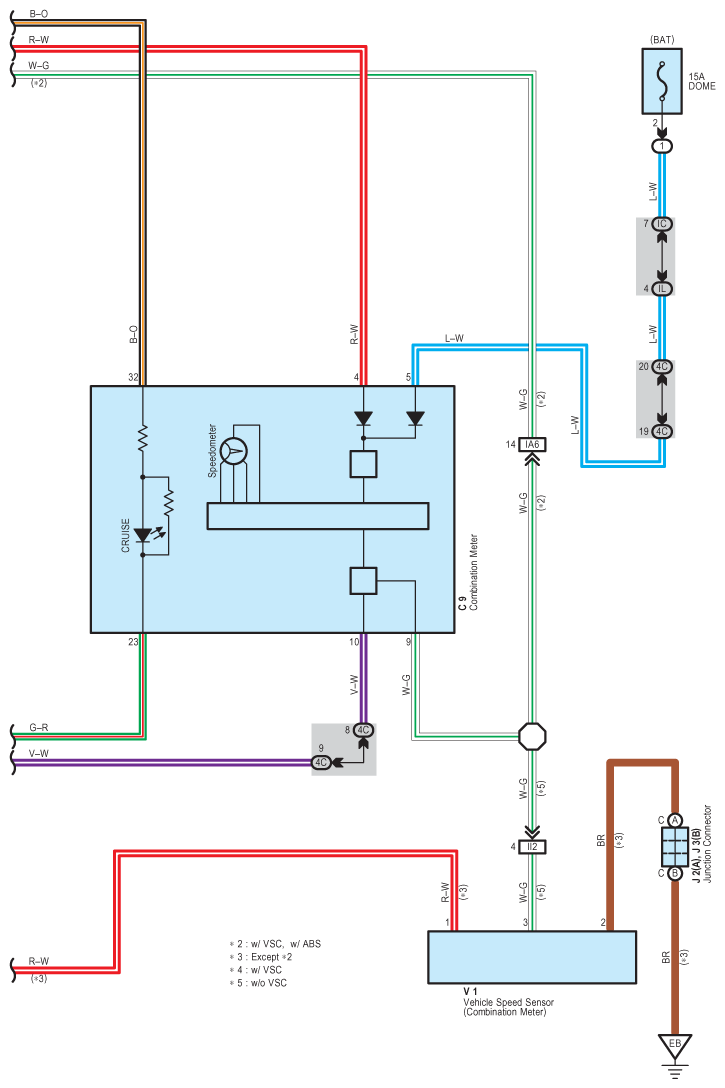

Fig 4: Cruise Control System (For 1ZZ-FE) Wiring Diagram (4 Of 4)
G08779715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
