Audio System without Navigation System: Notes

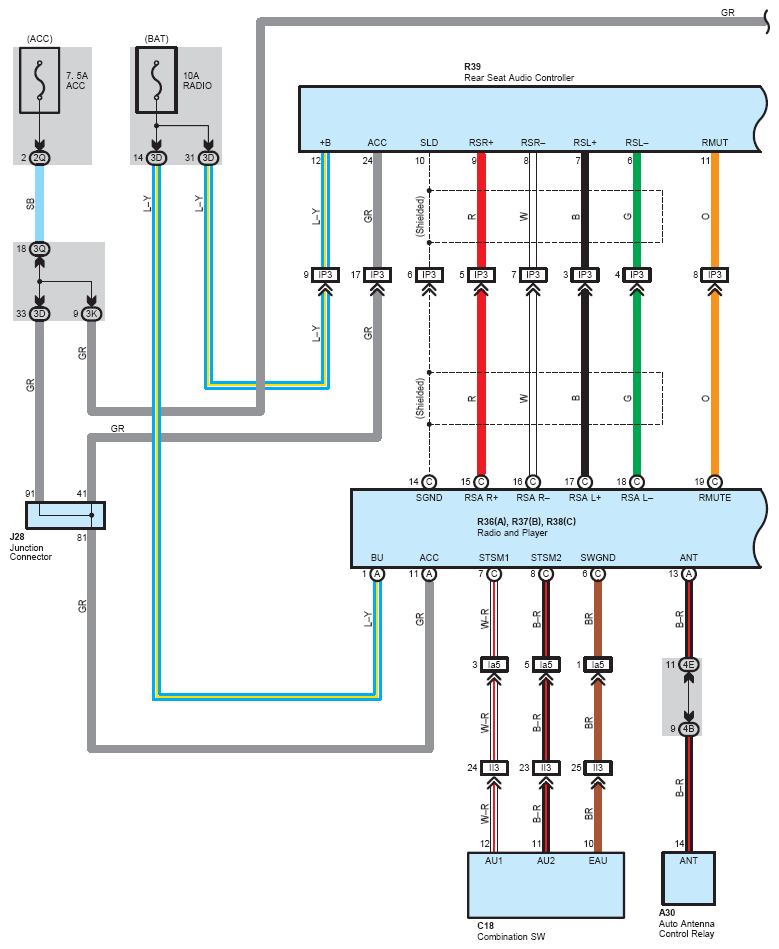

Fig 1: Audio System (Without Navigation) Wiring Diagram (1 Of 4)
G08794051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

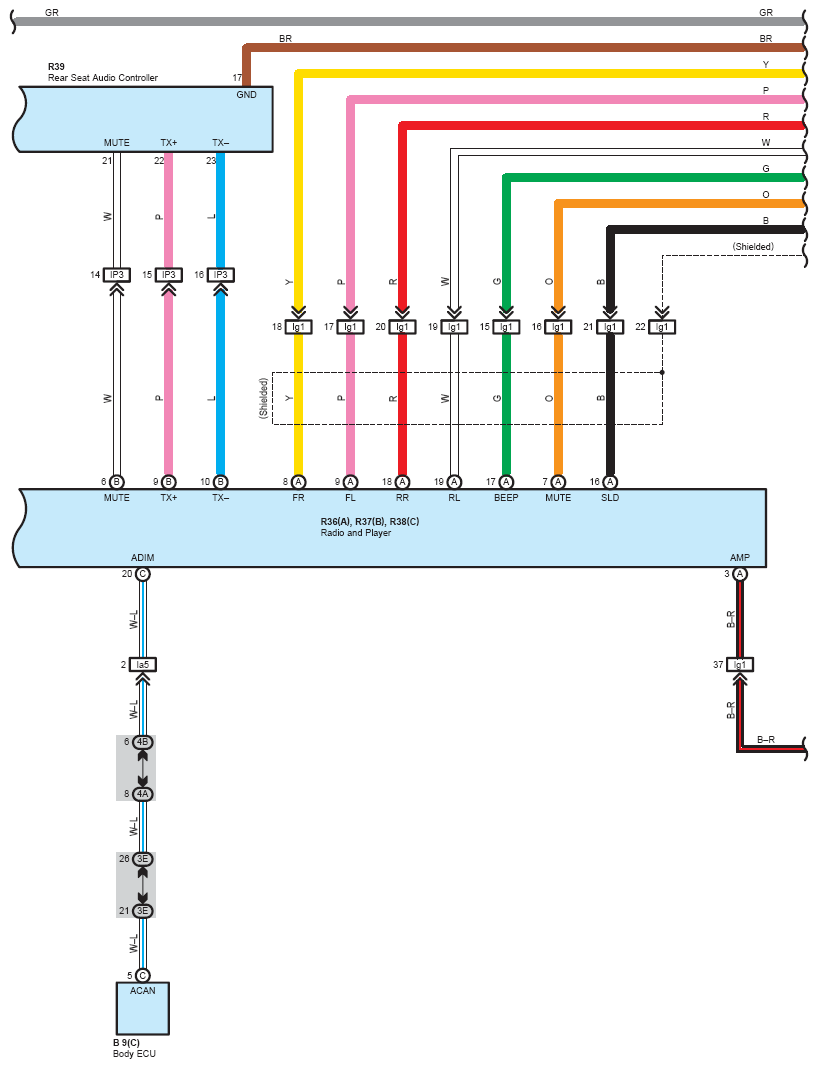

Fig 2: Audio System (Without Navigation) Wiring Diagram (2 Of 4)
G08794052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

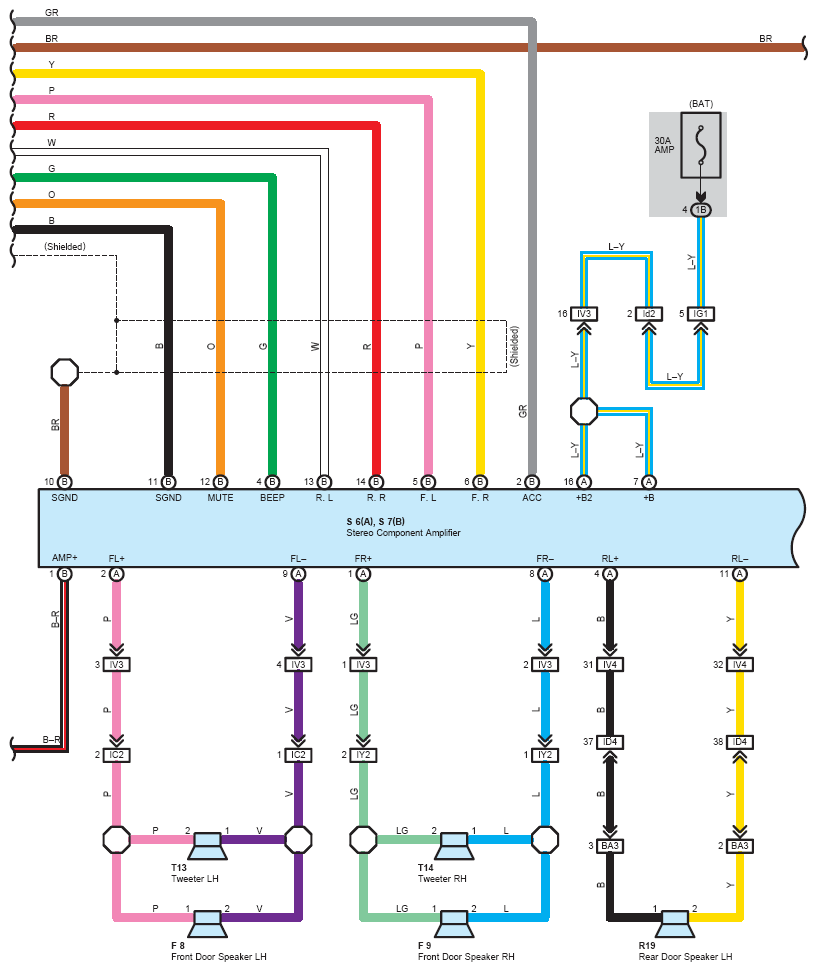

Fig 3: Audio System (Without Navigation) Wiring Diagram (3 Of 4)
G08794053Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

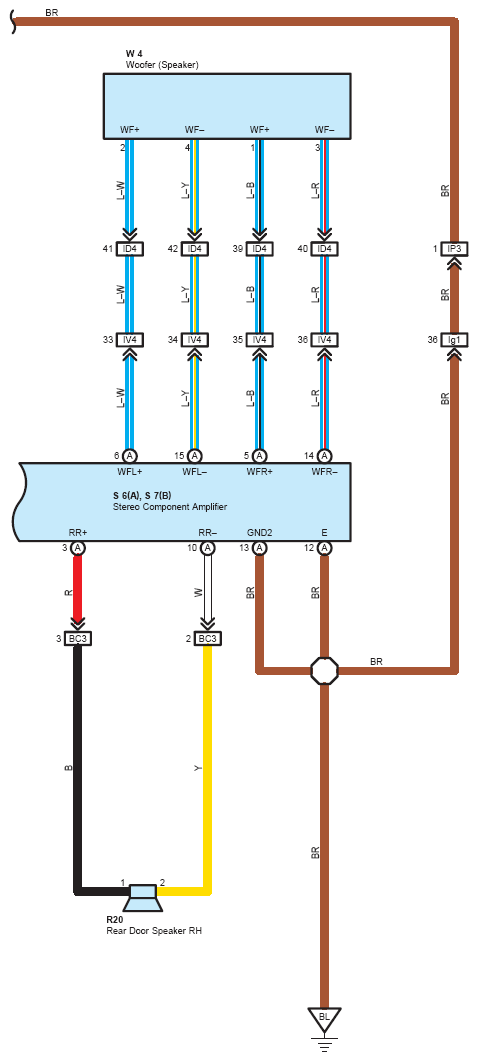

Fig 4: Audio System (Without Navigation) Wiring Diagram (4 Of 4)
G08794054Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
