Pump Attenuator: Components

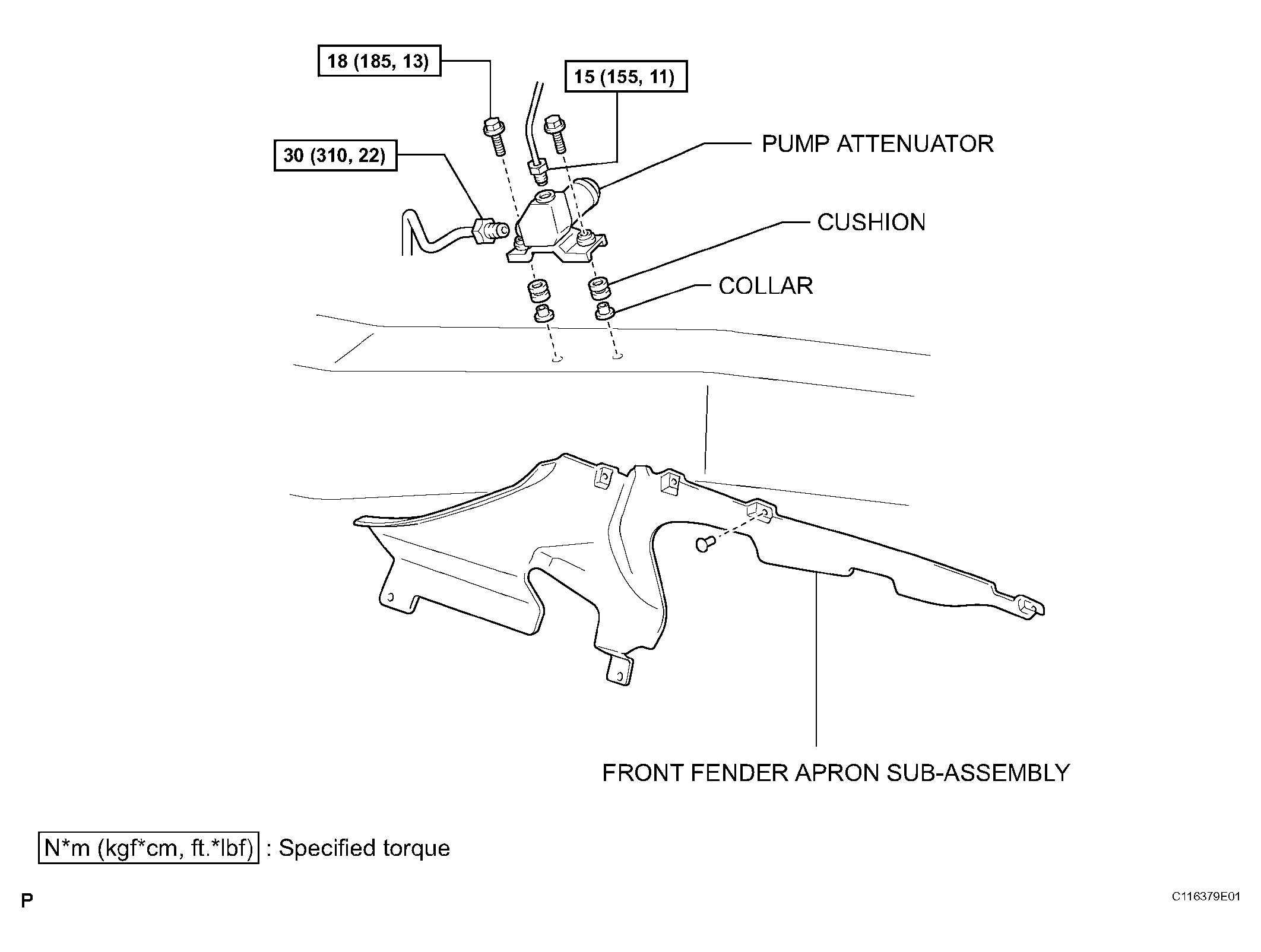

Fig 1: Pump Attenuator Replacement Components With Torque Specifications
G04437514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
