Door Control Switch: Inspection

  1. INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
    1. with Power Window:

      Measure the resistance according to the value(s) in the table below.

      Standard resistance

      STANDARD RESISTANCE (WITH POWER WINDOW)

      Terminal No. Switch Position Specified Condition
      1 - 3 - 5 Lock Below 1 Ω
      - OFF 10 kΩ or higher
      1 - 3 - 8 Unlock Below 1 Ω

      If the result is not as specified, replace the switch.

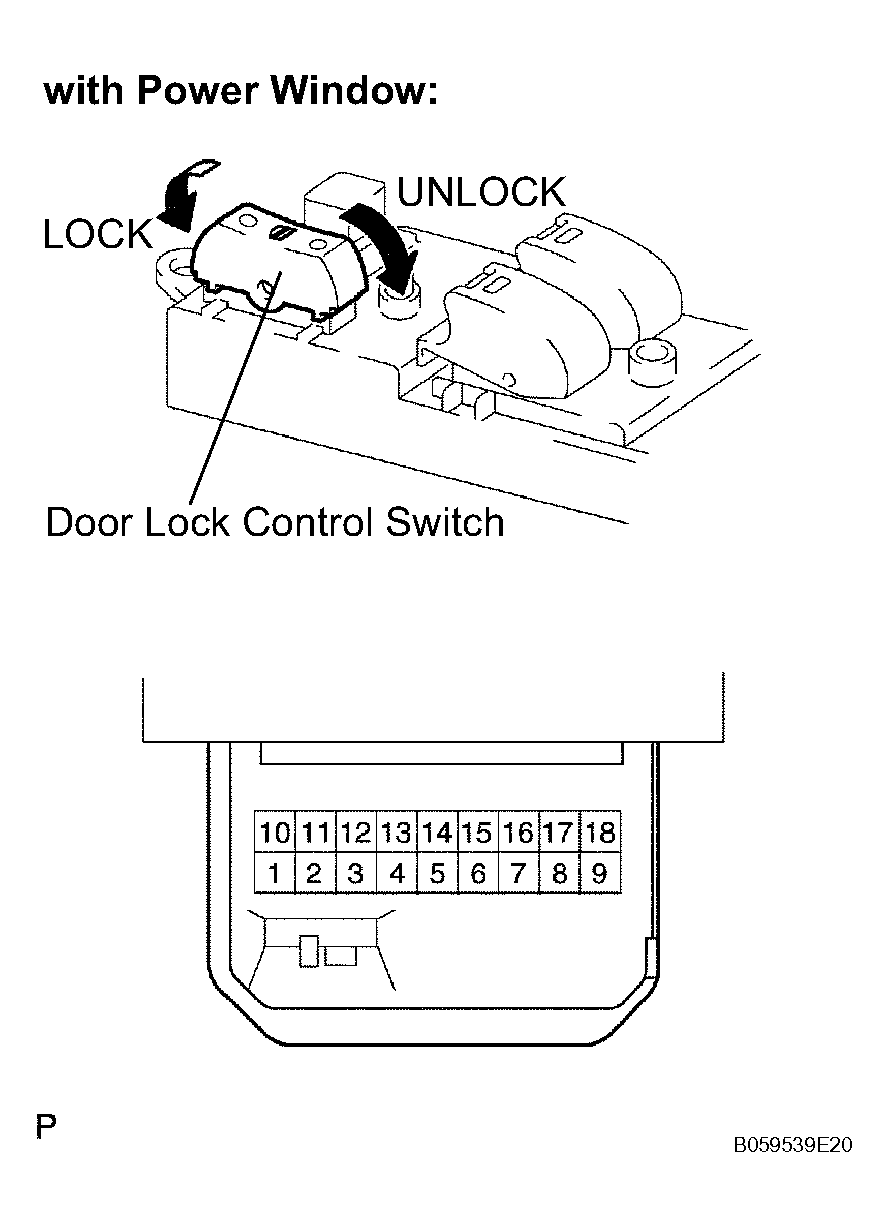

      Fig 1: Inspecting Power Window Regulator Master Switch Assembly (With Power Window)
      G04466574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. without Power Window:

      Measure the resistance according to the value(s) in the table below.

      Standard resistance

      STANDARD RESISTANCE (WITHOUT POWER WINDOW)

      Terminal No. Switch Position Specified Condition
      3 - 6 Lock Below 1 Ω
      - OFF 10 kΩ or higher
      3 - 5 Unlock Below 1 Ω

      If the result is not as specified, replace the switch.

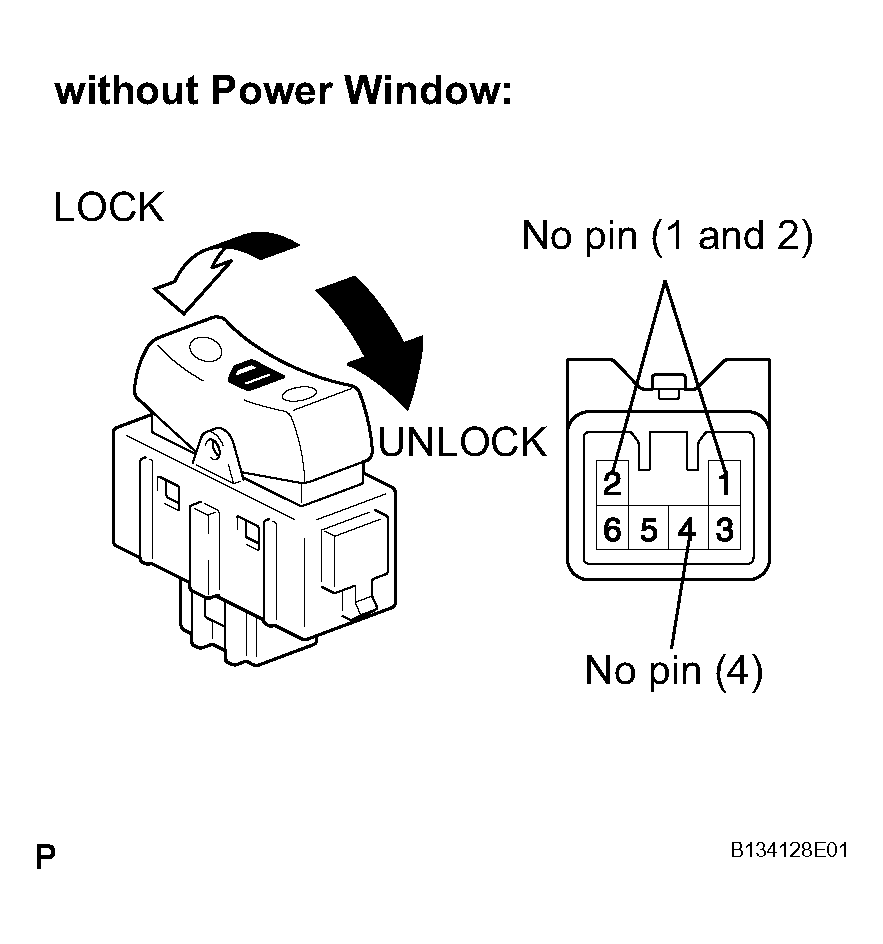

      Fig 2: Inspecting Power Window Regulator Master Switch Assembly (Without Power Window)
      G04466575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSPECT DOOR CONTROL SWITCH ASSEMBLY
    1. Passenger's side switch:

      Measure the resistance according to the value(s) in the table below.

      Standard resistance

      STANDARD RESISTANCE

      Terminal No. Switch Position Specified Condition
      3 - 6 Lock Below 1 Ω
      - OFF 10 kΩ or higher
      3 - 5 Unlock Below 1 Ω

      If the result is not as specified, replace the switch.

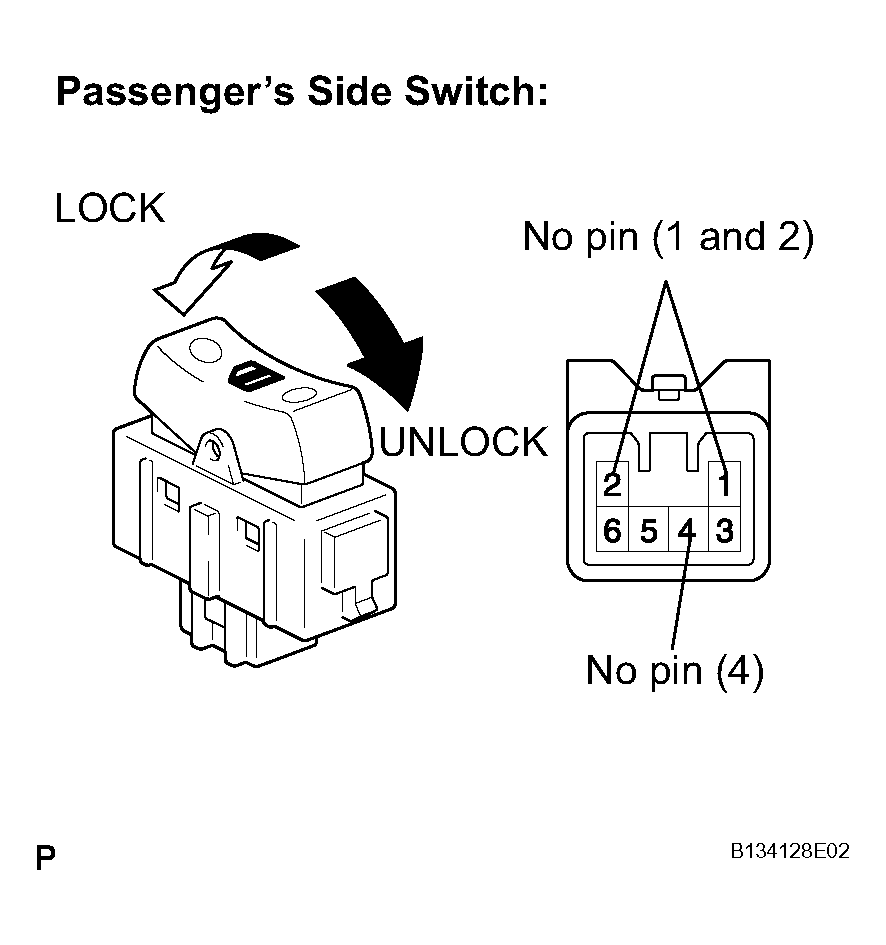

      Fig 3: Inspecting Door Control Switch Assembly (Passenger Side Switch)
      G04466576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
