Outer Mirror Switch: Inspection

  1. INSPECT OUTER MIRROR SWITCH ASSEMBLY
    1. Select "L" on the left/right adjustment switch:
      1. Measure the resistance of the mirror switch.

        Resistance (Left side)

        TESTER CONNECTION AND SPECIFIED CONDITION REFERENCE RESISTANCE (LEFT SIDE)

        Tester Connection Switch Position Specified Condition
        - OFF 10 kΩ or higher
        4 - 8
        6 - 7        		 UP Below 1 Ω
        4 - 7
        6 - 8        		 DOWN Below 1 Ω
        5 - 8
        6 - 7        		 LEFT Below 1 Ω
        5 - 7
        6 - 8        		 RIGHT Below 1 Ω

        If the result is not as specified, replace the switch assembly.

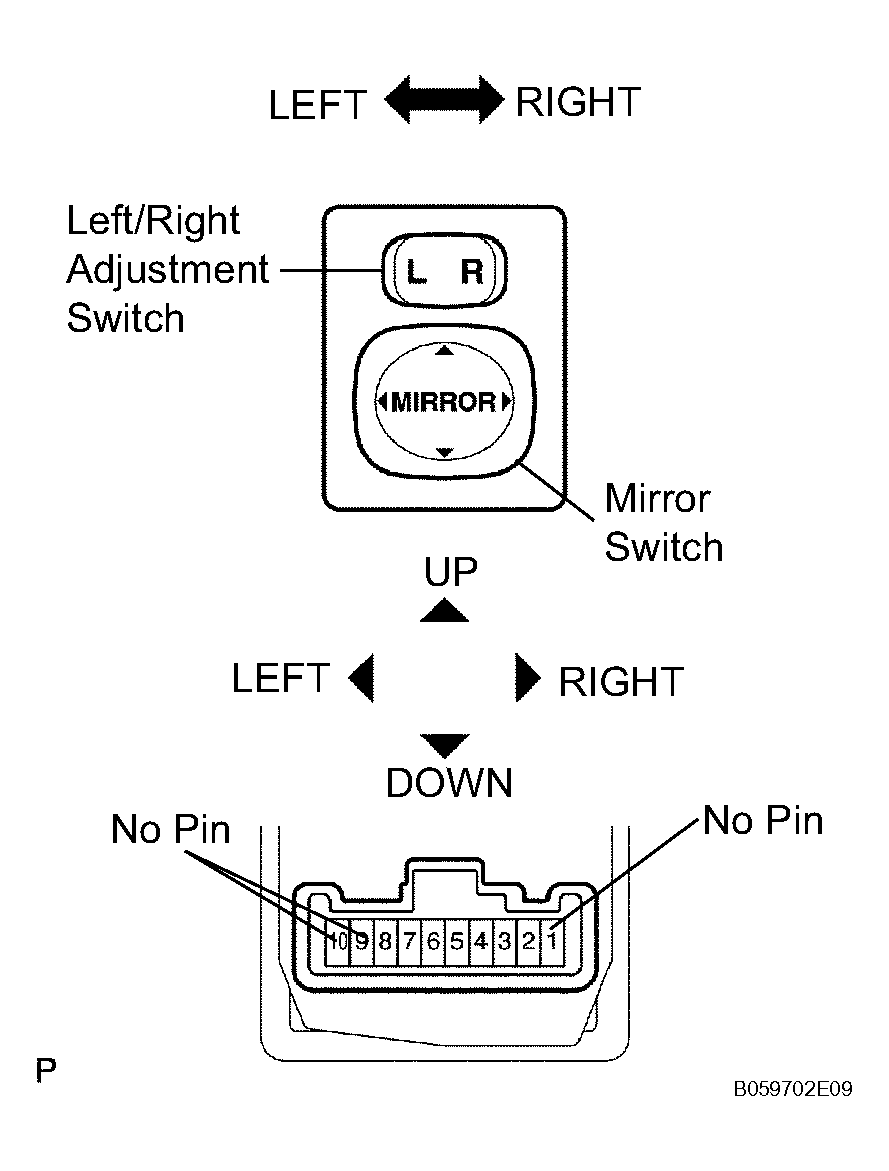

        2. Fig 1: Inspecting Outer Mirror Switch Assembly
        G04466839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Select "R" on the left/right adjustment switch:
      1. Measure the resistance of the mirror switch.

        Resistance (Right side)

        TESTER CONNECTION AND SPECIFIED CONDITION REFERENCE RESISTANCE (RIGHT SIDE)

        Tester Connection Switch Position Specified Condition
        - OFF 10 kΩ or higher
        3 - 8
        6 - 7        		 UP Below 1 Ω
        3 - 7
        6 - 8        		 DOWN Below 1 Ω
        2 - 8
        6 - 7        		 LEFT Below 1 Ω
        2 - 7
        6 - 8        		 RIGHT Below 1 Ω

        If the result is not as specified, replace the switch assembly.
