Front Speed Sensor: Components

Fig 1: Identifying Front Speed Sensor Components And Replacements (1 Of 2)
G04465342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

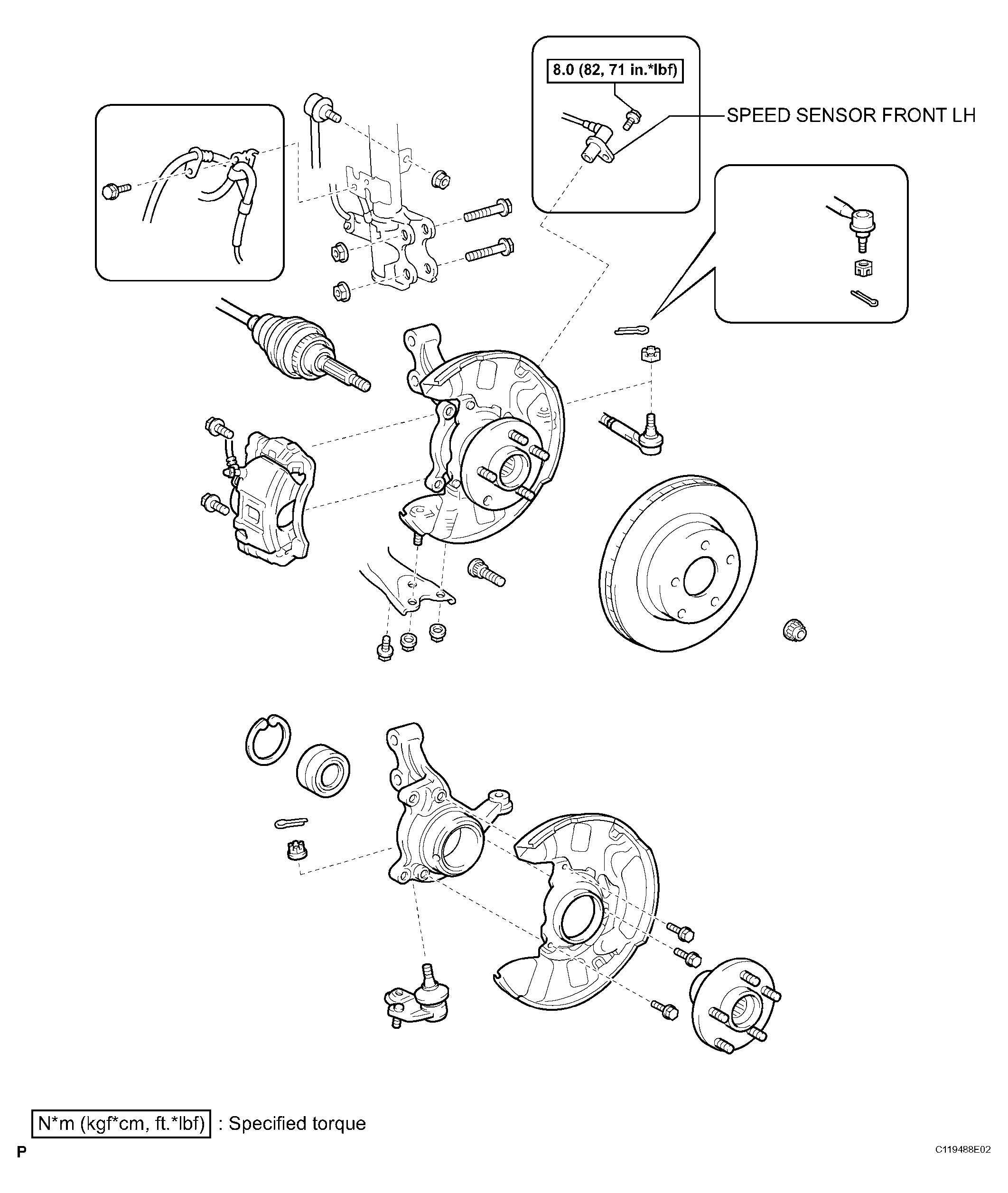

Fig 2: Identifying Front Speed Sensor Components And Replacements (2 Of 2)
G04465343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
