Front Speed Sensor: Installation

1. Install the speed sensor front LH with the bolt.

   Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

   NOTE: Make sure the sensor tip is clean.

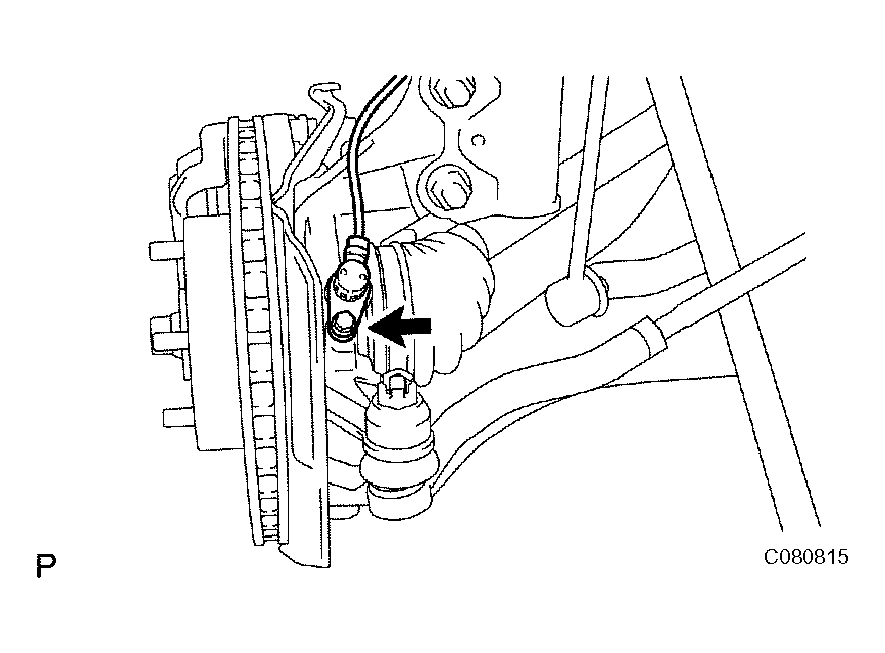

   Fig 1: Installing Speed Sensor Front LH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the sensor harness clamp with the 2 bolts "A" and "B" to the body and shock absorber.

   Torque:

   • Bolt A: 8.0 N*m (82 kgf*cm, 71 in.*lbf)
   • Bolt B: 29 N*m (296 kgf*cm, 21 ft.*lbf)

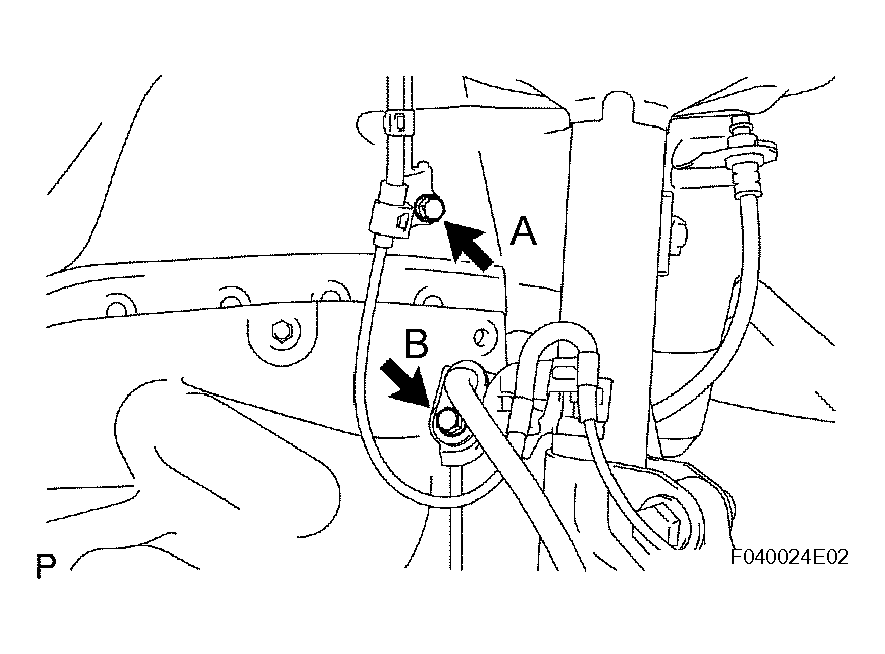

   Fig 2: Installing Sensor Harness Clamp

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the speed sensor connector.
   Fig 3: Connecting Speed Sensor Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Connect the speed sensor wire harness clamp to the body.

Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)

HINT:

See TEST MODE PROCEDURE
