Front Speed Sensor: Removal

HINT:

Replace the RH side by the same procedure as the LH side.

1. REMOVE FRONT WHEEL
2. REMOVE FRONT FENDER LINER LH
3. REMOVE SPEED SENSOR FRONT LH
   1. Disconnect the speed sensor wire harness clamp from the body.
      Fig 1: Disconnecting Speed Sensor Wire Harness Clamp

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Disconnect the speed sensor connector.

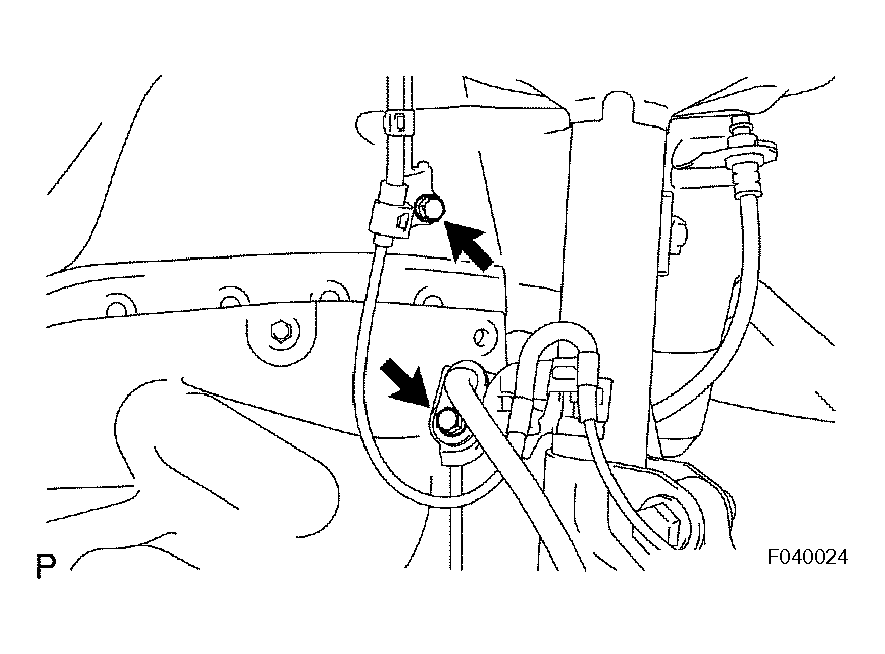

   3. Remove the 2 clamp bolts holding the sensor harness from the body and shock absorber.
      Fig 2: Removing Clamp Bolts

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

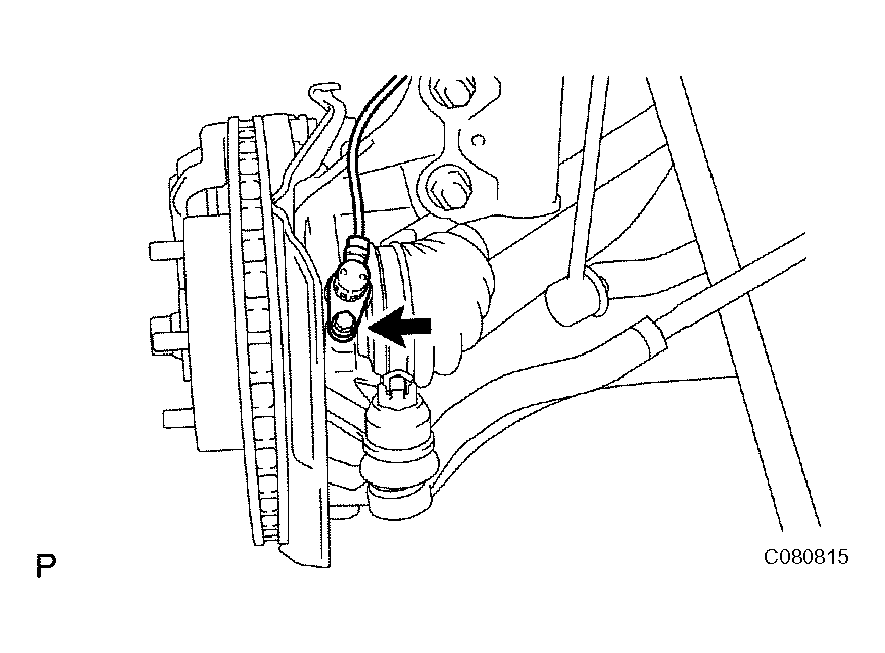

   4. Remove the bolt and speed sensor front LH.
      NOTE: Keep on the sensor tip clean.
      Fig 3: Removing Speed Sensor Front LH

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
