Front Axle Hub Bolt: Installation

INSTALL FRONT AXLE LH HUB BOLT
1. Install a washer and nut to a new LH hub bolt as shown in the illustration.

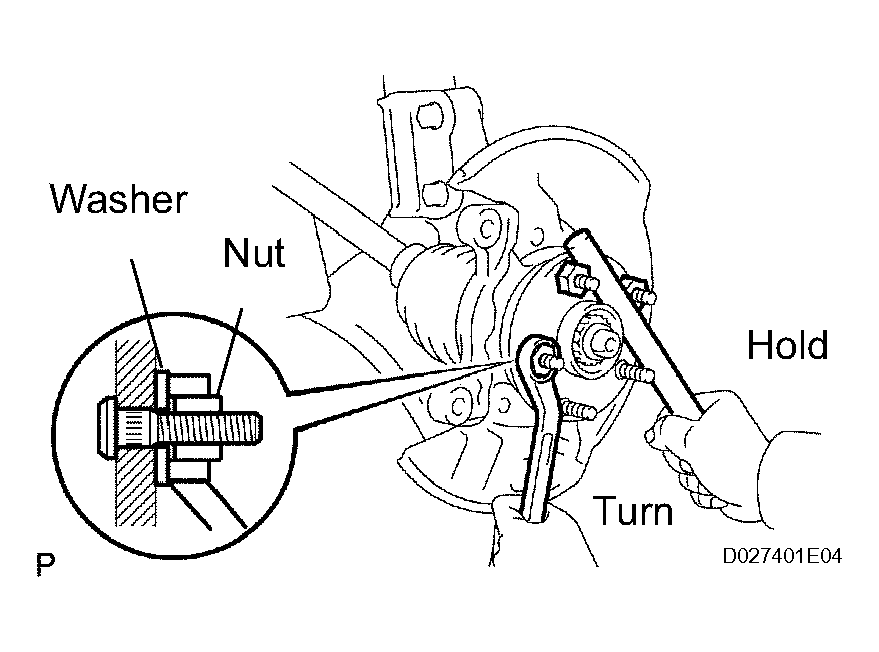

  Fig 1: Installing Front Axle LH Hub Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a hammer handle or an equivalent to hold the hub sub-assembly LH, install the LH hub bolt by tightening the nut.
INSTALL FRONT DISC
INSTALL FRONT DISC BRAKE CALIPER ASSEMBLY LH (See INSTALLATION )
INSTALL FRONT WHEEL
Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
