Fuel Injector: Installation

  1. INSTALL FUEL INJECTOR ASSEMBLY
    1. Apply a light coat of gasoline or spindle oil to a new O-ring, then install it onto each fuel injector.

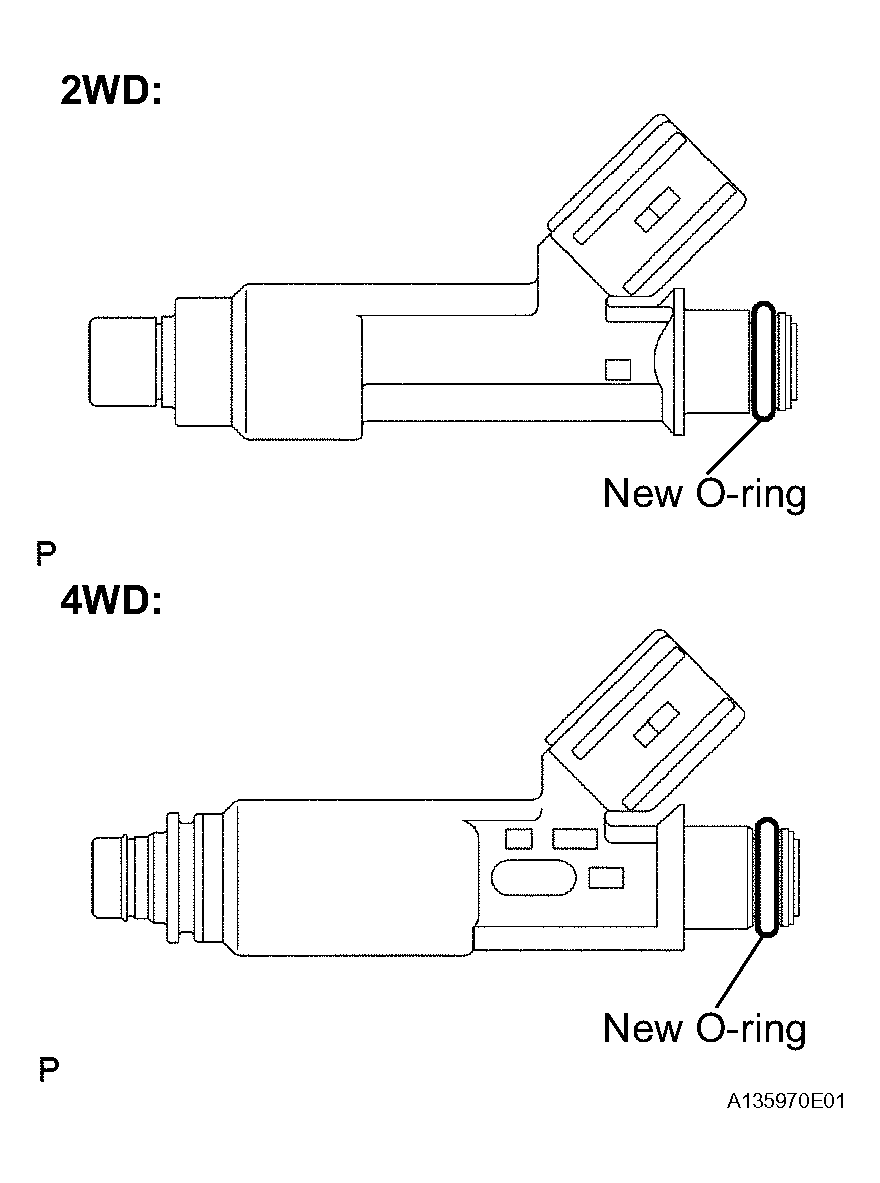

      Fig 1: Installing O-Ring
      G04461825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Apply a light coat of gasoline or spindle oil to the fuel delivery pipe which comes into contact with the O-ring of the fuel injector.
    3. Apply a light coat of gasoline or spindle oil to the O-ring again, then install the fuel injector right and left on to the fuel delivery pipe.
      NOTE: Make sure that the O-ring is not cracked or jammed when installing.
      Fig 2: Installing Fuel Injector On To Fuel Delivery Pipe
      G04461826Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Check that the fuel injector rotates smoothly.

      If the fuel injector does not rotate, replace the O-ring.

  2. INSTALL FUEL DELIVERY PIPE SUB-ASSEMBLY
    1. Install 4 new insulators into the cylinder head (A).
    2. Install the 2 delivery pipe No.1 spacers onto the cylinder head (B).
      NOTE: Make sure that the delivery pipe No. 1 spacer is in the correct direction when installing.

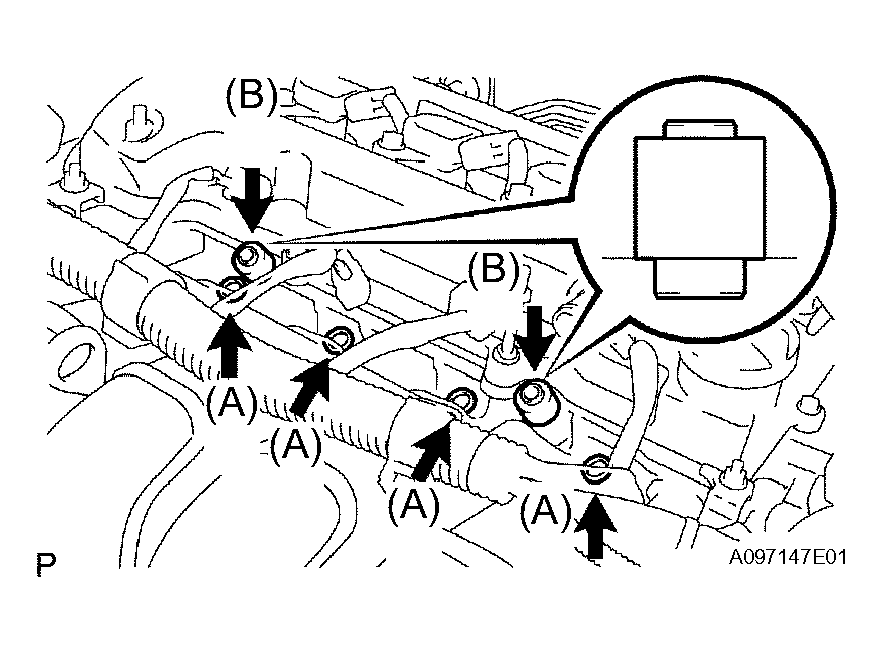

      Fig 3: Installing Insulators And Delivery Pipe No.1 Spacers
      G04461827Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the fuel delivery pipe together with the 4 fuel injectors, then temporarily tighten the 3 bolts (C).
      NOTE: Do not drop the fuel injectors when installing the fuel delivery pipe.
    4. Check that the fuel injector rotates smoothly (D).

      If the fuel injector does not rotate, replace the O-ring.

    5. Tighten the 3 bolts to the specified torque (E).

      Torque: Bolt A

      19 N*m (194 kgf*cm, 14 ft.*lbf)

      Bolt B

      9.0 N*m (92 kgf*cm, 80 in.*lbf)

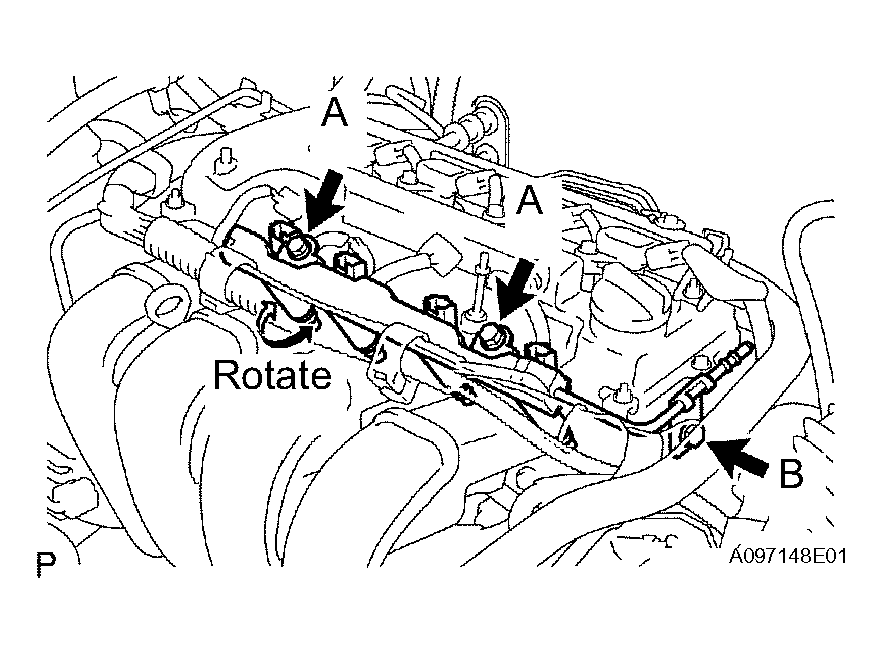

      Fig 4: Identifying Bolt A And B
      G04461828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Connect the fuel tube (F).
      1. Align the fuel tube connector with the pipe, then push the fuel tube connector in until the retainer makes a "click" sound to connect the fuel tube to the pipe.
        NOTE:
        • Check that there are no scratches or foreign objects around the connected part of the fuel tube connector and pipe before performing this work.
        • After connecting the fuel tube, check that the fuel tube is securely connected by pulling the fuel tube connector.

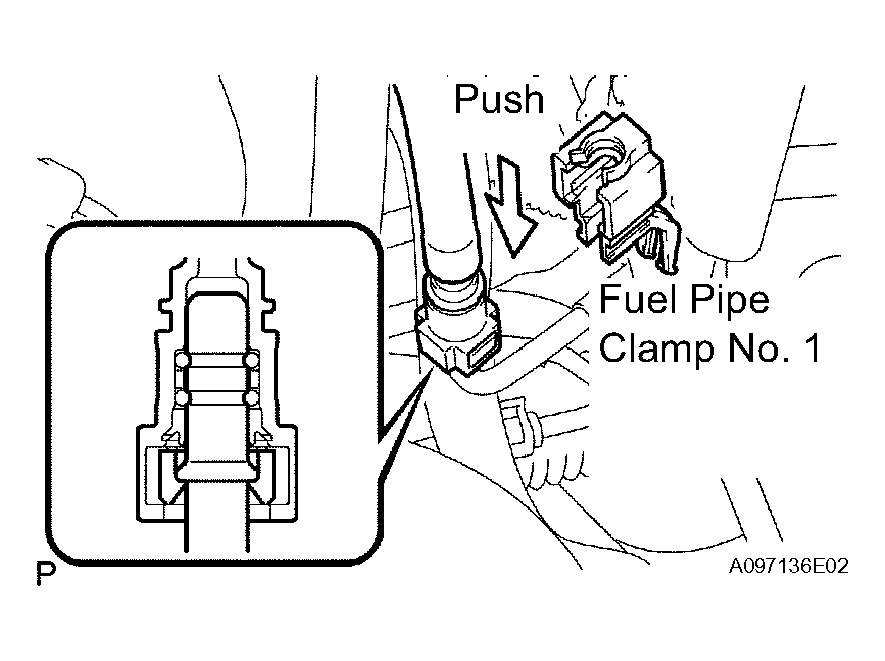

        Fig 5: Connecting Fuel Tube
        G04461829Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Install the fuel pipe clamp No. 1 (G).
    8. Install the 3 wire harness clamps (H).
    9. Connect the 4 fuel injector connectors (I).

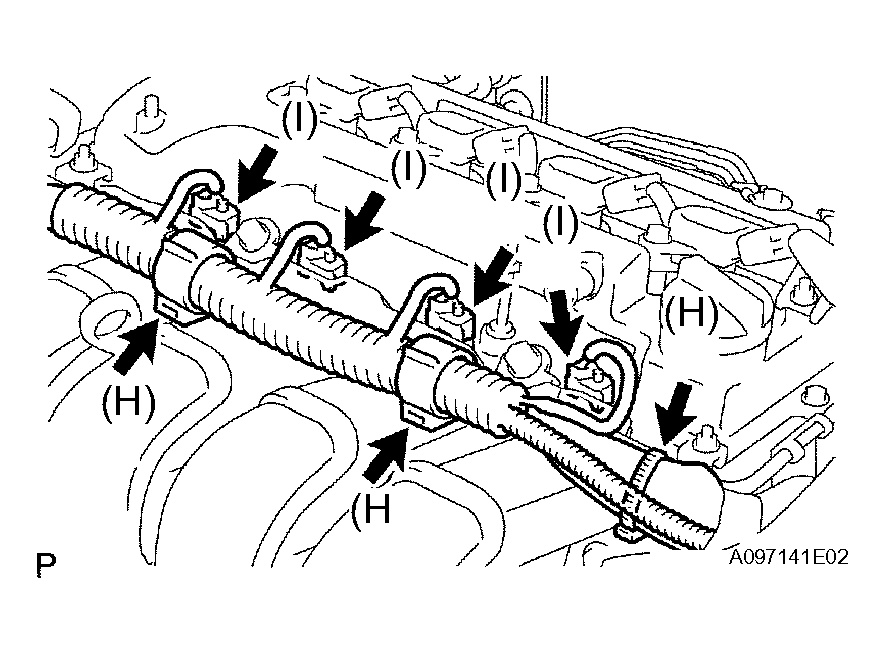

      Fig 6: Installing Wire Harness Clamps
      G04461830Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. CONNECT VENTILATION HOSE
    1. Connect the ventilation hose to the cylinder head cover.
      NOTE: Make sure that the hose clamp is at the correct angle when installing.
  4. CONNECT BATTERY NEGATIVE TERMINAL

    Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

  5. CHECK FOR FUEL LEAKAGE (See  ON-VEHICLE INSPECTION   )

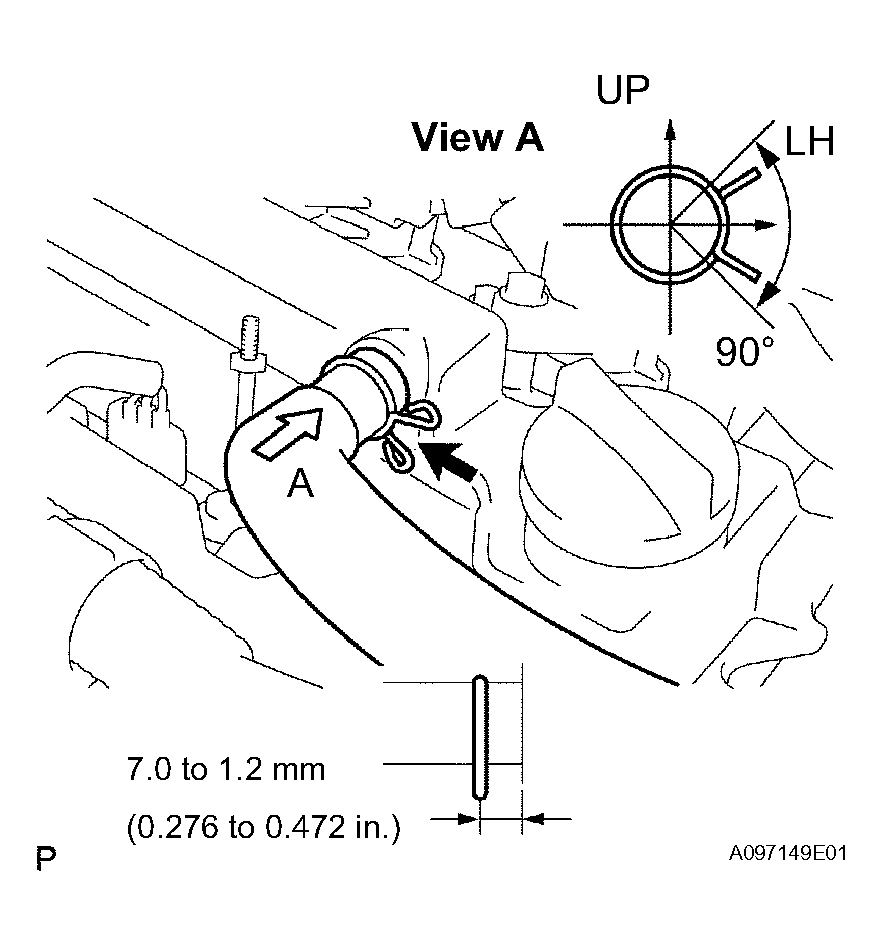

    Fig 7: Connecting Ventilation Hose To Cylinder Head Cover
    G04461831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL NO. 2 CYLINDER HEAD COVER
    1. Install the cylinder head cover No. 2 with the 2 nuts and 2 clips.

      Torque: 7.0 N*m (70 kgf*cm, 62 in.*lbf)

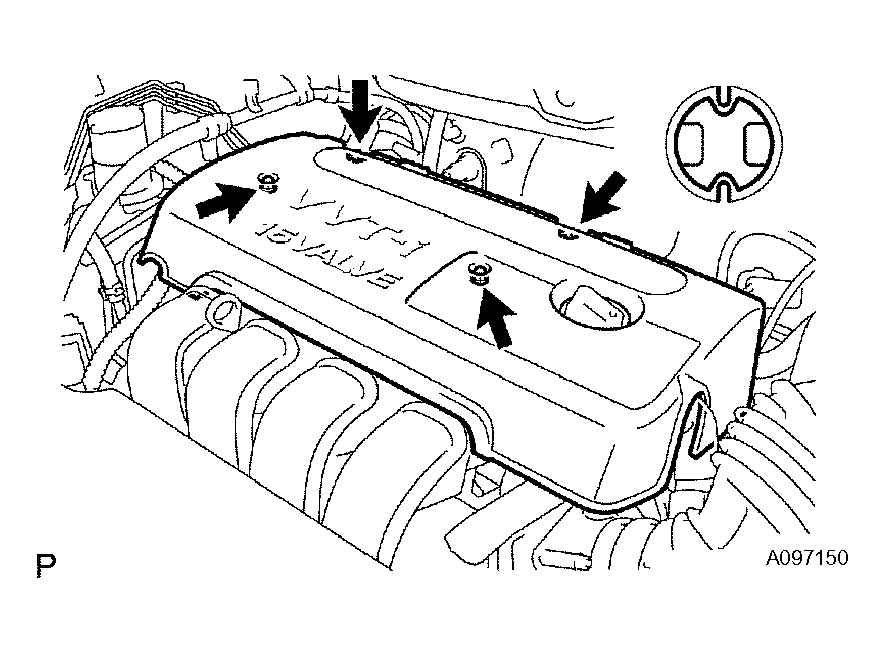

      Fig 8: Installing No. 2 Cylinder Head Cover
      G04461832Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
