System Diagram

The configuration of the electronic control system in the U341F automatic transaxles is as shown in the following chart.

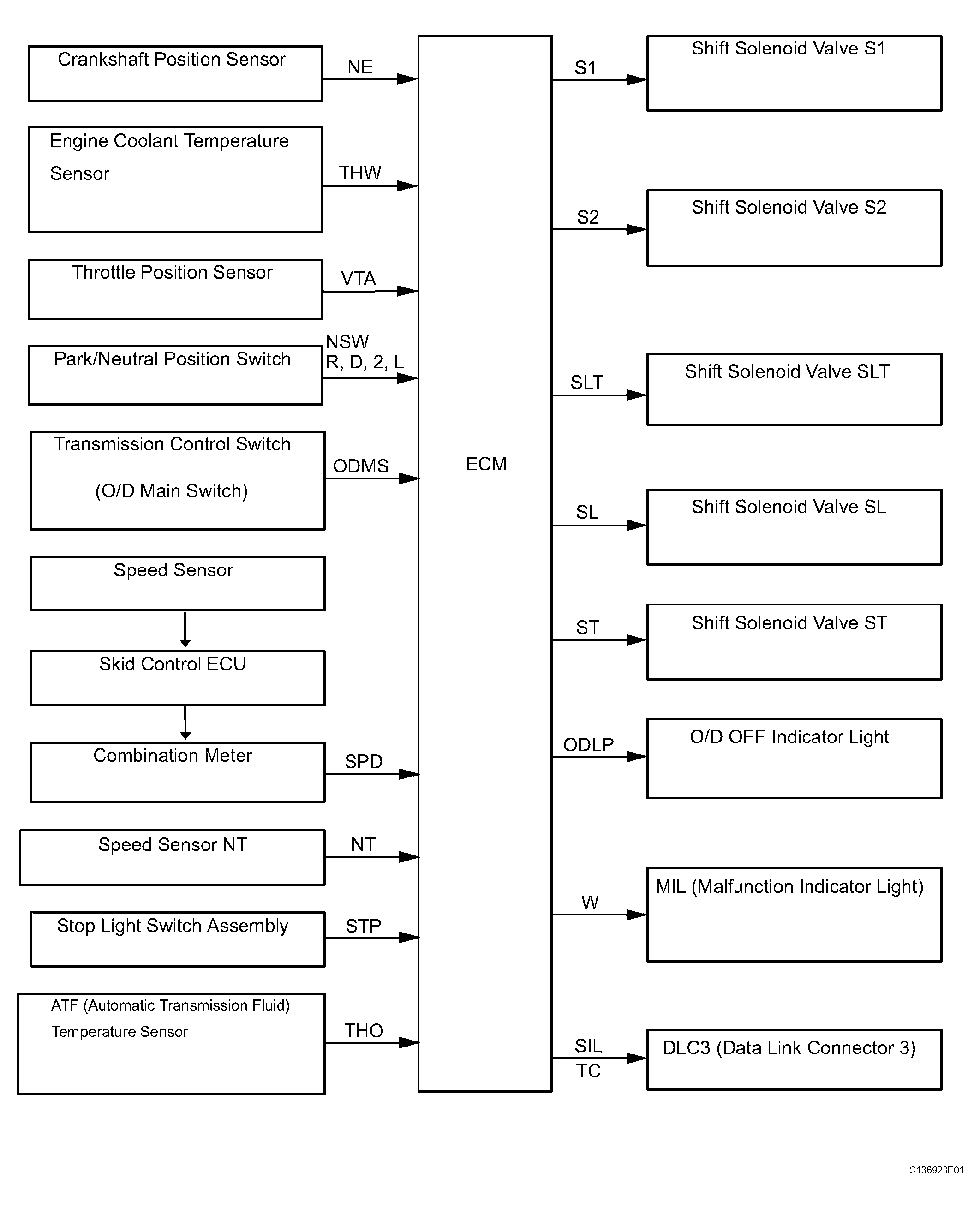

Fig 1: U341F Automatic Transmission - System Diagram
G04463232Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
