2006
>>
Matrix Base, FWD, Automatic
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Automatic Transmission - A246E
>>
Automatic Transaxle Assembly
>>
Components
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Automatic Transaxle Assembly: Components

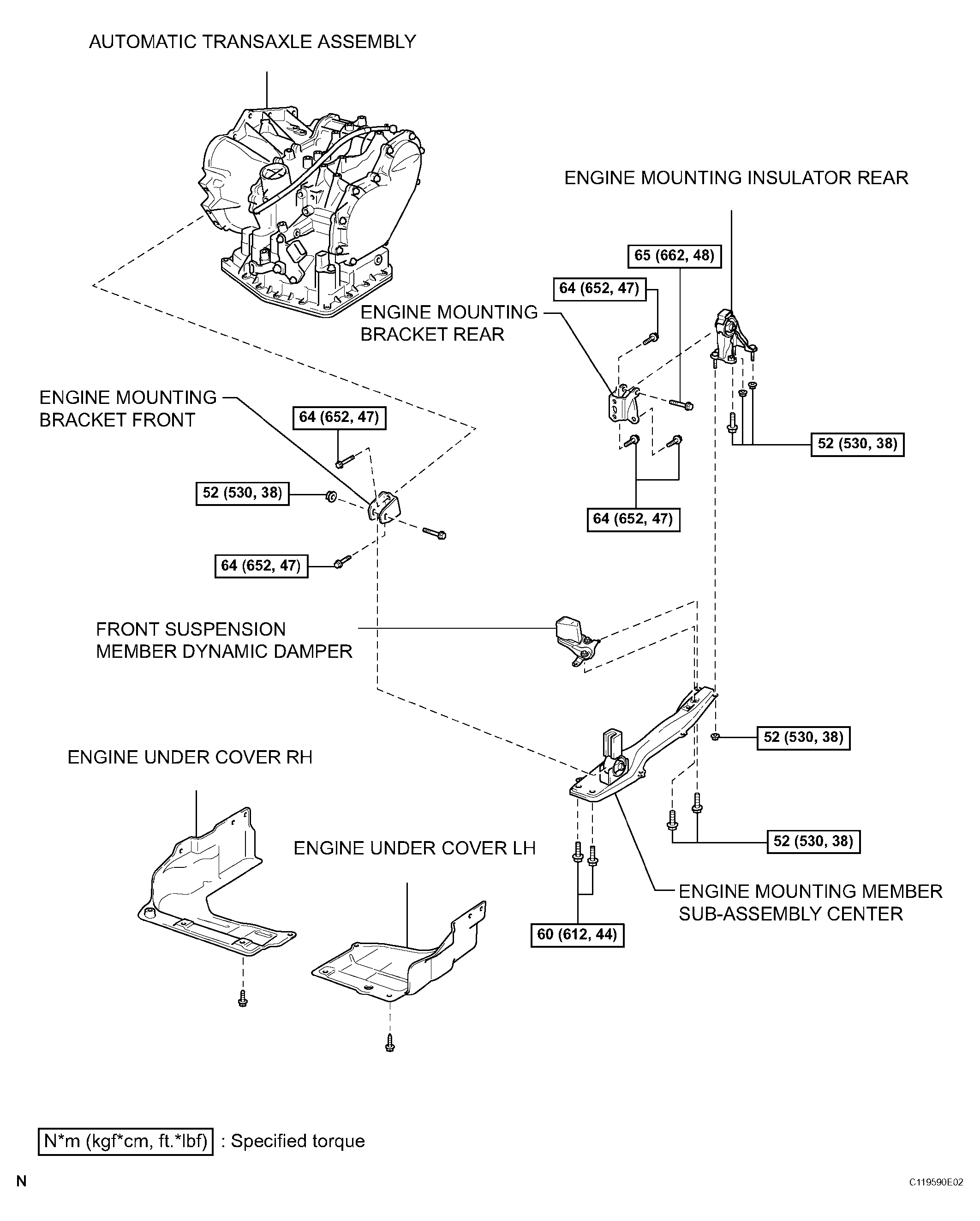

Fig 1: Exploded View Of Automatic Transaxle Assembly Components With Torque Specifications (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

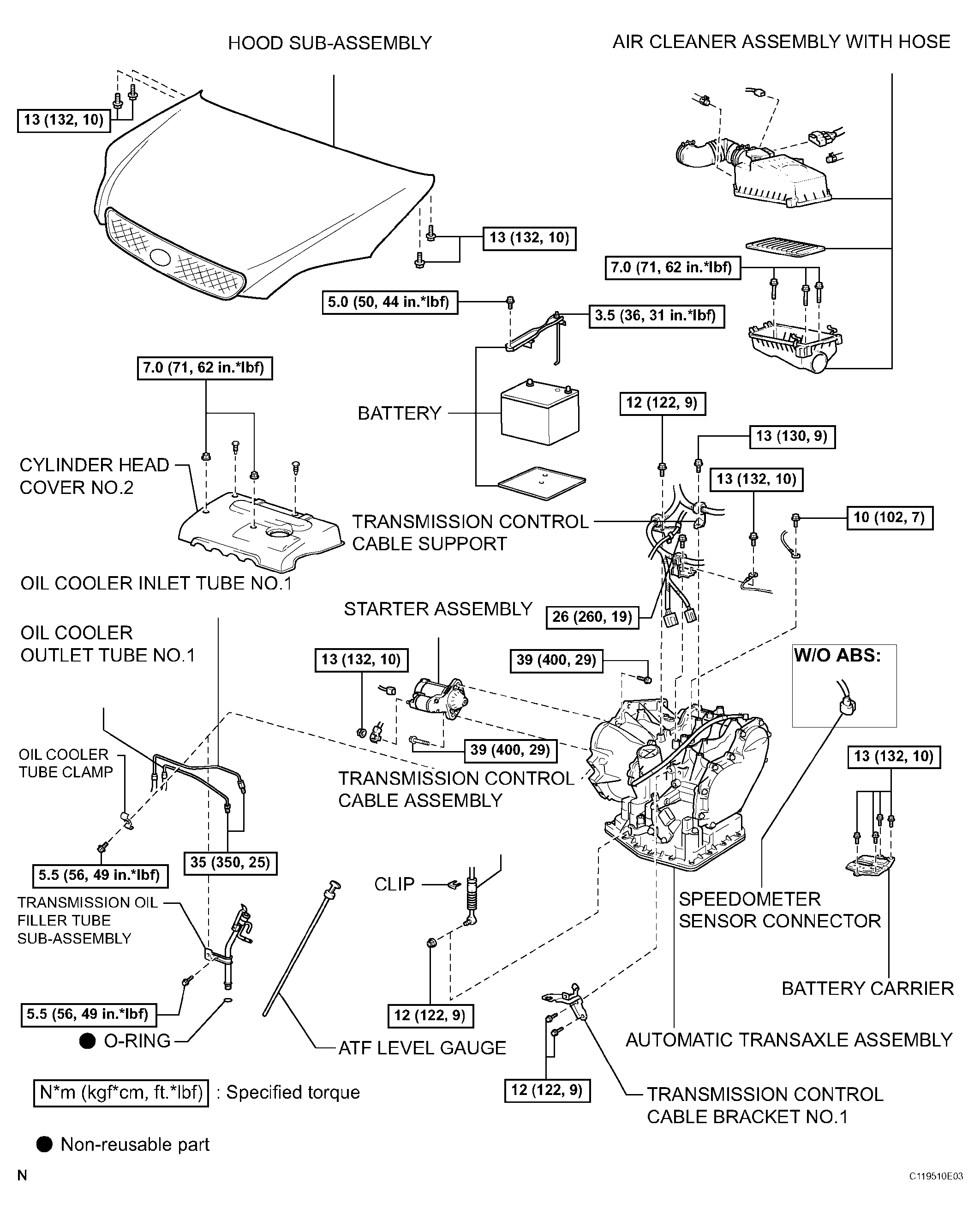

Fig 2: Exploded View Of Automatic Transaxle Assembly Components With Torque Specifications (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

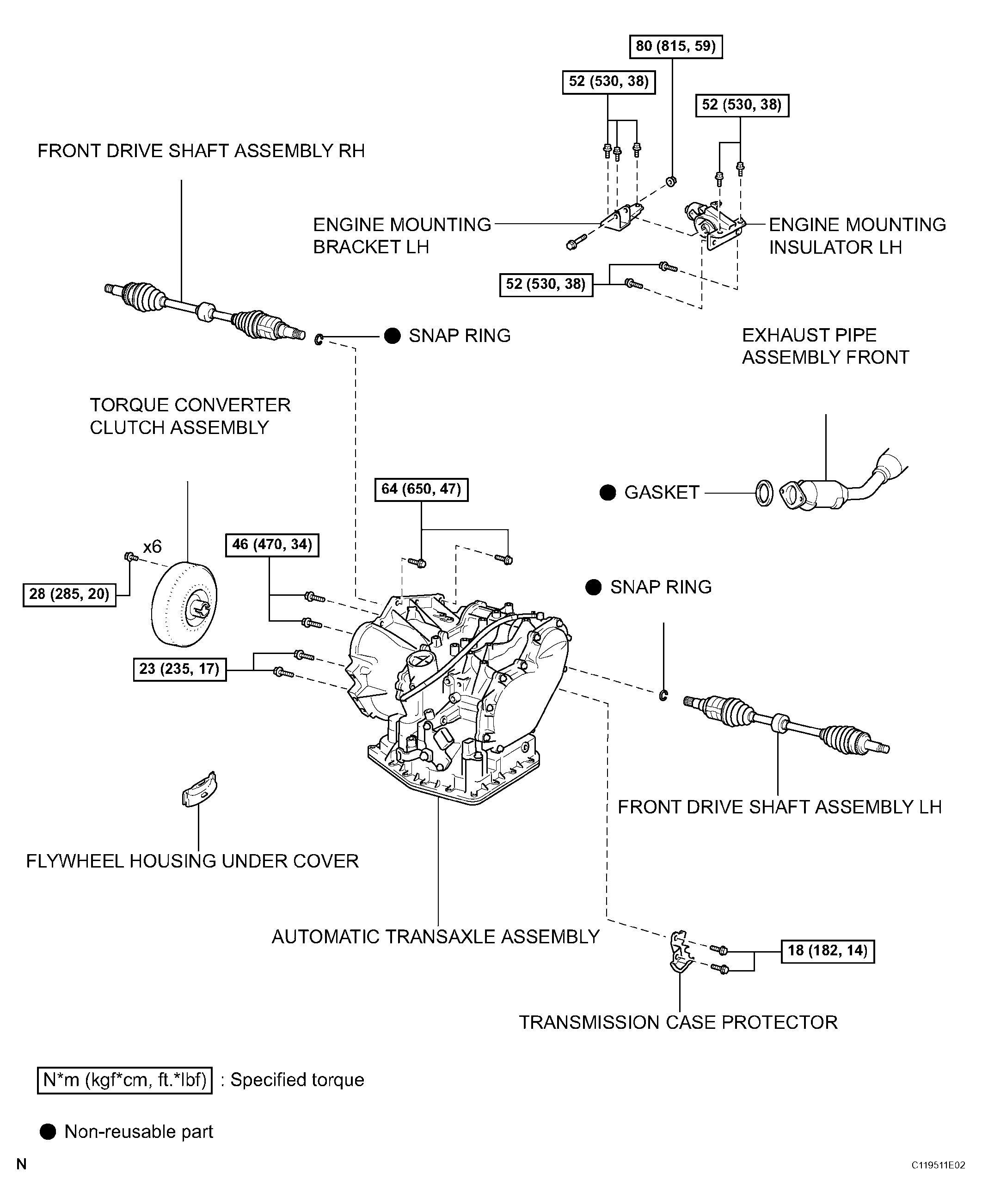

Fig 3: Exploded View Of Automatic Transaxle Assembly Components With Torque Specifications (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
