Inspection Procedure
- CHECK HARNESS AND CONNECTOR (TRANSMISSION CONTROL SWITCH - BODY GROUND)
- Disconnect the transmission control switch connector.
- Measure the resistance according to the value(s) in the table below.
Standard resistance
TESTER CONNECTION SPECIFIED CONDITION (1 OF 3)Tester Connection Specified Condition 4 - Body ground Below 1
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
OK: GO TO NEXT STEP
- INSPECT TRANSMISSION CONTROL SWITCH
- Measure the resistance according to the value(s) in the table below.
Standard resistance
TESTER CONNECTION SPECIFIED CONDITION (2 OF 3)Switch Condition Tester Connection Specified Condition Press continuously transmission control switch 2 - 4 Below 1 Release transmission control switch 10 k or higher
NG: REPLACE TRANSMISSION CONTROL SWITCH
OK: GO TO NEXT STEP
- Measure the resistance according to the value(s) in the table below.
- CHECK HARNESS AND CONNECTOR (TRANSMISSION CONTROL SWITCH - ECM)
- Connect the transmission control switch connector.
- Disconnect the ECM connector.
- Measure the resistance according to the value(s) in the table below.
Standard resistance

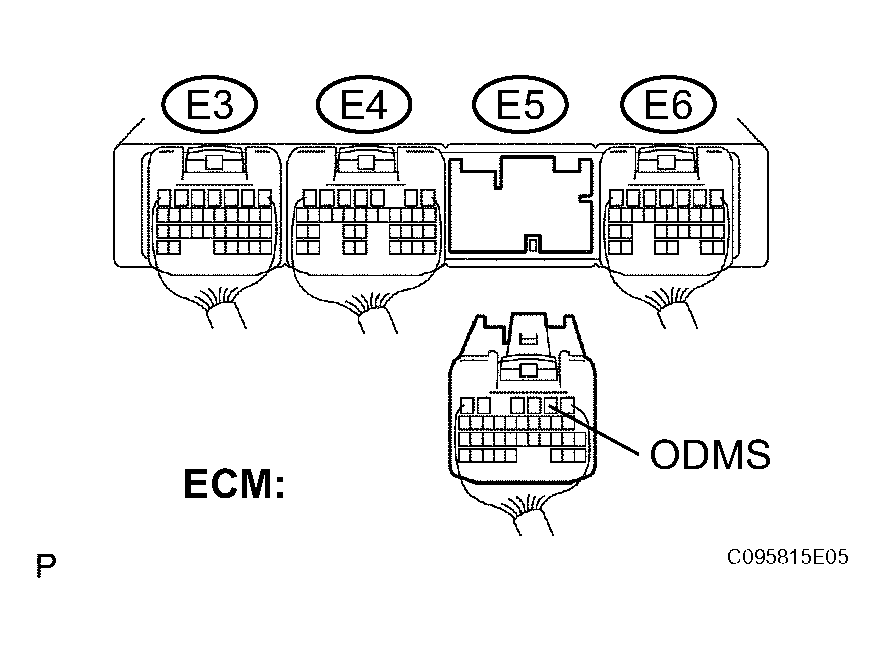

TESTER CONNECTION SPECIFIED CONDITION (3 OF 3)Switch Condition Tester Connection Specified Condition Press continuously transmission control switch E5-2 (ODMS) - Body ground Below 1 Release transmission control switch 10 k or higher
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
