System Diagram

The configuration of the electronic control system in the A246E automatic transaxles is as shown in the following chart.

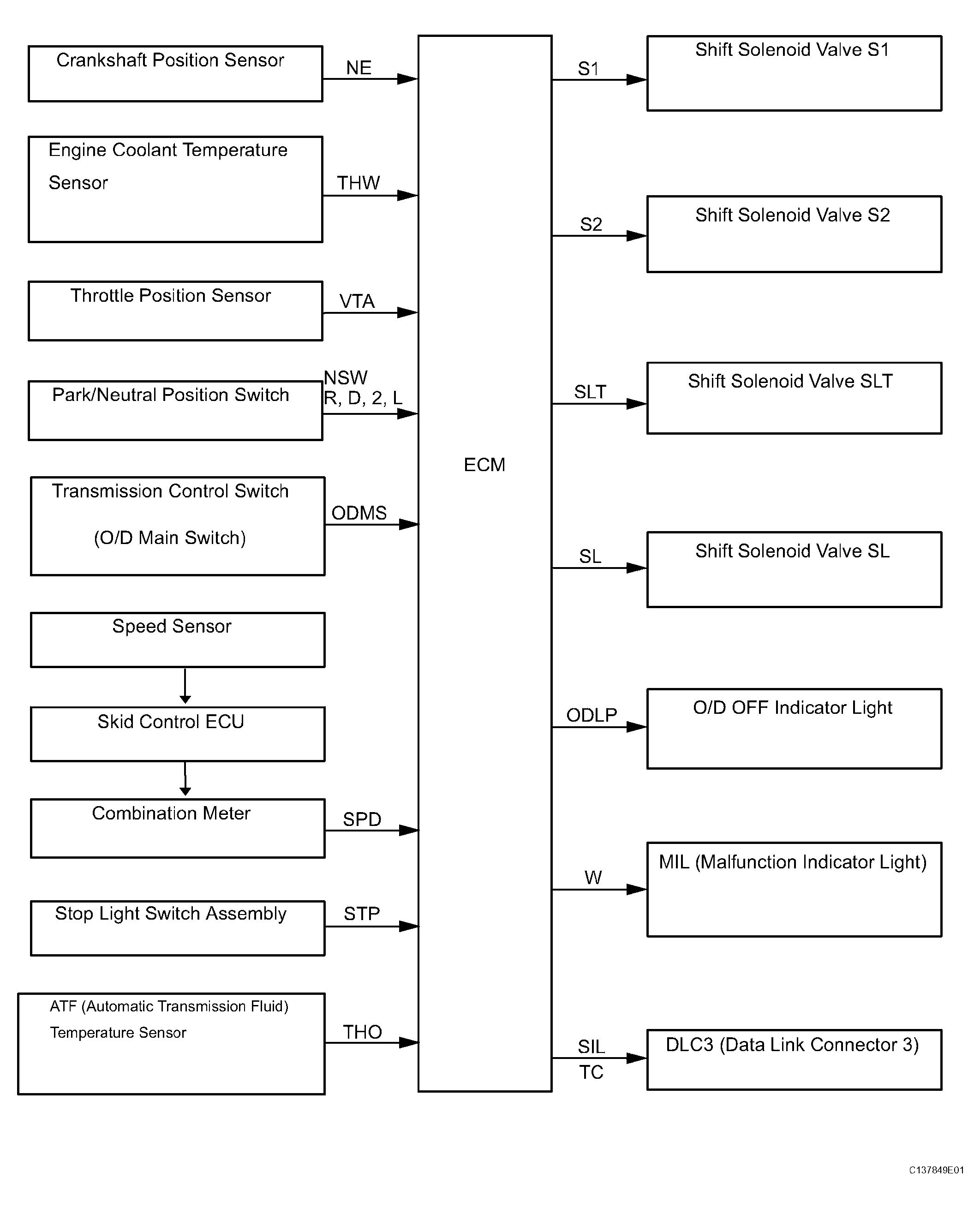

Fig 1: System Diagram Automatic Transaxle System
G04462599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
